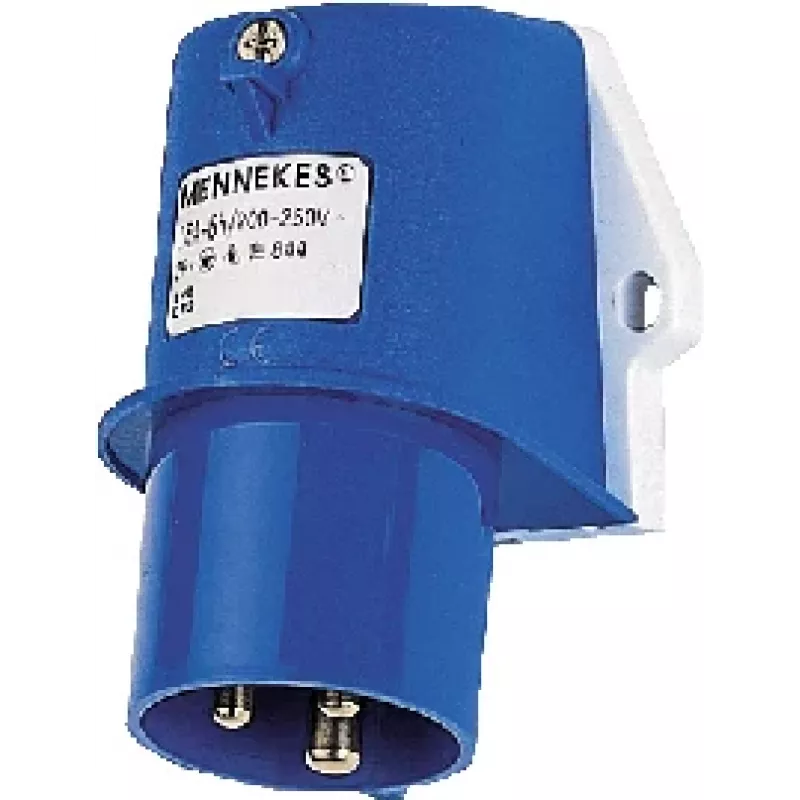

MENNEKES CEE ficha de parede 844 16A 3P 6h 230V IP44

The MENNEKES 844 is a wall-mounted CEE plug engineered for fixed installations where a reliable 16 A three-pole connection is required. Its 6h earth contact position and blue colour coding align with the 200–250 V standard, making it a straightforward choice for industrial and commercial power distribution.

Highlights

• Rated current: 16 A
• Rated voltage: 200–250 V
• 3 poles (2P+E) with 6h earth position
• IP44 protection against splashing water and solid objects >1 mm
• Surface-mounted with rear/gland cable entry
• Screw terminals for secure conductor connection
• Thermoplastic (polyamide) housing
• Complies with IEC 60309-1 and IEC 60309-2

In daily use

The plug's screw terminals accept solid or stranded conductors without special preparation, and the rear entry allows clean cable routing from behind the mounting surface. The polyamide housing withstands mechanical impact and is glow-wire tested at 850 °C. Operating temperature range is -25 °C to +40 °C, suitable for most indoor and sheltered outdoor locations.

Full specifications

• Frequency: 50/60 Hz
• Contact material: Brass
• Connection technology: Screw terminals
• Mounting type: Surface-mounted
• Cable entry: Rear/gland entry
• Glow wire test: 850 °C
• Operating temperature: -25 °C to +40 °C
• Protection against solid objects: >1 mm
• Protection against water: Splashing water from any direction

Final note

The MENNEKES 844 provides a dependable 16 A wall-mounted connection point for fixed equipment, with clear voltage identification and robust construction.
