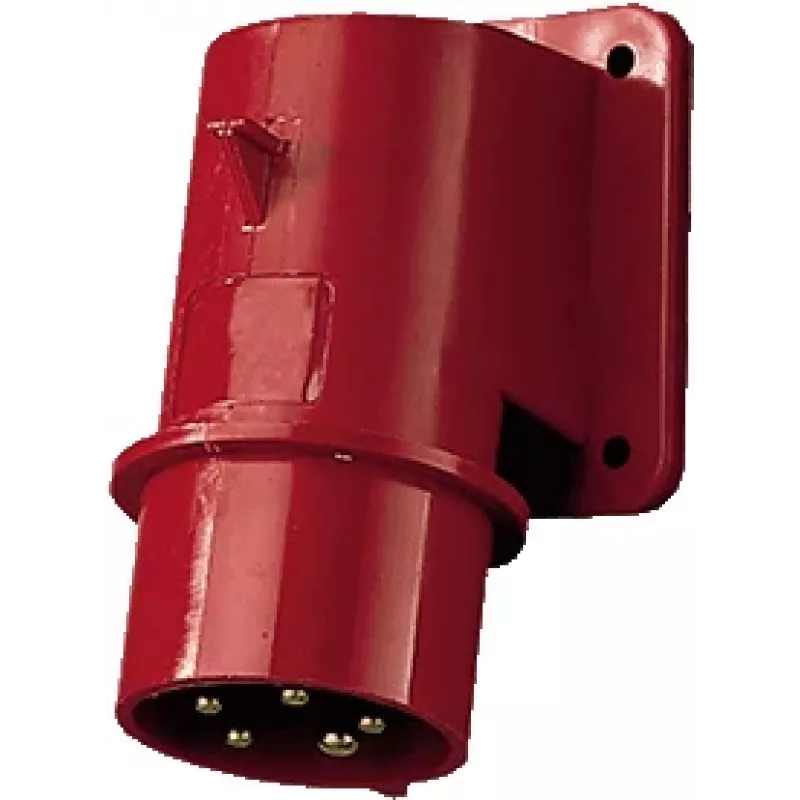

MENNEKES ficha CEE de embutir 16 A 5 polos 400 V 6h IP44 vermelho (379)

Industrial electricians and panel builders often need a reliable inlet for distributing three-phase power to machinery, generators, or temporary installations. The MENNEKES 379 is a CEE panel mount plug rated at 16 A, 5-pole, 400 V, with a 6h clock position. Its red housing and splash-proof IP44 design make it suitable for use in workshops, construction sites, and outdoor equipment where moisture resistance is required. The screw terminals accept conductors from 1.5 to 4 mm², allowing secure wiring in distribution boards or control cabinets.

Key specifications

• Connector type: CEE panel mount plug (inlet)
• Rated current: 16 A
• Number of poles: 5 (3P+N+PE)
• Rated voltage: 400 V (380–415 V)
• Frequency: 50/60 Hz
• IP rating: IP44 (splash-proof)
• Clock position: 6h
• Mounting type: Panel mount
• Connection technology: Screw terminals
• Housing material: Polyamide (PA6)
• Colour: Red
• Flange dimensions: 75 x 75 mm
• Mounting hole spacing: 60 x 60 mm
• Standards: IEC 60309-1, IEC 60309-2
• Contact material: Brass
• Terminal capacity: 1.5 – 4 mm²
• Operating temperature: -25 °C to +40 °C
• Glow wire test: 850 °C

Why choose it

The MENNEKES 379 delivers dependable power connectivity for demanding environments. Its robust polyamide housing withstands mechanical stress, while the IP44 rating protects against splashing water from any direction. The 6h clock position prevents mismating with connectors of different voltage or frequency, enhancing safety. Screw terminals provide a durable, maintenance-free connection.

Ideal use cases

• Panel-mounted power inlet for industrial machines
• Generator distribution boxes
• Temporary power distribution on construction sites
• Outdoor equipment requiring splash-proof connections

Good to know

The flange dimensions of 75 x 75 mm with 60 x 60 mm hole spacing allow easy integration into standard enclosures. The operating temperature range from -25 °C to +40 °C ensures reliable performance in various climates. The glow wire test at 850 °C indicates resistance to fire hazards.
