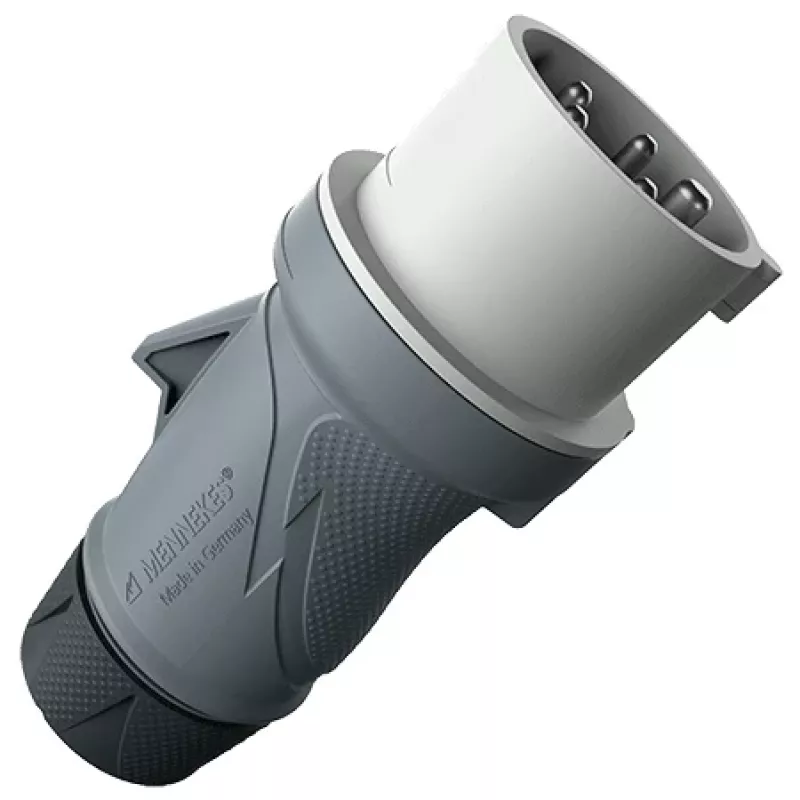

MENNEKES PowerTOP Xtra ficha CEE PTXR 32A 5p 500V 1h IP54 vermelho 13609

Industrial and commercial environments demand reliable power connections that can handle high currents and voltages while resisting dust and moisture. The MENNEKES PowerTOP Xtra CEE plug delivers a secure 32 A, 500 V connection with five poles (3P+N+PE) and an earth contact position at 1h, ensuring compatibility with standard CEE sockets. Its IP54 rating protects against dust ingress and water splashes, making it suitable for workshops, construction sites, and outdoor applications where robust performance is essential.

Who is it for

This plug is built for electricians, maintenance teams, and industrial users who need a durable, high-current connector for portable equipment, generators, or temporary power distribution. It is ideal for three-phase systems with neutral and earth, commonly found in European industrial settings.

Main features

• Rated for 32 A and 500 V, supporting heavy-duty loads.
• Five-pole configuration (3P+N+PE) with earth contact at 1h position.
• IP54 ingress protection: protected against dust and splashing water.
• Screw terminals for secure, maintenance-friendly wiring.
• Cable gland with strain relief accommodates cable diameters from 11 to 23 mm.
• Robust polyamide (PA6) housing in red for high visibility and durability.
• Nickel-plated brass contacts ensure low resistance and corrosion resistance.
• Operating temperature range from -25°C to +40°C for versatile use.

Specifications

• Product type: CEE plug
• Series: PowerTOP Xtra
• Current rating: 32 A
• Voltage rating: 500 V
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 1h
• Frequency: 50/60 Hz
• Connection technology: screw terminals
• Cable entry: gland with strain relief
• Cable diameter range: 11 - 23 mm
• Terminal cross-section: 2.5 - 10 mm²
• Housing material: polyamide (PA6)
• Contact material: brass, nickel-plated
• Colour: red
• Standards: IEC 60309-1, IEC 60309-2
• Glow wire test: 850 °C
• Mounting type: portable plug

Tips

Always match the plug's voltage, current, and earth contact position with the corresponding socket to ensure safe operation. Check the cable diameter before installation to ensure a proper seal in the gland and maintain the IP54 rating. For outdoor use, consider additional protection against direct heavy rain or submersion, as IP54 is splash-proof but not waterproof.
