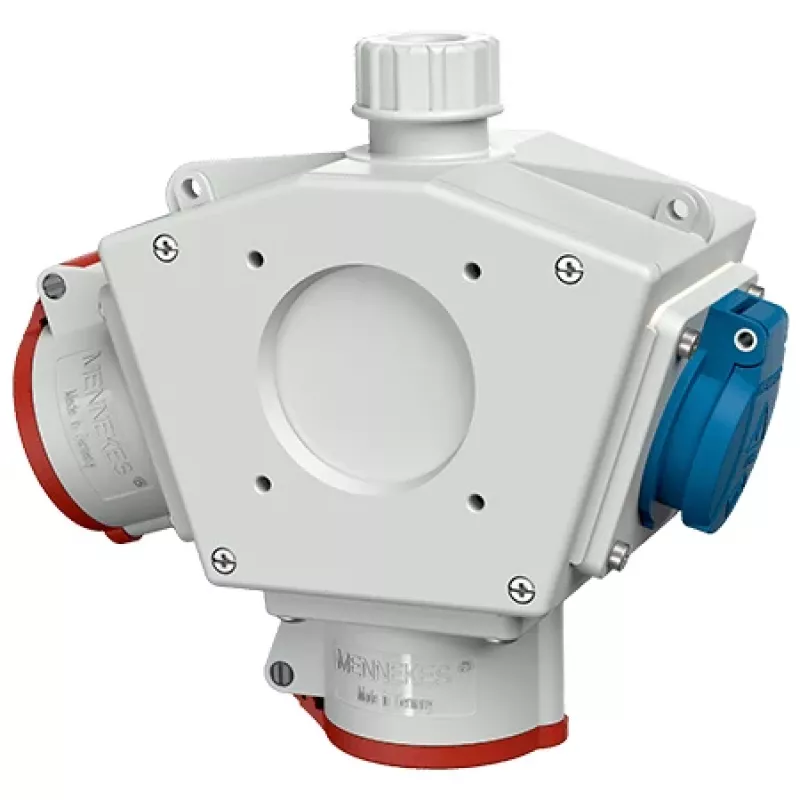

MENNEKES Standard-Delta-Box 92916 Delta Box, 1x CEE 16A 5 polos 400V, 2x Schuko 230V, IP44, cinzento

Wall-mounted socket combination boxes often lack the right mix of industrial and standard outlets, leaving workshops and commercial spaces with inconvenient power access. The MENNEKES Standard-Delta-Box 92916 solves this by combining one CEE 16A 5-pole 400V socket with two Schuko 230V sockets in a single splash-proof enclosure.

Who is it for

Electricians, facility managers, and workshop operators who need reliable, fixed power distribution for both three-phase equipment and standard single-phase tools.

Main features

• One CEE 16A, 5-pole, 400V (6h) socket for industrial machinery
• Two Schuko 16A, 2-pole+E, 230V sockets for standard power tools
• IP44 splash-proof rating for damp or dusty environments
• Robust PC/ABS blend housing in grey (RAL 7035)
• Unfused design with screw terminals for flexible circuit protection
• M25 cable gland entry for secure wiring

Specifications

• Rated current: 16 A
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Max conductor cross-section: 4 mm²
• Operating temperature: -25°C to +40°C
• Impact resistance: IK08
• Mounting type: Wall-mounted

Tips

Install this box at a convenient height near workstations to reduce cable runs. For circuits requiring individual protection, add appropriate MCBs or fuses upstream.
