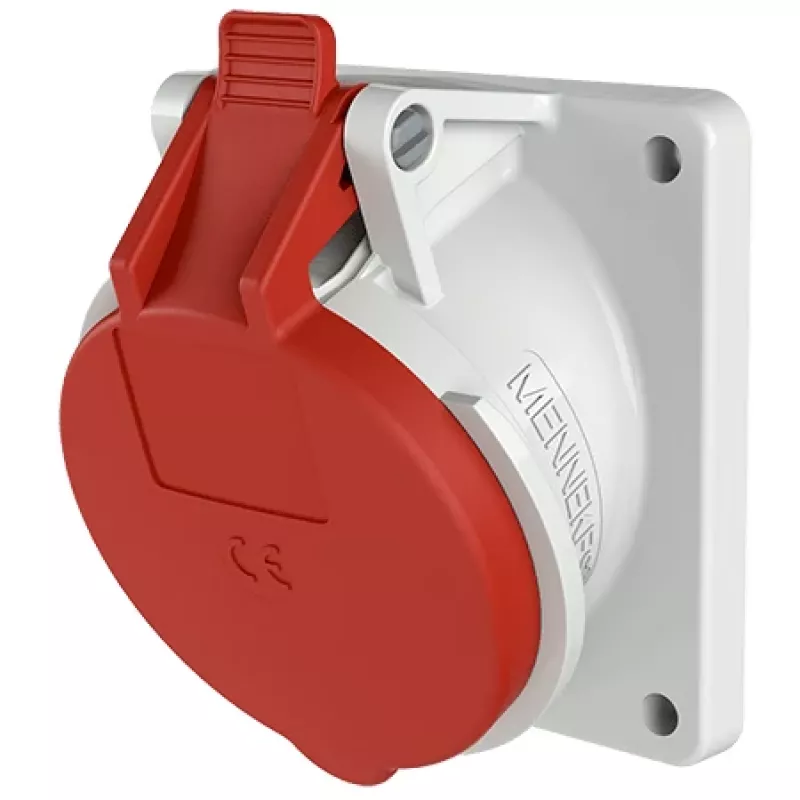

MENNEKES TwinCONTACT Tomada de sobrepor 32A 5 polos 400V 6h IP44 3171

Industrial and commercial electricians install the MENNEKES TwinCONTACT surface-mounted socket where a robust, weather-resistant 5-pole CEE connection is required. The 32 A, 400 V socket with 6h earth contact position serves three-phase equipment in workshops, construction sites, and outdoor installations, providing a secure power point for heavy-duty machinery.

Key specifications

• Rated current: 32 A
• Rated voltage: 400 V
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 6h
• Ingress protection: IP44
• Connection technology: TwinCONTACT screwless terminals
• Frequency: 50/60 Hz
• Housing material: Polyamide
• Colour: Light grey (RAL 7035)
• Mounting type: Surface mounting
• Terminal capacity (flexible conductor): 2.5 - 10 mm²
• Terminal capacity (rigid conductor): 2.5 - 10 mm²
• Operating temperature: -25°C to +40°C
• Contact material: Brass, nickel-plated
• Cable entry options: Top, bottom, rear
• Certification: VDE

Why choose it

The TwinCONTACT screwless terminal technology reduces wiring time and ensures vibration-resistant connections, making it ideal for environments where reliability is critical. The IP44 rating protects against splashing water and solid objects, while the robust polyamide housing withstands demanding conditions.

Ideal use cases

• Power distribution on construction sites
• Outdoor event power supply
• Workshop and industrial machinery connections
• Marina and agricultural applications

Good to know

The socket complies with IEC 60309 and is VDE certified. It can be mounted on walls or panels, with cable entry from top, bottom, or rear for flexible installation.
