Mesa digitalizadora Huion Kamvas 16 GEN 3 GS1563 16 polegadas 1920x1080

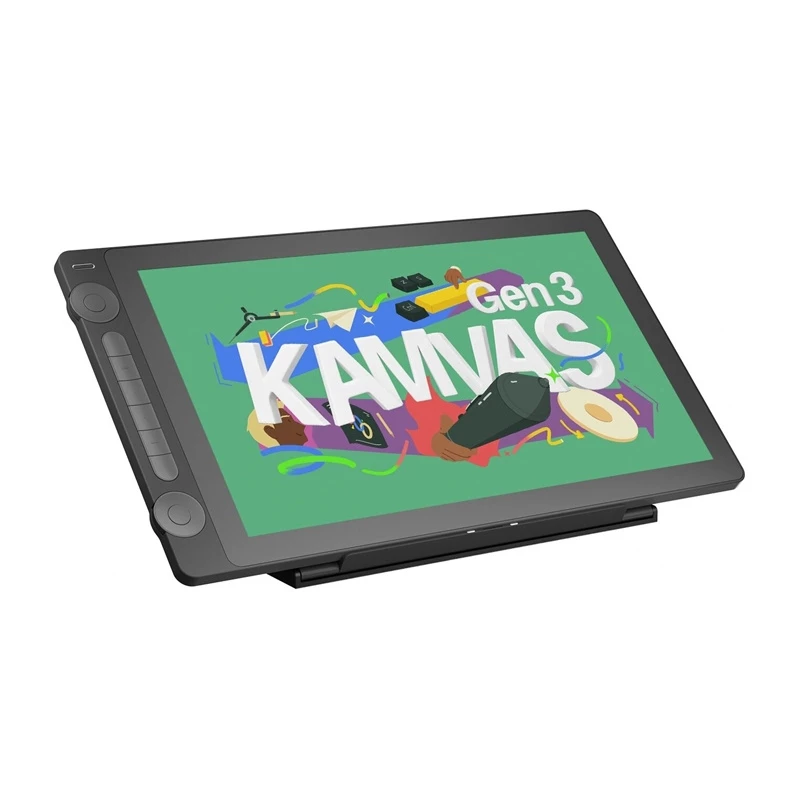

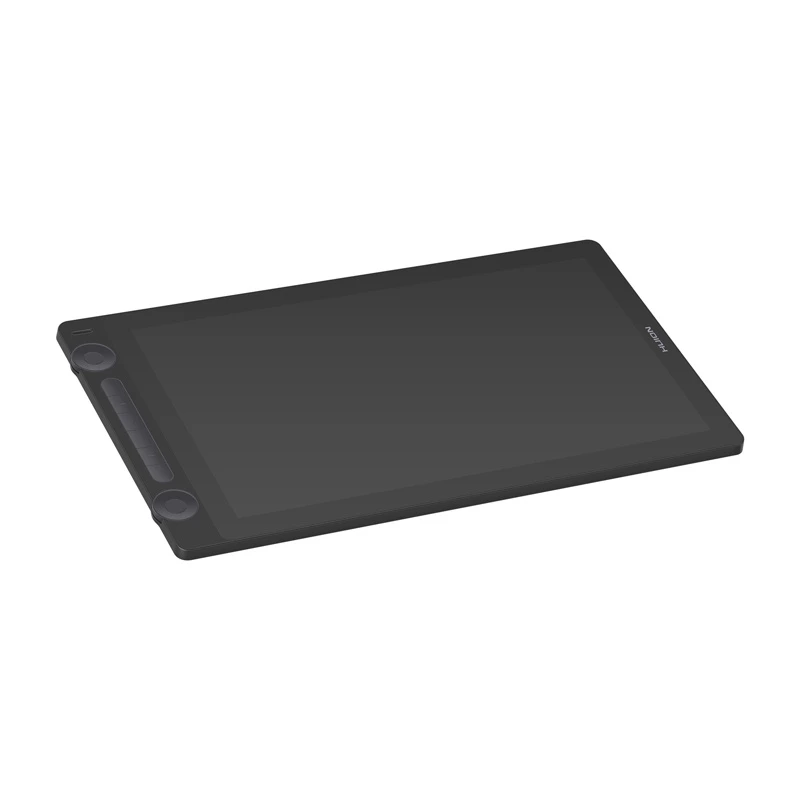

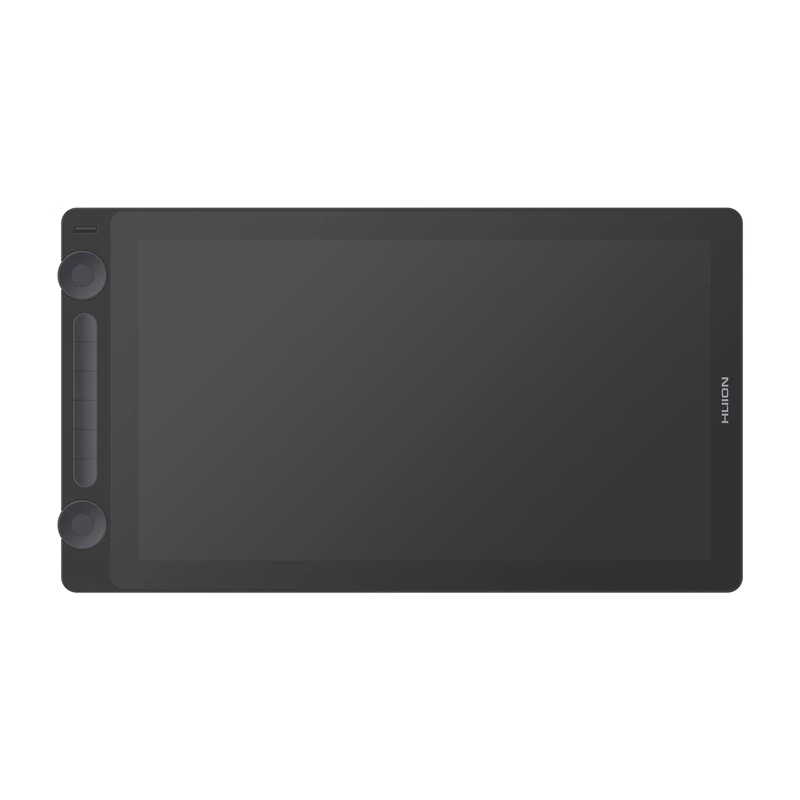

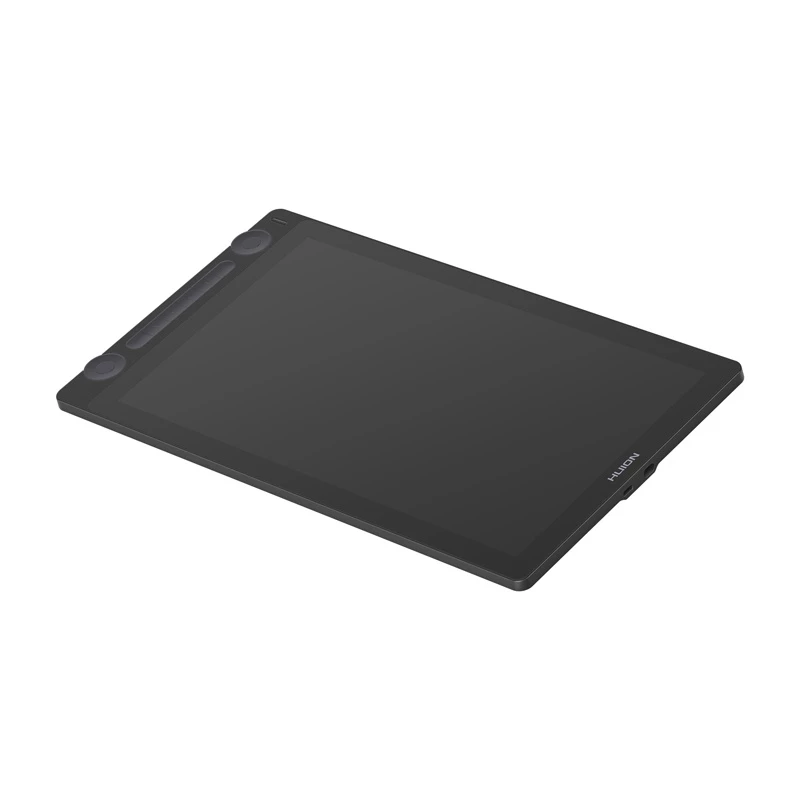

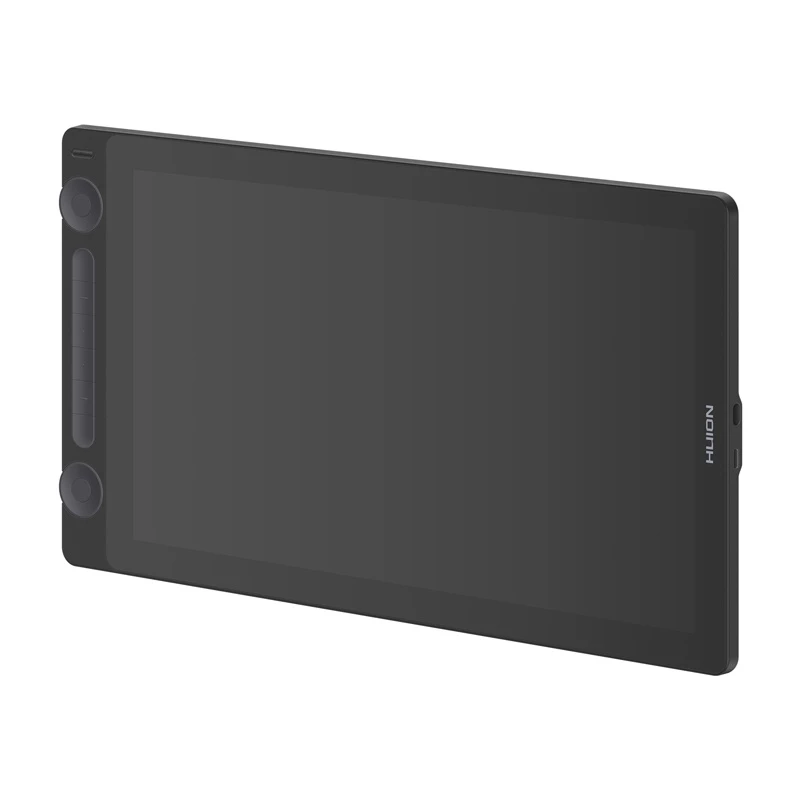

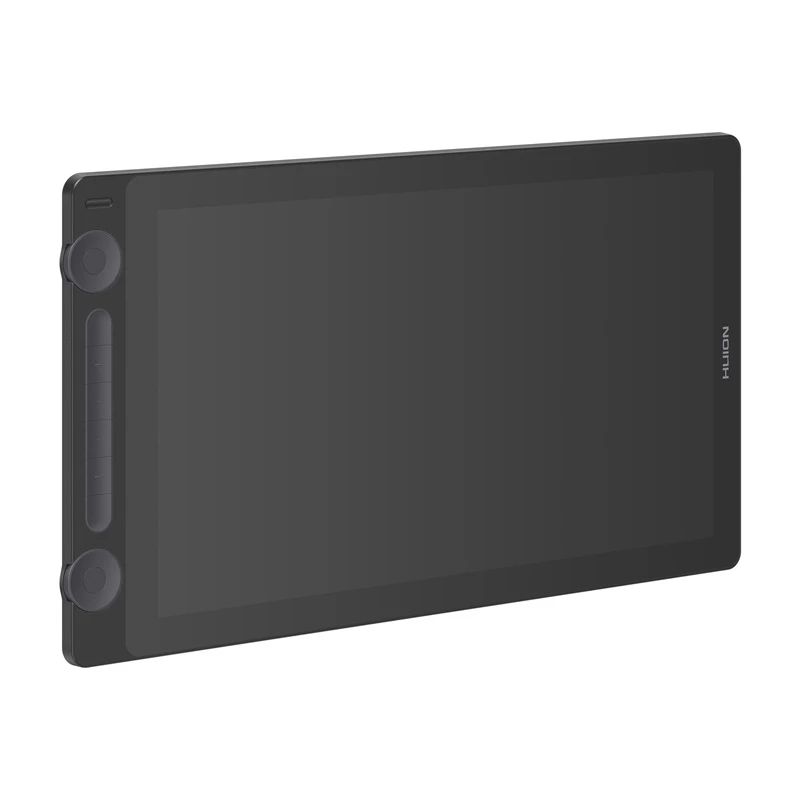

Huion Kamvas 16 (Gen 3) GS1563 graphics tablet with a 15.8-inch 2.5K QHD display is designed for professional illustrators, animators and concept artists. The matte Canvas Glass surface provides a paper-like feel while PenTech 4.0 PW600L stylus delivers high sensitivity and precise control. The device includes dual dials and six programmable buttons for streamlined workflow and supports both display (on-screen preview) and tablet modes for flexible usage.

Advantages

The Kamvas 16 (Gen 3) offers a high-resolution 2560 × 1440 QHD screen with wide color coverage (up to 99% sRGB, 90% Adobe RGB and 99% Rec.709) and factory calibration (ΔE < 1.5). PenTech 4.0 technology provides 16,384 pressure levels, 5080 LPI resolution, tilt support up to ±60° and low activation force for natural strokes. The fully laminated, matte Canvas Glass with Low Sparkle coating reduces glare and simulates paper texture. Two functional dials and six quiet shortcut buttons improve efficiency, and multiple connection options (full-feature USB-C and 3-in-1 connector) ensure stable connectivity with PCs, laptops and compatible Android devices.

Key specifications

• Model: GS1563
• Screen size: 15.8" (350 × 197 mm working area)
• Resolution: 2560 × 1440 (QHD), 186 PPI
• Panel: IPS, full lamination, 2nd-gen anti-reflective AG Canvas Glass
• Color: 16.7 million (8-bit); color gamut: up to 120% sRGB (typ.), 99% sRGB / 90% Adobe RGB / 99% Rec.709
• Brightness: 220 cd/m²; Contrast ratio: 1000:1; Response time: 14 ms
• Stylus: PW600L (PenTech 4.0), battery-free EMR, 5080 LPI, 16,384 pressure levels, tilt ±60°, reporting speed >260 PPS
• Controls: 6 programmable buttons, 2 functional dials, 2 function switch buttons
• Interfaces: full-function USB-C, 3-in-1 connector (supports USB 3.1 + DP 1.2)
• Dimensions: 421.2 × 236.81 × 12.62 mm; Net weight: 1.245 kg
• Power: AC 100–240 V 50/60 Hz input; Output 5 V 3 A; Power consumption ≤7 W
• Operating environment: 0–40°C, 20–80% RH; Storage: −20–60°C, 10–90% RH
• OS compatibility: Windows 7+/Windows 10+, macOS 10.12+, Linux (Ubuntu 20.04 LTS), Android (USB 3.1 + DP 1.2)
• Included accessories: PW600L stylus, PH06 holder, 10 PN06 nibs, 3-in-1 cable (1.8 m), USB power cable, USB-C to USB-C cable, USB-A extension (1.2 m), power adapter, ST300 stand (optional), cleaning cloth, glove, user manual

How to use

Connect the tablet to a compatible computer, laptop or Android device using the full-featured USB-C port or the 3-in-1 cable according to your device requirements. Install the latest Huion driver for your operating system, then calibrate the display if necessary using the factory calibration report as a reference. Choose pen display mode for on-screen preview or pen tablet mode to work without preview. Assign functions to the six buttons and two dials in the driver settings to match your workflow. Use the PW600L stylus with adjustable maximum pressure (200–500 g) and tilt support for natural brush and pencil effects.

Recommendations

For accurate color work, use the included factory calibration report and, if required, perform additional calibration with a colorimeter. Keep the Canvas Glass clean with the supplied cloth and use the glove to reduce friction. Use the optional ST300 stand for an ergonomic drawing angle and ensure USB 3.1 + DP 1.2 support on Android devices for full functionality.
