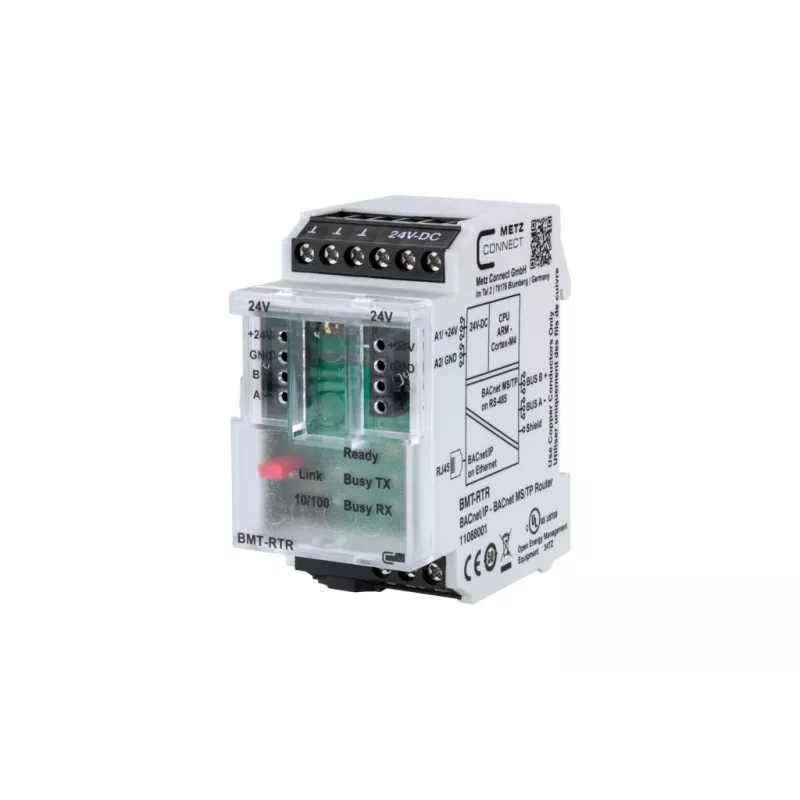

METZ 11088001 Router BMT-RTR BACnet

Connect BACnet MS/TP field devices to a BACnet/IP network with the METZ BMT-RTR router. It supports up to 64 MS/TP devices and offers galvanic isolation between Ethernet and RS485 for reliable operation.

Overview

The METZ BMT-RTR is a BACnet router that bridges BACnet MS/TP and BACnet/IP networks. It features one 10/100Base-T Ethernet port and one RS485 serial port for MS/TP communication. The device supports MS/TP baud rates from 9.6 to 115.2 kbit/s and can handle up to 64 MS/TP devices. Configuration is done via a web interface or DIP switches, and status is indicated by LEDs for power, Ethernet link/activity, and MS/TP activity.

What stands out

• Galvanic isolation between Ethernet and RS485
• Supports up to 64 MS/TP devices
• Wide operating temperature range: -20°C to +60°C
• DIN rail mounting for easy installation

Technical details

• Product Type: BACnet Router
• Network Protocols: BACnet/IP, BACnet MS/TP
• Ethernet Port: 1x 10/100Base-T (RJ45)
• Serial Port: 1x RS485 (for MS/TP)
• MS/TP Baud Rates: 9.6, 19.2, 38.4, 76.8, 115.2 kbit/s
• Max MS/TP Devices: 64
• Power Supply: 12-24 V AC/DC
• Power Consumption: Max. 2.5 W
• Mounting Type: DIN rail (TS35)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +70°C
• Relative Humidity: 5-95% (non-condensing)
• Housing Material: Plastic
• Protection Class: IP20
• Configuration Interface: Web interface, DIP switches
• LED Indicators: Power, Ethernet Link/Activity, MS/TP Activity
• Isolation: Galvanic isolation between Ethernet and RS485

Our verdict

A reliable BACnet router for integrating MS/TP devices into IP-based building automation systems, with robust isolation and a wide temperature range.
