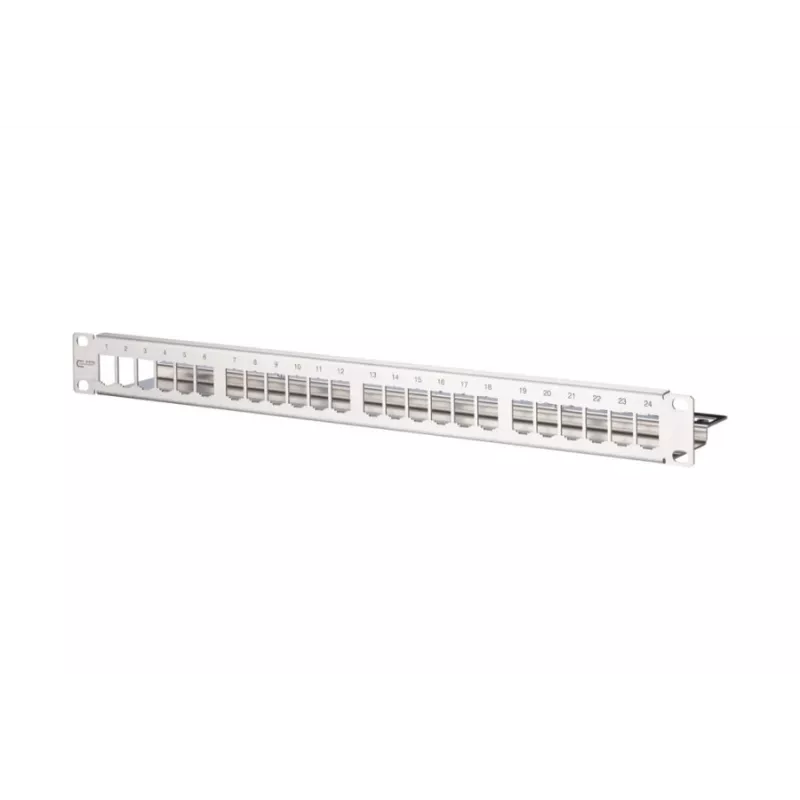

METZ CONNECT 130921-00-E Painel de ligação 1U 24 portas blindado, Cat.6A, cinzento claro 130921-00-E-90

For high-density copper networks where performance cannot be compromised, the METZ CONNECT 130921-00-E delivers a 24-port Cat.6A shielded patch panel in a slim 1U form factor. Unlike unloaded panels that demand separate module purchases, this unit arrives as a complete, ready-to-populate solution with integrated LSA termination blocks and a robust steel housing. It supports 10 Gigabit Ethernet and all current PoE standards, making it a future-proof backbone for enterprise and industrial installations.

Highlights

• 24 shielded RJ45 ports in 1U rack space for maximum density
• Cat.6A / Class EA performance up to 500 MHz, 10GBASE-T ready
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) without degradation
• Tool-free LSA (IDC) termination for fast, reliable installation
• Integrated grounding connection and gold-plated contacts for long-term signal integrity
• Robust powder-coated steel housing in light grey (RAL 7035)

In daily use

Installation is straightforward: mount the panel in any standard 19-inch rack, route cables from the rear, and punch down conductors using a standard LSA tool. The rear cable entry keeps the front clean and accessible for patching. The shielded design ensures excellent alien crosstalk resistance, even in bundles with high PoE loads. With an operating temperature range from -40 to +70 °C, this panel is suitable for both climate-controlled data centers and harsh industrial environments.

Full specifications

• Rack units: 1U
• Number of ports: 24
• Connector type: RJ45, shielded
• Category: Cat.6A (Class EA)
• Transmission speed: 10 Gigabit Ethernet
• Mounting: 19-inch rack
• Termination: LSA (IDC)
• Housing material: Steel sheet, powder-coated
• Colour: Light grey (RAL 7035)
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Operating temperature: -40 to +70 °C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568.2-D
• Grounding: Integrated grounding connection
• Cable entry: Rear
• Contact material: Gold-plated
• Mating cycles: >750
• Supported wire gauges: AWG 24/1 - 22/1 (solid), AWG 26/7 - 22/7 (stranded)

Final note

METZ CONNECT's 130921-00-E combines high port density, Cat.6A performance, and full PoE readiness in a durable, easy-to-install panel. It is an excellent choice for structured cabling projects where reliability and future upgradability are paramount.
