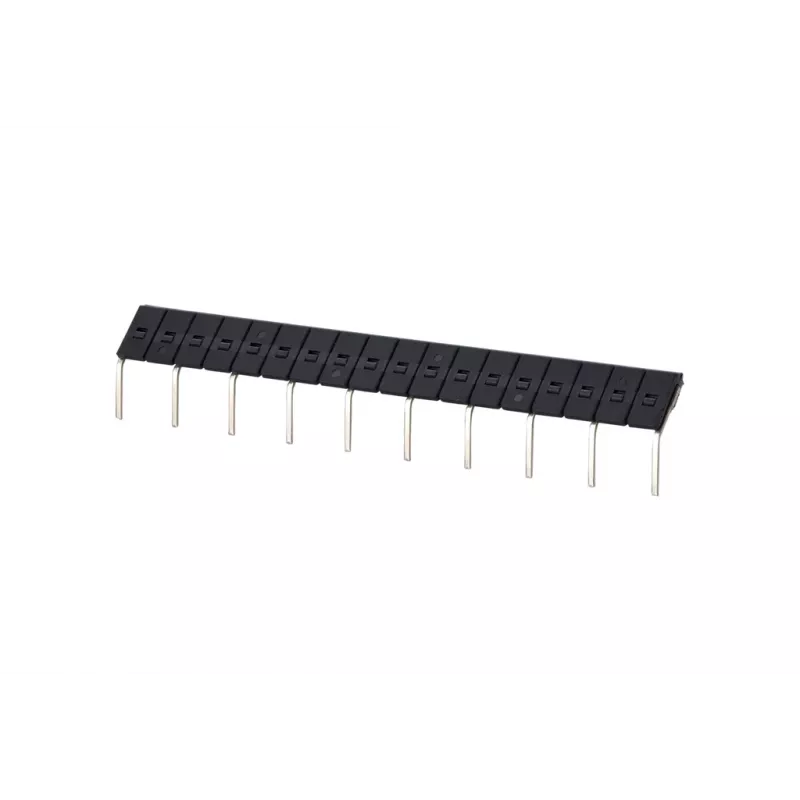

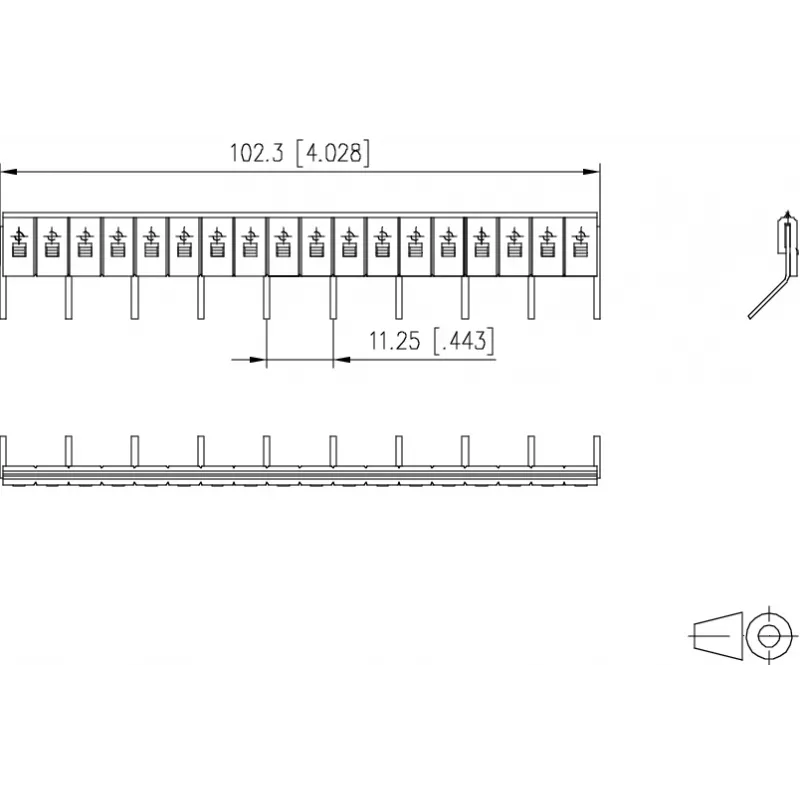

METZ CONNECT 850349-02 Bloco de terminais seccionável - 1 polo, ligação por parafuso, calha DIN, preto, IP20

The METZ CONNECT 850349-02 is a high-quality disconnect terminal block designed for reliable electrical connections in industrial and commercial applications. This 1-pole terminal block features a robust screw connection technology and is engineered for easy mounting on DIN rail (TS 35). Its compact design and black polyamide housing ensure durability and a professional appearance.

Advantages

This disconnect terminal block offers several key benefits: secure screw connections for solid and stranded conductors, a wide operating temperature range from -40 °C to +105 °C, and a high flammability rating of UL 94 V-0 for enhanced safety. The IP20 protection rating provides basic protection against touch and solid objects, making it suitable for use in control cabinets and junction boxes.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution units
• Electrical installations requiring reliable disconnect functionality

Key specifications

• Product Type: Disconnect Terminal Block
• Number of Poles: 1-pole
• Connection Technology: Screw Connection
• Mounting Type: DIN Rail (TS 35)
• Color: Black
• IP Protection Rating: IP20
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Rated Voltage (UL): 600 V
• Rated Current (UL): 20 A
• Conductor Cross-section (Solid): 0.2 - 4 mm²
• Conductor Cross-section (Stranded): 0.2 - 4 mm²
• Conductor Cross-section (AWG): 24 - 12 AWG
• Housing Material: Polyamide (PA)
• Operating Temperature: -40 °C to +105 °C
• Flammability Rating: UL 94 V-0
• Stripping Length: 9 mm
• Torque: 0.5 - 0.6 Nm

Recommendations

For optimal performance, use with appropriate DIN rail accessories and ensure proper torque settings during installation. This terminal block is ideal for applications requiring a compact and reliable disconnect solution.
