METZ CONNECT Ficha SC/UPC (macho) OS2 monomodo, caixa bege, proteção anti-dobra azul, pack de 20

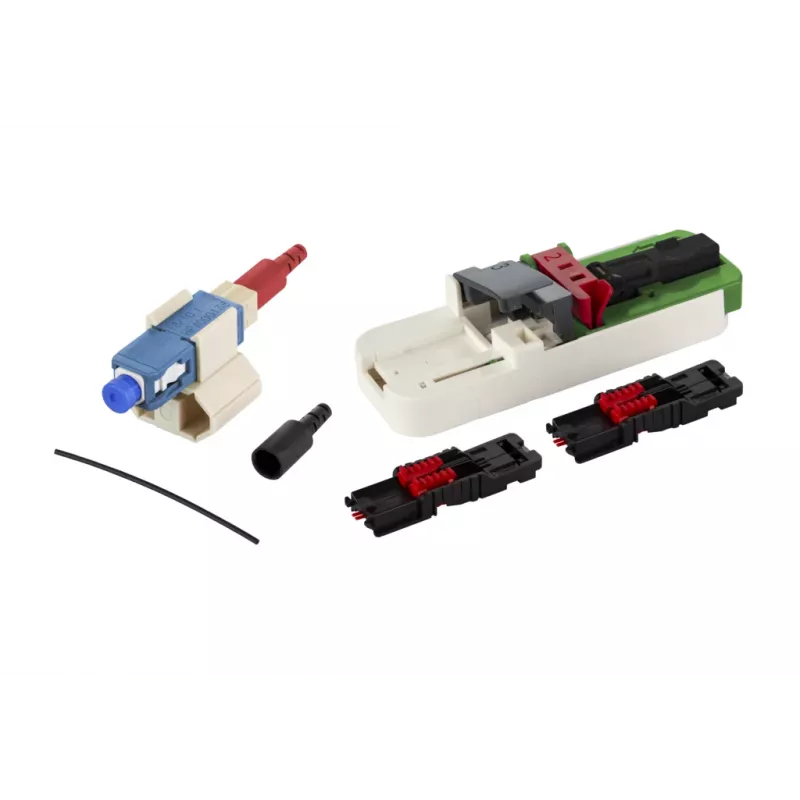

The METZ CONNECT 1509QAEO002C-E is a high-quality SC/UPC male connector designed for single-mode OS2 fiber optic networks. This connector features a beige housing and blue boot, with a zirconia ceramic ferrule for low insertion loss and high return loss. Ideal for patch panels, distribution frames, and field termination, it supports cables of 0.9mm, 2.0mm, and 3.0mm diameters. The pack contains 20 pieces, making it suitable for bulk installations.

Advantages

This connector offers reliable performance with typical insertion loss ≤0.2 dB and return loss ≥50 dB. The zirconia ceramic ferrule ensures durability over 500 mating cycles. It operates in a wide temperature range from -40°C to +85°C, making it suitable for various environments. Compliance with RoHS and REACH standards ensures environmental safety.

Suitable for

• Patch panels and distribution frames
• Field termination of single-mode fiber cables
• Data centers and telecommunications networks
• FTTx and LAN installations

Key specifications

• Connector Type: SC
• Ferrule Polish: UPC (Ultra Physical Contact)
• Fiber Mode: Single-mode (OS2)
• Connector Gender: Male
• Pack Quantity: 20 pieces
• Housing Color: Beige
• Boot Color: Blue
• Ferrule Material: Zirconia Ceramic
• Ferrule Diameter: 2.5 mm
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 50 dB
• Durability: > 500 mating cycles
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
• Cable Compatibility: 0.9mm, 2.0mm, 3.0mm
• Compliance: RoHS, REACH
• Mounting Type: Cable Mount

Recommendations

For optimal performance, use with OS2 single-mode fiber cables and ensure proper cleaning before termination. This connector is ideal for high-speed data transmission in enterprise and carrier networks.
