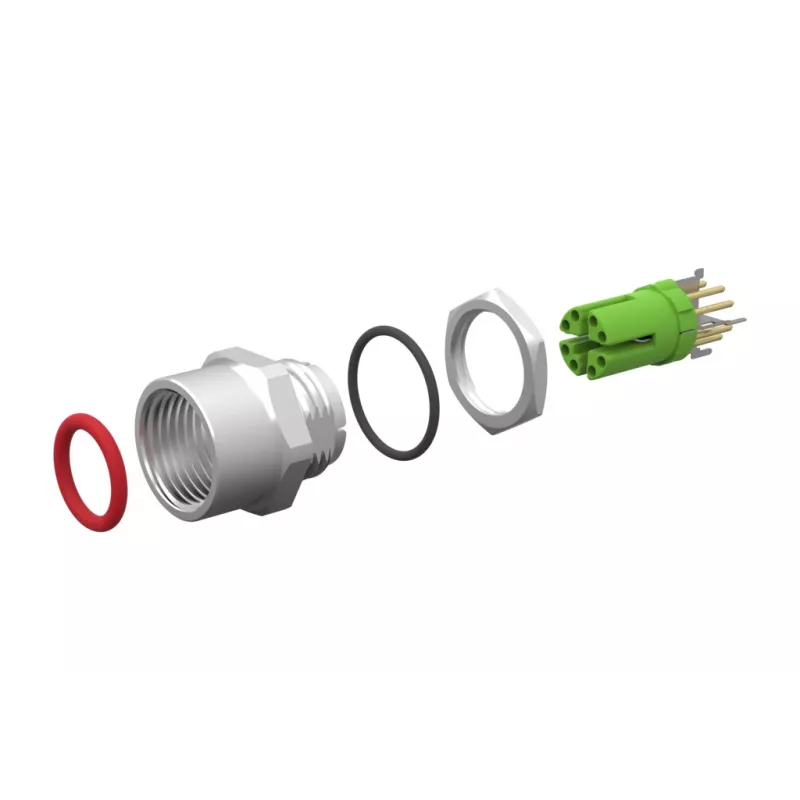

METZ CONNECT MMT361A315-0001 Conector fêmea para placa de circuito impresso M12, codificação X, 8 polos, IP67, em peças individuais

Establishing reliable board-level connections in compact electronic assemblies often poses a challenge, especially when space is limited and high current carrying capacity is required. The METZCONNECT MMT361A315-0001 PCB socket solves this by offering a robust 8-pole female connector with a 3.5 mm pitch, designed for surface-mount soldering directly onto printed circuit boards. Its straight orientation and single-row layout make it ideal for dense PCB designs in industrial control, automation, and communication equipment.

Who is it for

This connector is intended for electronics engineers, PCB designers, and manufacturers who need a dependable board-mounted socket for wire-to-board or board-to-board connections. It suits applications in industrial automation, building technology, measurement instruments, and any system requiring a compact, high-current, 8-position interface.

Main features

• 8-pole female socket with 3.5 mm pitch for compact signal and power connections
• Surface-mount technology (SMT) for automated assembly and space-saving PCB layout
• Rated current up to 8 A and voltage up to 160 V for demanding applications
• High insulation resistance (>10^9 Ω) ensures signal integrity and safety
• Copper alloy contacts with tin plating for reliable conductivity and corrosion resistance
• Polyamide housing with UL94 V-0 flammability rating for enhanced fire safety
• Wide operating temperature range from -40 °C to +105 °C for harsh environments
• Straight orientation and single-row design for easy PCB routing

Specifications

• Brand: METZCONNECT
• Model: MMT361A315-0001
• Connector type: PCB socket (female)
• Number of poles: 8
• Pitch: 3.5 mm
• Mounting type: SMT (surface mount)
• Connection type: Solder
• Rated current: 8 A
• Rated voltage: 160 V
• Insulation resistance: >10^9 Ω
• Contact material: Copper alloy
• Contact surface: Tin (Sn)
• Housing material: Polyamide (PA)
• Flammability rating: UL94 V-0
• Operating temperature: -40 °C to +105 °C
• Color: Black
• Orientation: Straight
• Number of rows: 1
• Series: MMT361A315

Tips

When soldering this SMT socket, ensure the PCB pads match the 3.5 mm pitch and use a reflow profile compatible with the polyamide housing. For high-vibration environments, consider additional mechanical fixation or adhesive. Pair with a compatible 8-pole plug from the same series for a complete connection system.
