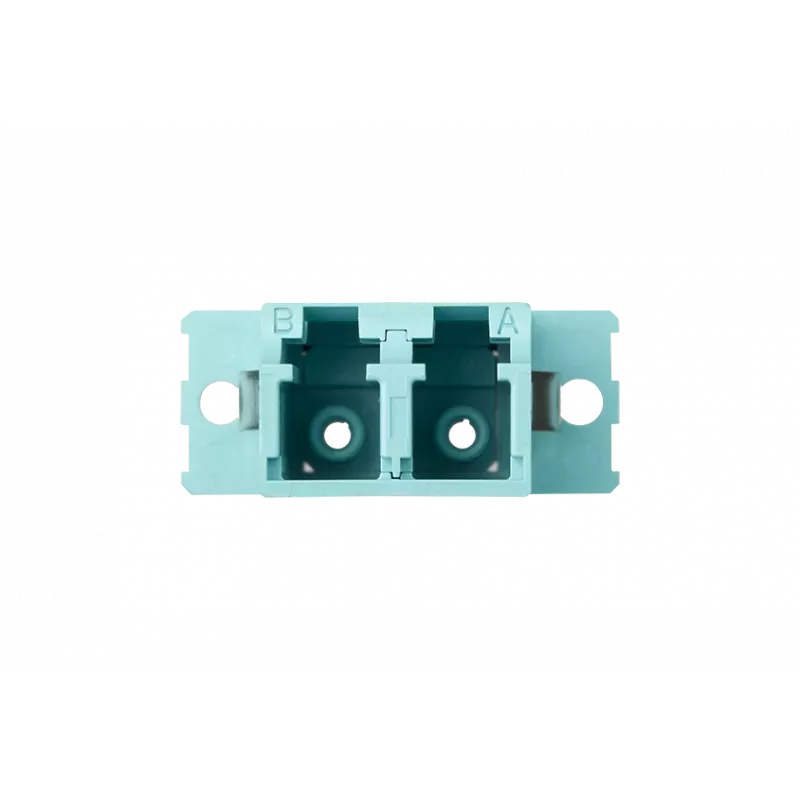

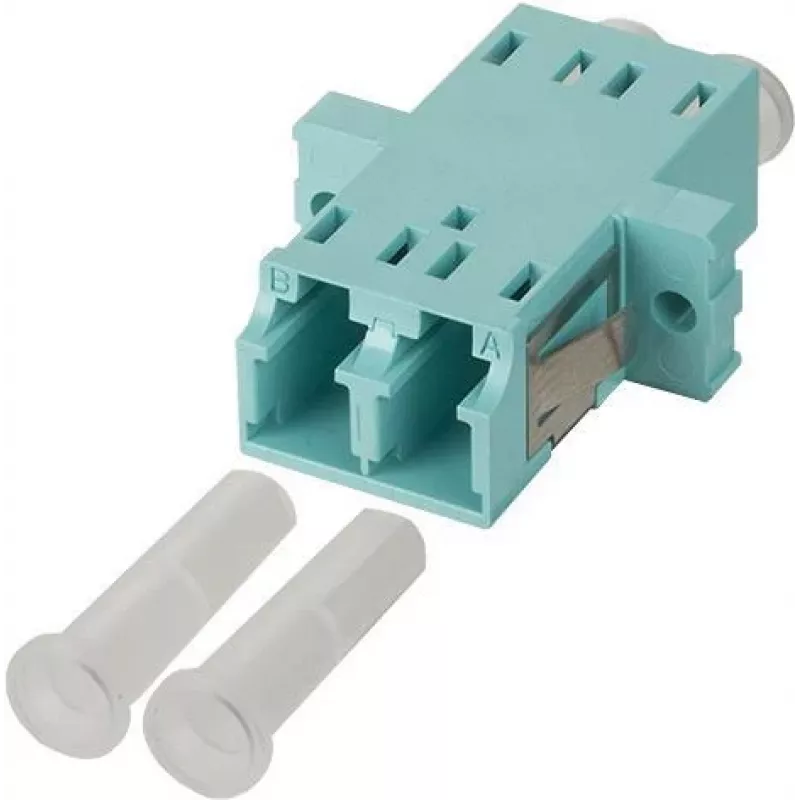

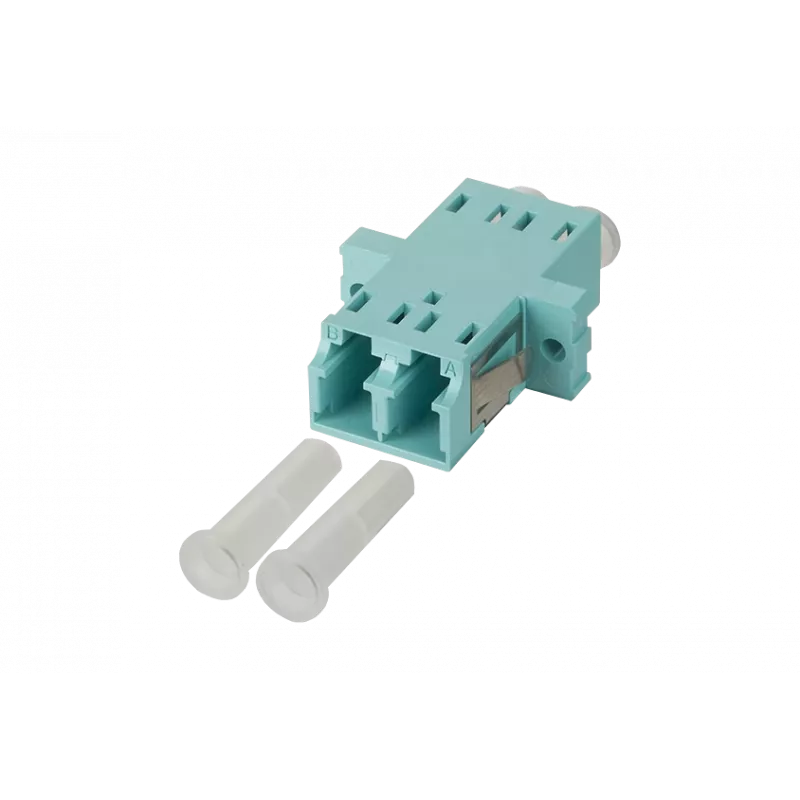

METZ CONNECT OpDAT conector de fibra ótica LC/SC cor aqua (15090077-I)

Connecting LC duplex to SC duplex fiber optic patch cords can be a challenge when you need a reliable, low-loss interface. The METZ CONNECT OpDAT LC/SC Aqua Colour Fiber Optic Connector solves this by providing a hybrid adapter that bridges LC and SC connectors in a single snap-in unit. Its aqua housing clearly identifies it for multimode OM3/OM4 applications, ensuring proper network performance.

Who is it for

This adapter is for network technicians and data center managers who need to interconnect LC and SC multimode fiber links. It is ideal for patching between different connector types in structured cabling systems, fiber distribution frames, and wall outlets.

Main features

• Hybrid design: LC duplex on one side, SC duplex on the other.
• Multimode compatibility: supports OM3 and OM4 fibers.
• Aqua colour for quick identification of multimode OM3/OM4.
• Zirconia ceramic sleeves for precise alignment and low insertion loss.
• Snap-in mounting for easy installation in panels and faceplates.

Specifications

• Connector 1: LC Duplex
• Connector 2: SC Duplex
• Fibre Mode: Multimode
• Fibre Type & Grade: OM3, OM4
• Product Colour: Aqua
• Sleeve Material: Zirconia Ceramic
• Housing Material: Plastic (PBT, UL94 V-0)
• Insertion Loss (Typical): < 0.2 dB
• Return Loss (Typical): > 30 dB
• Durability (Mating Cycles): > 500
• Operating Temperature: -20°C to +70°C

Tips

Ensure that the fiber type (OM3/OM4) matches the patch cords you are connecting. The aqua colour is standard for OM3/OM4, but always verify compatibility with your existing infrastructure.
