METZ CONNECT Painel de patch de fusão de fibra ótica 12x LC-Duplex OS2 monomodo, 1U, cinzento-claro 1504697412-F

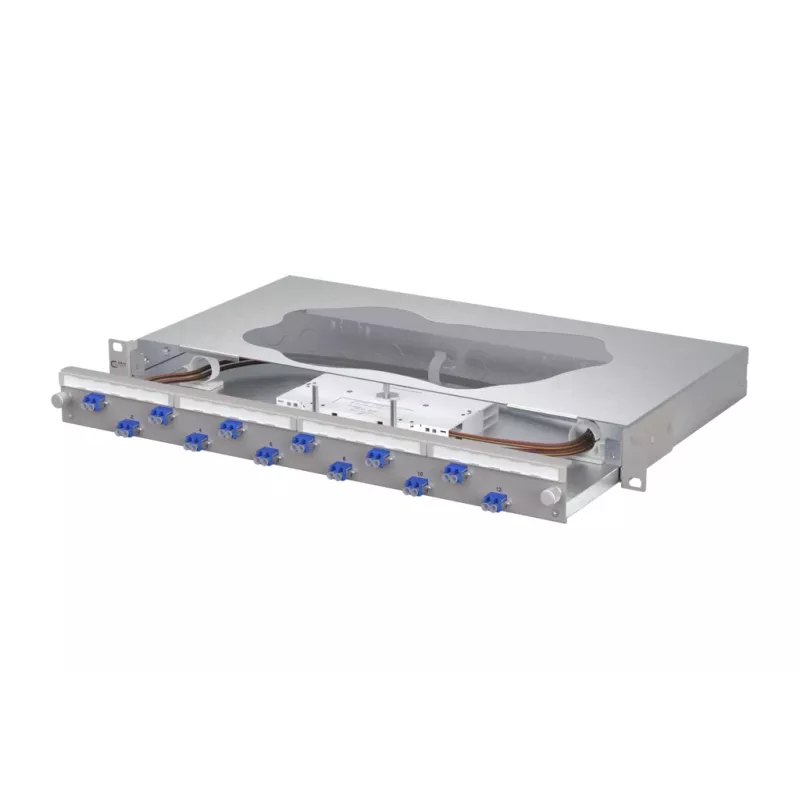

Managing high-density fiber connections in data centers and enterprise networks can be a challenge. This METZ CONNECT splice patch panel simplifies the task by combining splicing and distribution in a single 1U rack-mount unit. It accommodates up to 24 fibers with 12 LC-Duplex ports, making it ideal for structured cabling projects that demand reliability and ease of maintenance.

Who is it for

Network administrators, data center technicians, and system integrators who need a robust, space-efficient solution for terminating and managing singlemode fiber connections. It is particularly suited for environments where OS2 fiber is deployed and where rack space is at a premium.

Main features

• 12 LC-Duplex ports for up to 24 fibers (singlemode OS2)
• 19-inch rack mountable, 1U height
• Integrated splice tray with capacity for up to 24 splices
• Powder-coated steel housing in light grey (RAL 7035)
• Rear cable entry with strain relief and bend radius control
• Compliant with RoHS and REACH

Specifications

• Product type: Fiber optic splice patch panel
• Fiber type: Singlemode OS2
• Number of ports: 12x LC-Duplex
• Maximum fibers: 24
• Mounting: 19-inch rack, 1U
• Housing material: Powder-coated steel
• Colour: Light grey (RAL 7035)
• Splice capacity: Up to 24 splices
• Operating temperature: -10°C to +60°C
• Storage temperature: -25°C to +70°C
• Protection class: IP20
• Compliance: RoHS, REACH

Tips

For best performance, use only OS2-compatible singlemode fibers and LC connectors. Ensure proper bend radius management when routing cables into the panel to maintain signal integrity. The panel's rear cable entry allows for flexible installation in various rack configurations.
