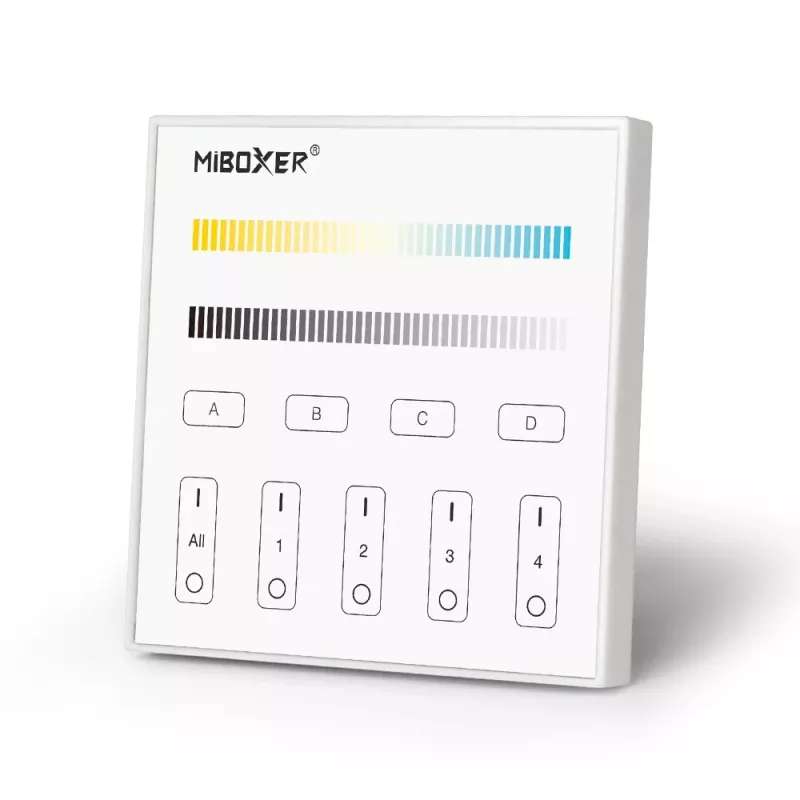

Miboxer LED Smart DALI Painel tátil de temperatura de cor DT8 (DP2S)

Control DALI DT8 colour temperature and brightness with a capacitive touch panel that draws less than 6 mA from the DALI bus. The DP2S offers 0.1%–100% dimming and scene recall in a tempered-glass flush-mount design.

Overview

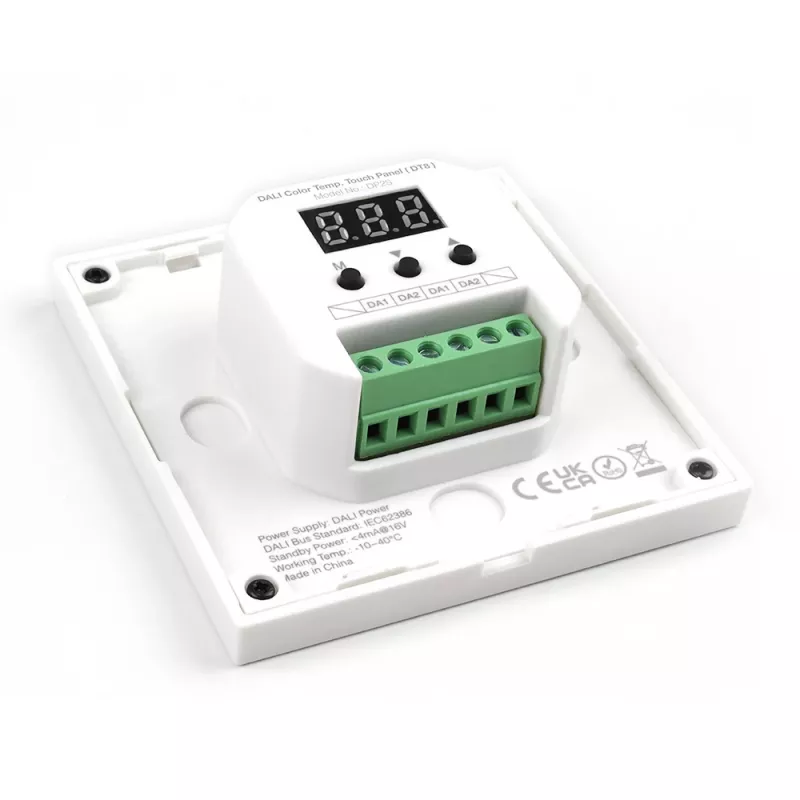

The Miboxer DP2S is a DALI DT8 touch panel for tunable-white LED lighting. It operates as a single DALI group or address, powered directly from the bus, and mounts into a standard 86-type wall box. The capacitive glass surface provides tactile feedback with an LED indicator.

What stands out

• DALI DT8 protocol for colour temperature and brightness control
• Capacitive touch panel with tempered glass front
• Bus-powered with under 6 mA current draw
• 0.1%–100% dimming range
• Scene recall function

Technical details

• Control protocol: DALI (IEC 62386)
• Device type: DT8 (colour temperature)
• User interface: capacitive touch
• Power: DALI bus powered, <6 mA
• Dimming range: 0.1%–100%

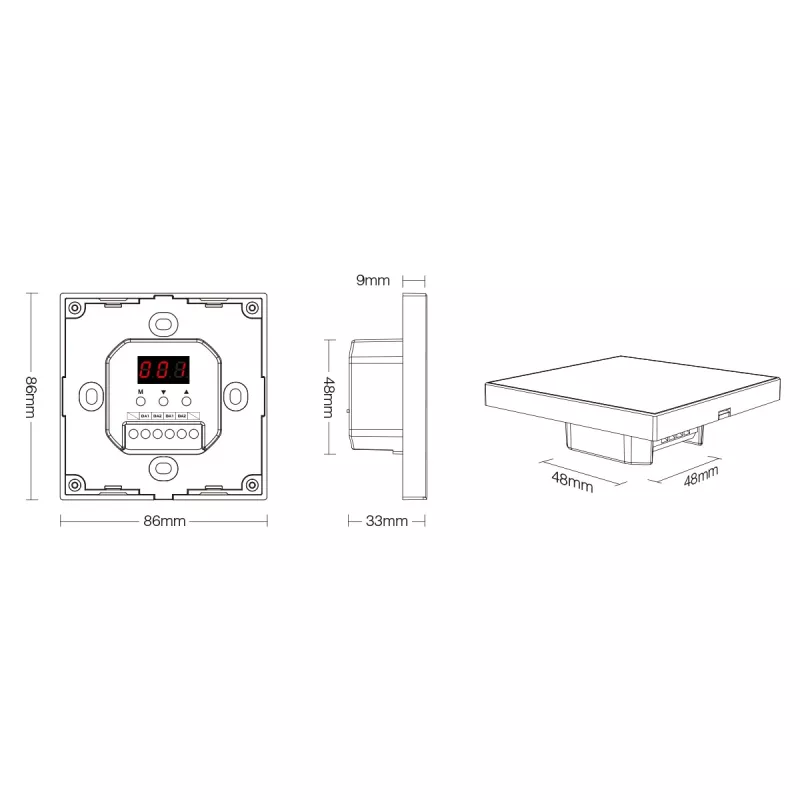

• Mounting: standard 86-type wall box, flush mount
• Panel material: tempered glass
• Operating temperature: -20°C to 60°C
• Indoor use only
• LED indicator
• Short circuit and overload protection on DALI bus

Our verdict

The DP2S brings smooth, precise tunable-white control to DALI installations, with a minimalist glass design and robust bus-powered operation.
