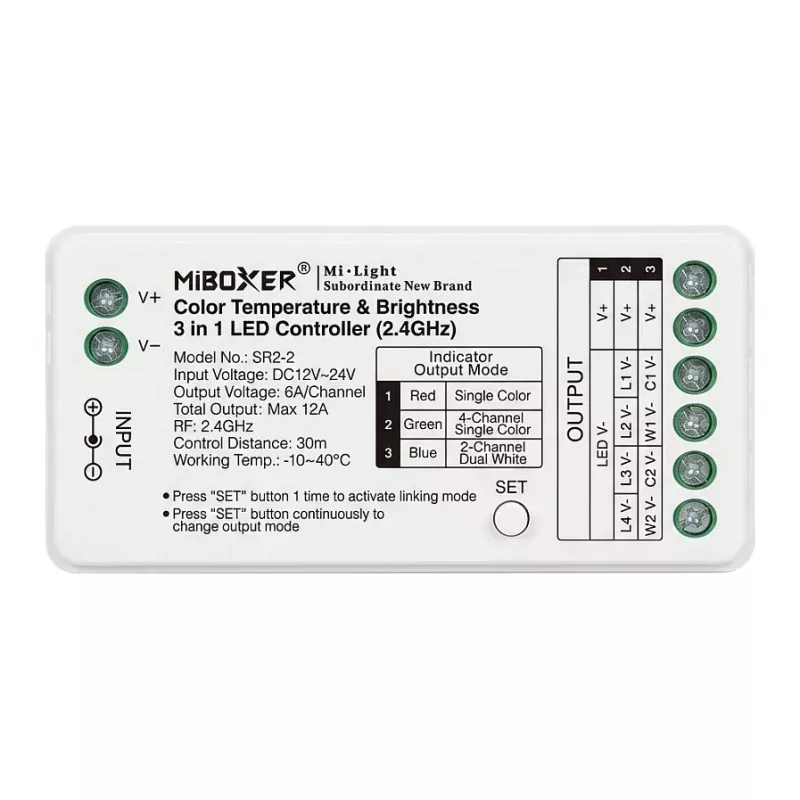

Miboxer Synergy 21 Controlador LED 3in1 Single+CCT Dual White DC12/24V 2.4G (SR2-2)

The Miboxer Synergy 21 LED Controller SR2-2 is a versatile 3-in-1 controller designed for single color and CCT (dual white) LED strips. Operating on 2.4GHz RF wireless technology, it is fully compatible with the MiBoxer/MiLight ecosystem, allowing seamless integration with remotes, wall panels, and WiFi gateways for app and voice control.

Advantages

This controller supports constant voltage PWM output with 5 channels (R, G, B, CW, WW) and a maximum total output current of 10A. It offers 0-100% dimming range and a control distance of up to 30 meters. The compact ABS plastic housing with IP20 rating ensures reliable indoor use.

Suitable for

• Single color (DIM) LED strips
• CCT (dual white) LED strips
• RGB, RGBW, and RGB+CCT LED strips
• Indoor lighting installations requiring 12V or 24V DC power

Key specifications

• Product Type: LED Controller
• Control Technology: 2.4GHz RF Wireless
• Compatibility: MiBoxer / MiLight Ecosystem
• Input Voltage: DC 12V / 24V
• Output Type: Constant Voltage (PWM)
• Max Output Current per Channel: 6A
• Max Total Output Current: 10A
• Max Output Power (12V): 120W
• Max Output Power (24V): 240W
• Number of Channels: 5 (R, G, B, CW, WW)
• Dimming Range: 0-100%
• Control Distance: Up to 30 meters
• Operating Temperature: -20°C to 60°C
• Housing Material: ABS Plastic
• Protection Rating: IP20
• Connection Type: Screw Terminals

Recommendations

For optimal performance, use with compatible MiBoxer/MiLight remotes or the WiFi gateway for smart control. Ensure proper ventilation and avoid exposure to moisture.
