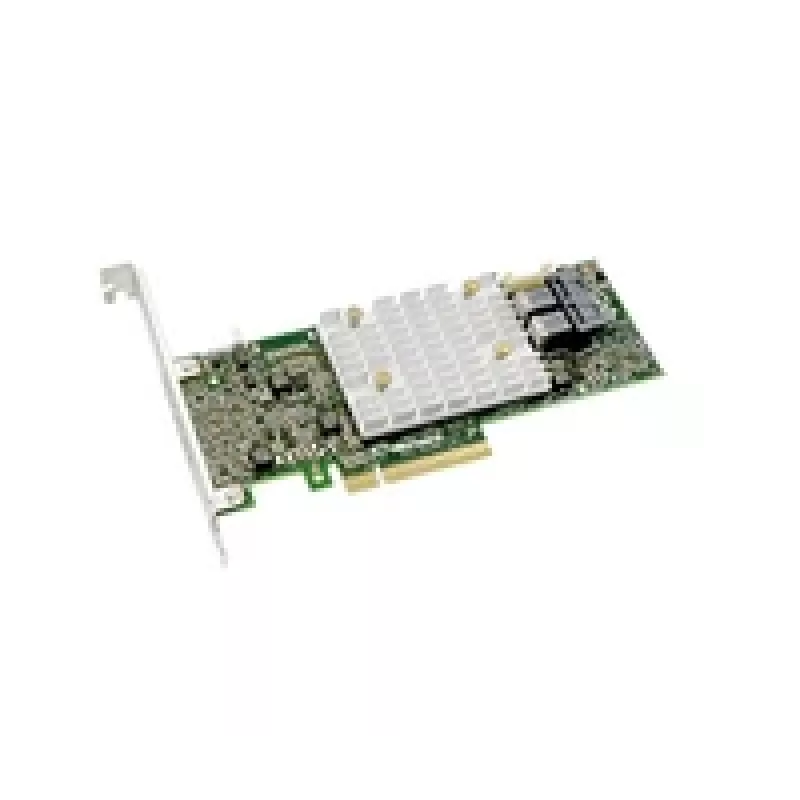

Controlador RAID Adaptec SmartRAID 3102-8i

The Adaptec SmartRAID 3102-8i is a 12 Gbps RAID controller designed for high-performance storage systems. It supports SAS drives and multiple RAID levels (0, 1, 5, 6, 10, 50, 60) to balance performance and data protection. The controller provides a PCI Express x8 host interface, 12 Gbit/s per port transfer rate and 2048 MB of onboard cache memory, and is available in a compact half-height form factor suitable for a range of server configurations.

Advantages

The SmartRAID 3102-8i delivers high read/write bandwidth and up to 1.7 million IOPS when paired with 12 Gbps SSDs, and supports SSD caching to reduce latency and accelerate transactional and database workloads. It includes integrated, battery-free flash cache protection via a monitored capacitor module to ensure cached data is preserved during power loss. Additional features include mixed-mode operation (RAID and HBA simultaneously), adapter power management to lower energy use, and advanced data management tools for migrating data between arrays.

Suitable for

• Transactional databases and high-IOPS applications
• Virtualised server environments
• Enterprise storage arrays requiring mixed RAID/HBA configurations
• Systems needing fast SSD caching and low-latency storage

Key specifications

• Model: Adaptec SmartRAID 3102-8i (MPN 2294800-R, EAN 0760884157848)
• Host interface: PCI Express x8
• SAS/SATA transfer rate: 12 Gbit/s per port
• Onboard cache: 2048 MB
• Form factor: half-height (167 mm x 64 mm)
• Supported RAID levels: 0, 1, 5, 6, 10, 50, 60
• SSD caching: read and write-back caching (maxCache technology)
• Cache protection: flash-based with tethered capacitor module (battery-free)

How to use

Install the Adaptec SmartRAID 3102-8i into a PCI Express x8 slot in a supported server and connect SAS or SATA drives to the controller ports. Use the adapter firmware and the Adaptec maxView management interface (HTML5 web UI) to configure RAID levels, enable SSD caching, and set power management options. For cache protection, ensure the flash-backed capacitor module is properly attached and monitored by the firmware so cached data can be written to flash during power loss.

Recommendations

For best performance in transactional and database workloads, pair the controller with enterprise-grade 12 Gbps SSDs, enable both read and write-back caching where appropriate, and periodically verify firmware and management software updates. When replacing drives or upgrading storage, use the adapter's data migration features to move data with minimal downtime.
