Microconnect FIB447003 Cabo InfiniBand/fibra ótica 3 m LC amarelo

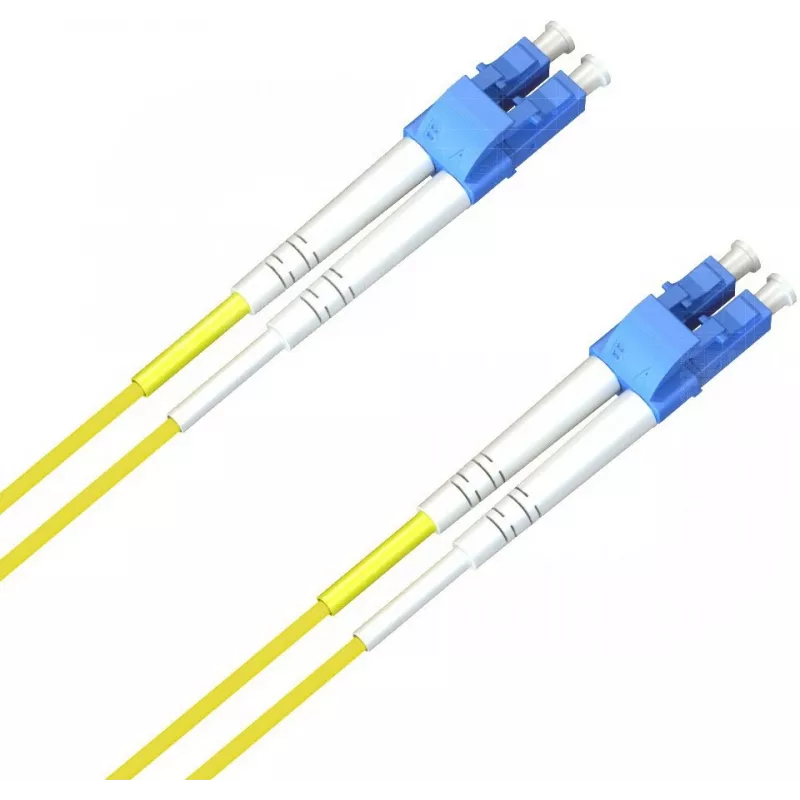

The Microconnect FIB447003 is a 3 m single mode fibre optic patch cable with LC connectors on both ends and OS2 specification. Designed for enterprise networks, telecom rooms, server farms and cloud storage networks, this yellow full-duplex cable has a 9 µm core diameter and uses LSZH jacket material to meet common industry standards. It supports 1G/10G/40G/100G Ethernet links and transmits reliably over long distances.

Advantages

This LC–LC OS2 single mode cable provides low attenuation and stable performance for long-distance transmissions, with compatibility for a wide range of Ethernet speeds. The 3 m length offers flexibility for rack-to-rack or patch-panel connections, while the LSZH jacket reduces smoke emission and meets IEC/EIA-TIA/Telcordia requirements. The yellow colour helps fast visual identification in mixed-cable environments.

Suitable for

• Enterprise network backbone and horizontal cabling
• Telecom rooms and data center patch panels
• Server farms and cloud storage interconnects
• Connecting 1G/10G/40G/100G Ethernet equipment

Key specifications

• Length: 3 m
• Connector type: LC — LC (both ends)
• Fiber type: Single mode OS2, core diameter 9 µm
• Jacket: LSZH
• Colour: Yellow
• Weight: 0.1 kg
• Standards: IEC / EIA-TIA / Telcordia (conforming)
• Transmission reach: up to 10 km at 1310 nm; up to 40 km at 1550 nm

How to use

Route the 3 m LC–LC patch cable between the appropriate LC ports on patch panels, transceivers or networking equipment. Ensure connectors are clean before insertion to avoid increased loss; push each LC connector into the port until it clicks. Avoid tight bends and secure the cable with appropriate cable management to maintain bend radius and prevent stress on the fiber.

Recommendations

For optimal performance, use this OS2 single mode cable with compatible single mode transceivers and modules, keep connector endfaces clean using appropriate cleaning tools, and maintain recommended minimum bend radius. Choose this 3 m length for short interconnect runs inside racks or between nearby patch panels.
