Microconnect POEINJ-15W-UK adaptador PoE 10 Gigabit Ethernet 48 V

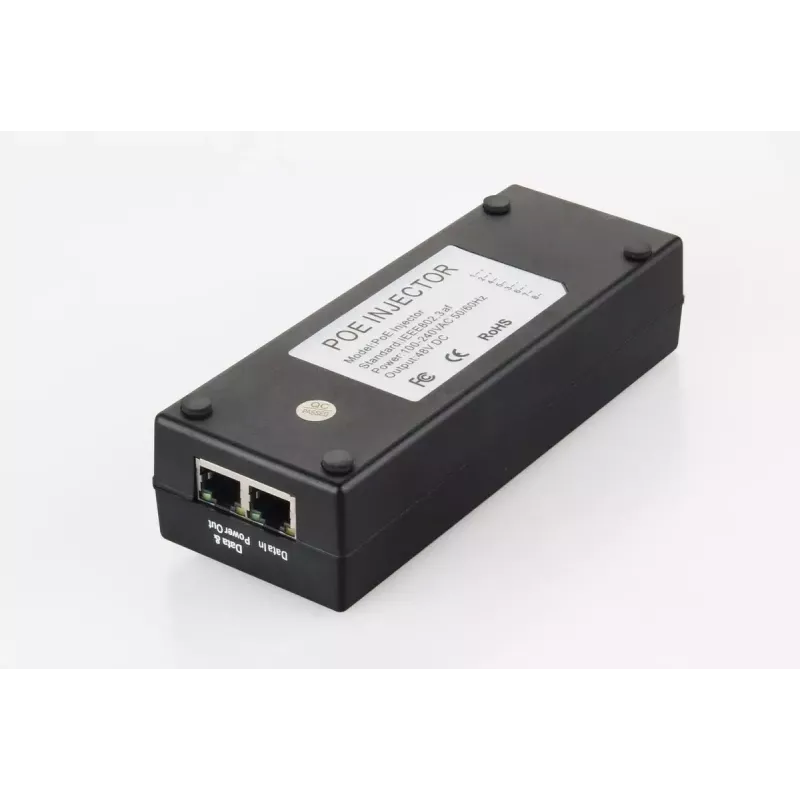

The MicroConnect POEINJ-15W-UK is a compact single-port Gigabit PoE injector that supplies 48 V DC and up to 15.4 W of power over Ethernet while supporting data transmission at speeds up to 1000 Mbps over distances up to 100 m. The unit has two RJ45 ports: one for data input from a network switch and one for combined data-and-power output to a remote powered device. It requires a separate network switch for data and mixes the switch data with PoE power onto the Ethernet cable to power IEEE 802.3af-compliant devices such as access points, IP cameras, VoIP phones and other network terminals where local mains power is unavailable or impractical.

Advantages

The POEINJ-15W-UK provides a standard-compliant 48 V PoE supply in a small, easy-to-install form factor and supports Gigabit data rates. It eliminates the need for local power at the device location, simplifies cabling by delivering power and data over a single Ethernet cable, and is CE and FCC certified for regulatory compliance. Its compact size and black housing allow unobtrusive integration into existing network setups.

Suitable for

• Powering IEEE 802.3af-compatible wireless access points
• Supplying power to IP/network cameras up to 100 m away
• Providing PoE to VoIP phones and small network terminals
• Use in installations where mains power is not available at the device location

Key specifications

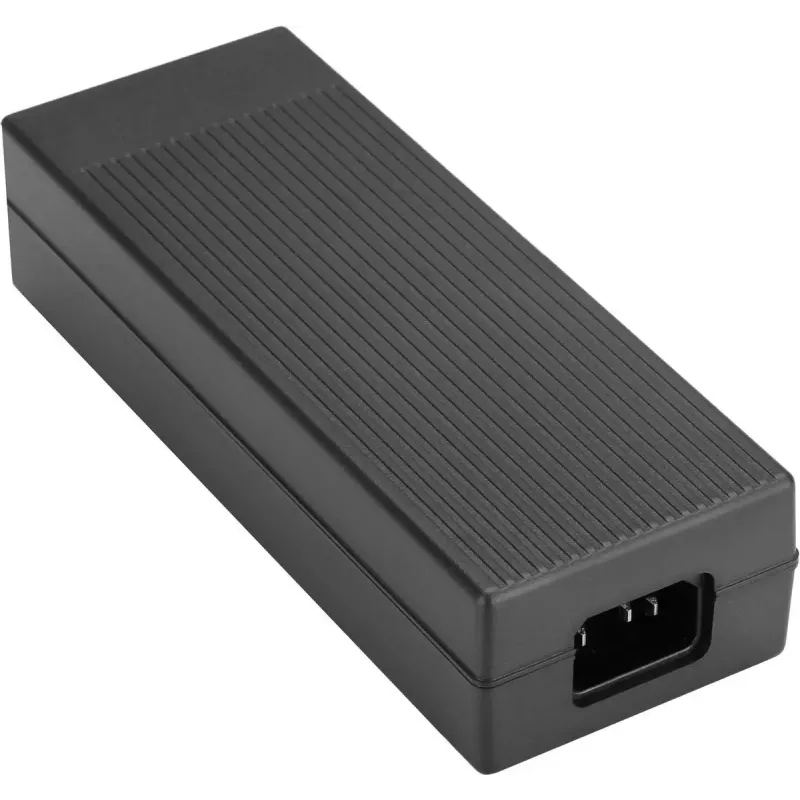

• Input voltage: 100–240 V AC, 50–60 Hz
• Output: 48 V DC, PoE power up to 15.4 W
• Data rate: up to 1000 Mbps (Gigabit Ethernet); compatible with 10/100/1000 networks
• Transmission distance: up to 100 m over standard Ethernet cable

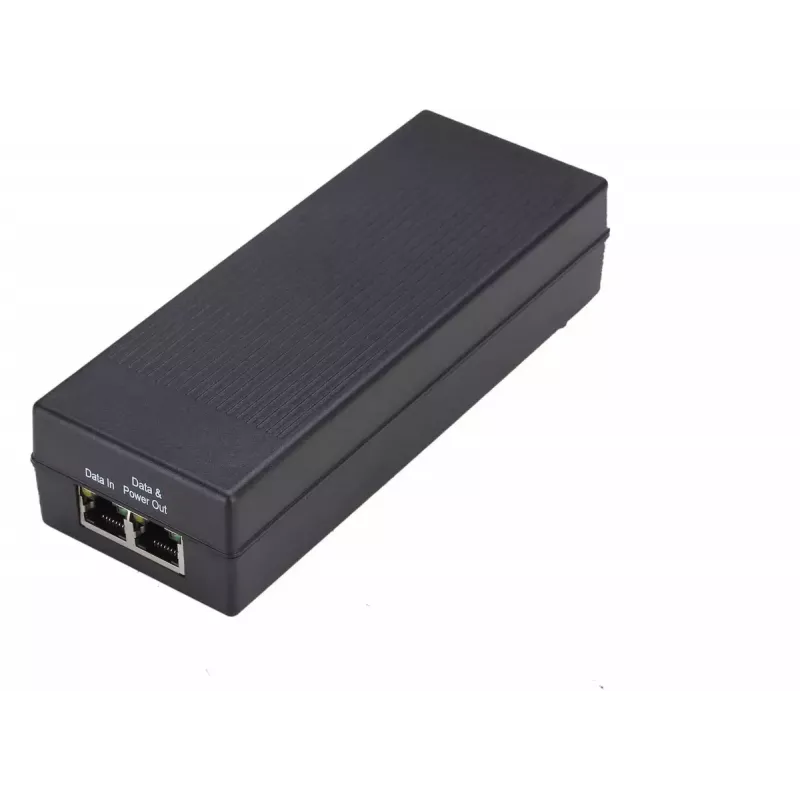

• Ports: 2 × RJ45 (1 data in, 1 data+power out)
• Standards: IEEE 802.3af compliant
• Dimensions (W×D×H): 62 × 38.5 × 165 mm
• Weight: 0.25 kg
• Colour: Black
• Certifications: CE, FCC

How to use

Connect the data input RJ45 port of the POEINJ-15W-UK to a network switch or router using an Ethernet cable. Plug the network device that requires power into the data+power RJ45 output port of the injector. Connect the injector to mains power (100–240 V AC). The injector will combine the switch data and 48 V DC power on the output cable, supplying the remote IEEE 802.3af-compliant device. Ensure cable runs do not exceed 100 m for reliable power and data delivery.

Recommendations

Use shielded or good-quality Cat5e/Cat6 Ethernet cable for runs near electrical interference, verify the powered device is IEEE 802.3af compatible, and install the injector near the network switch in a ventilated, dry location. Do not exceed the specified 100 m cable length and ensure the powered device’s power draw does not exceed 15.4 W.
