Microfone de palco Lenco MCW-020BK

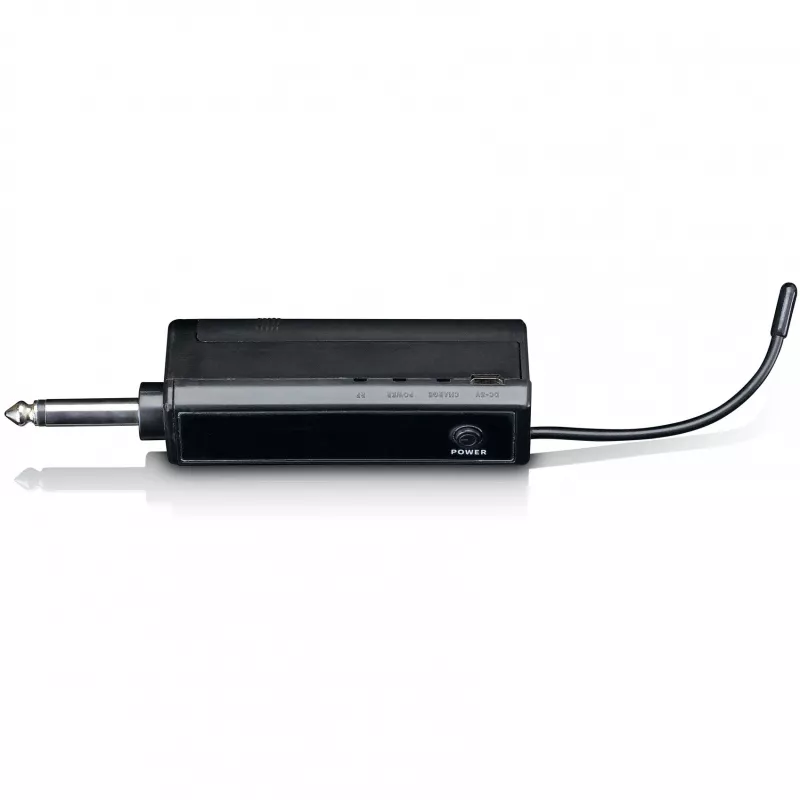

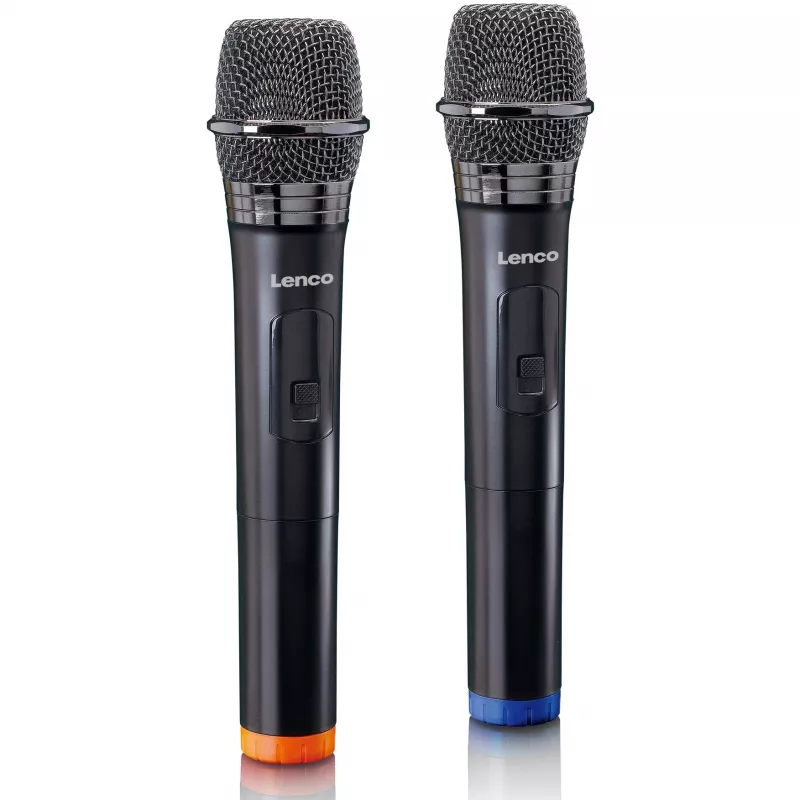

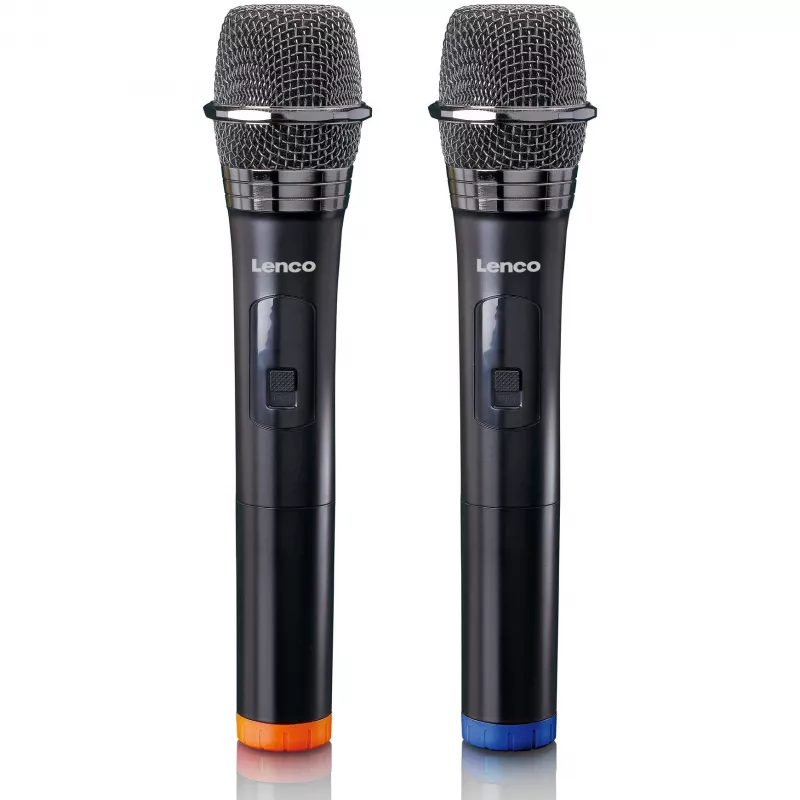

The Lenco MCW-020BK is a wireless stage microphone set consisting of two dynamic handheld microphones and a single mini receiver. It is designed for clear reproduction of speech and singing and connects directly to a PA or party speaker via the receiver's 6.35 mm (1/4") jack. The microphones use cardioid pickup to reduce off-axis noise and are powered by AA batteries; the receiver is powered by one AA battery. The system operates on fixed UHF frequencies of 863.5 MHz and 864.5 MHz with an effective operating range of up to 15 m (50 ft).

Advantages

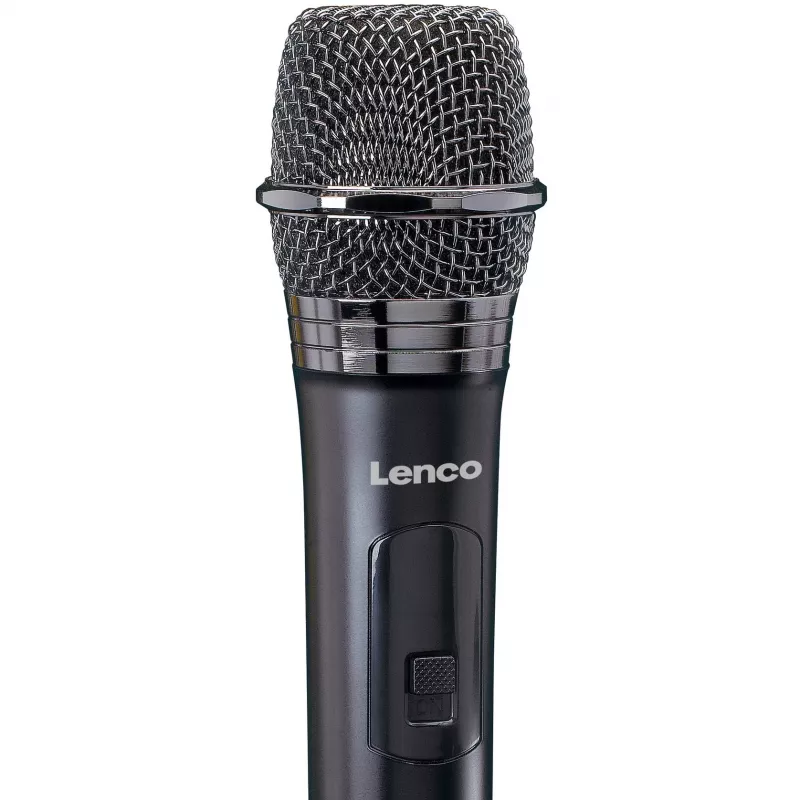

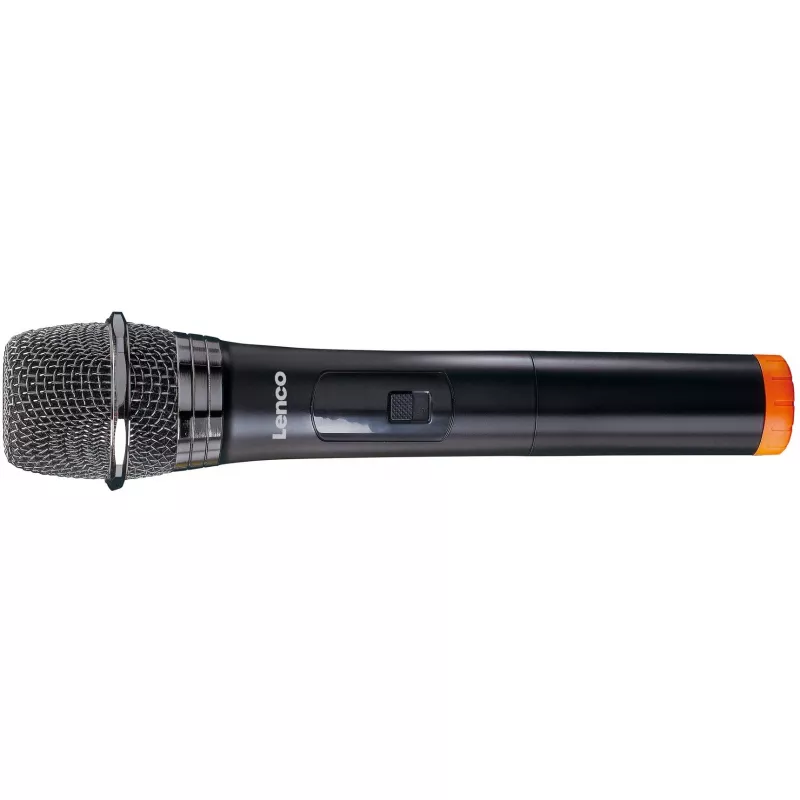

The set provides two microphones with one common receiver, so only a single microphone input on the amplifier or speaker is required. Both microphones have a metal grille and an on/off switch, and their cardioid pattern improves isolation of the voice while minimizing feedback from PA speakers. The receiver's 6.35 mm jack plugs directly into a microphone input without extra cables or adapters. Included AA batteries supply at least six hours of continuous operation when fully charged.

Suitable for

• Karaoke sessions
• Small concerts and stage performances
• Weddings and parties
• Conferences, presentations and speeches

Key specifications

• Model: Lenco MCW-020BK
• Microphone type: Dynamic, cardioid
• Receiver interface: 6.35 mm (1/4") jack
• Frequency: fixed 863.5 MHz and 864.5 MHz
• Frequency response: 60 – 15,000 Hz
• Sensitivity: 3 mV/Pa
• Signal-to-noise ratio: 85 dB
• Operating range: up to 15 m (50 ft)
• Power: microphones — AA batteries (2 included), receiver — 1 AA battery
• Colour: Black

How to use

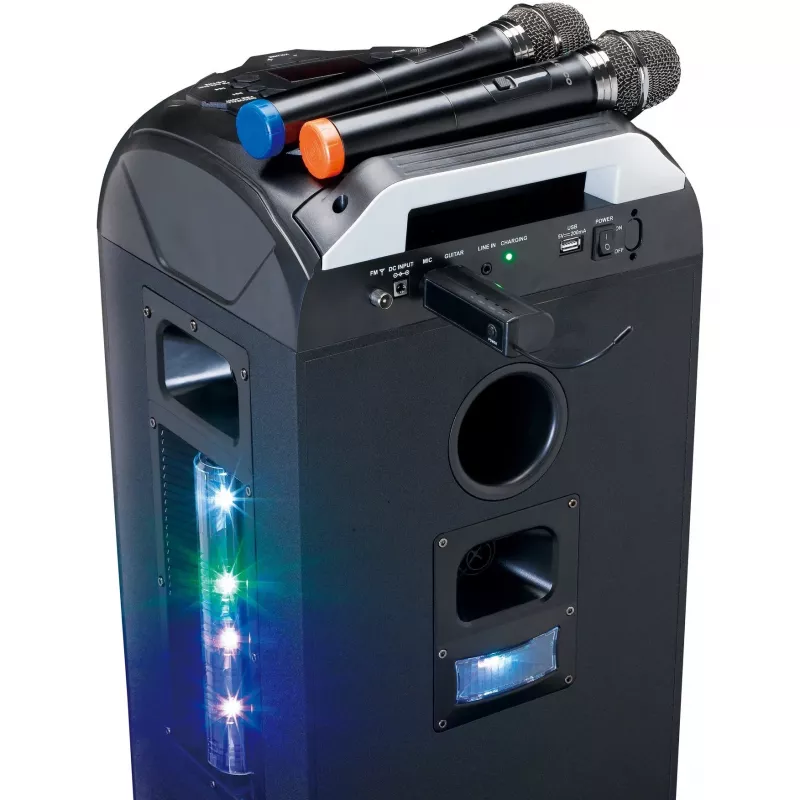

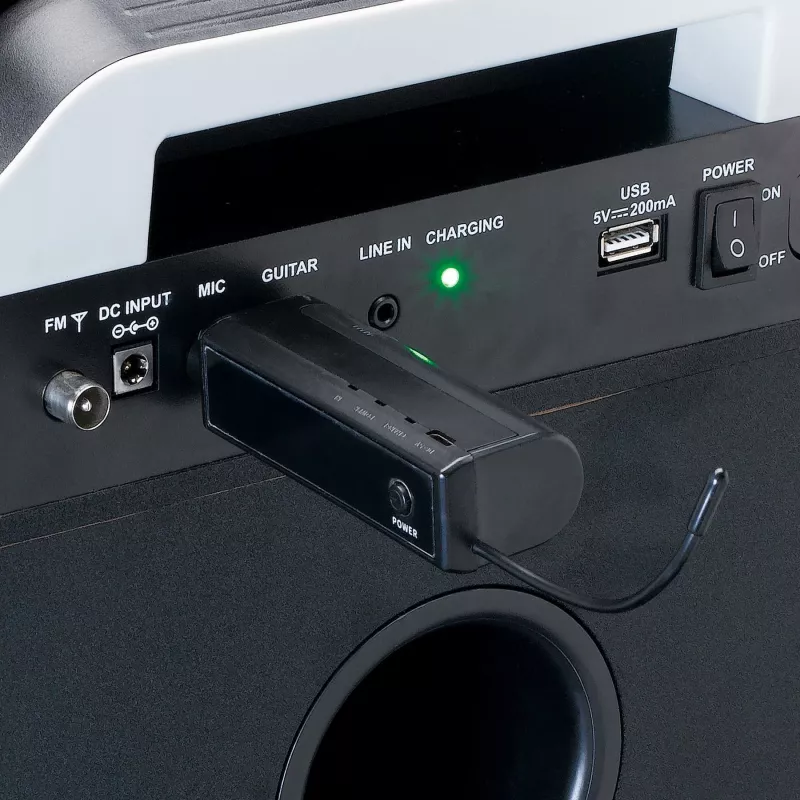

Insert the supplied AA batteries into each microphone and a single AA into the mini receiver. Plug the receiver's 6.35 mm jack into the microphone input of your PA, mixer or speaker. Switch on the receiver and both microphones using their on/off switches. Position the microphones 5–15 cm from the mouth and maintain the microphones within the specified operating range for best signal quality. Adjust the speaker or mixer input gain to a suitable level to avoid clipping or feedback.

Recommendations

For reliable performance, keep the line of sight between microphones and receiver unobstructed when possible and avoid placing the receiver close to high-power transmitters or large metal objects. Replace batteries before long events and test sound levels during a soundcheck to set optimal gain and monitor for feedback.
