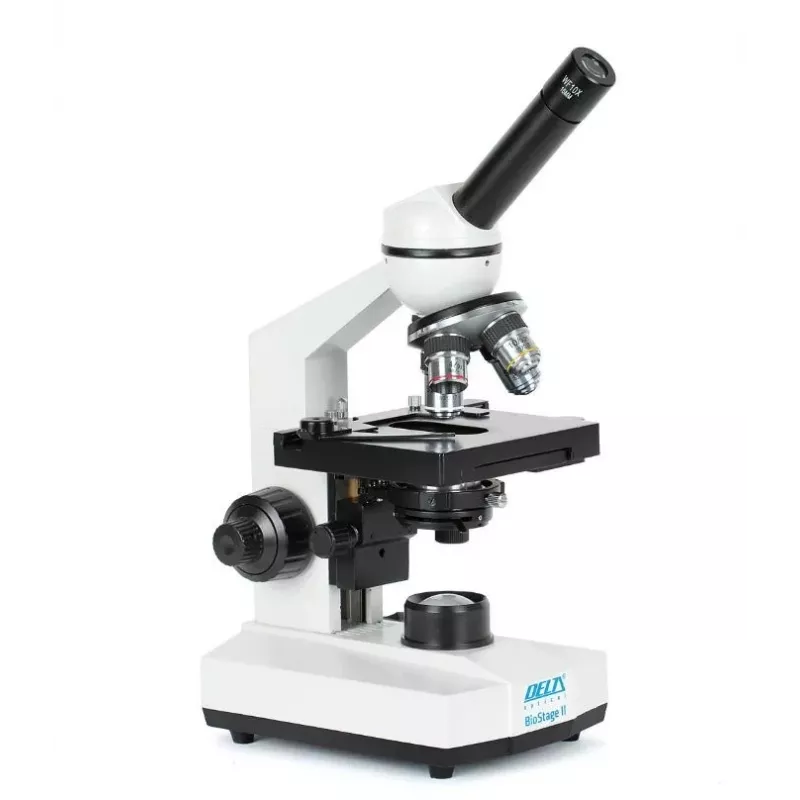

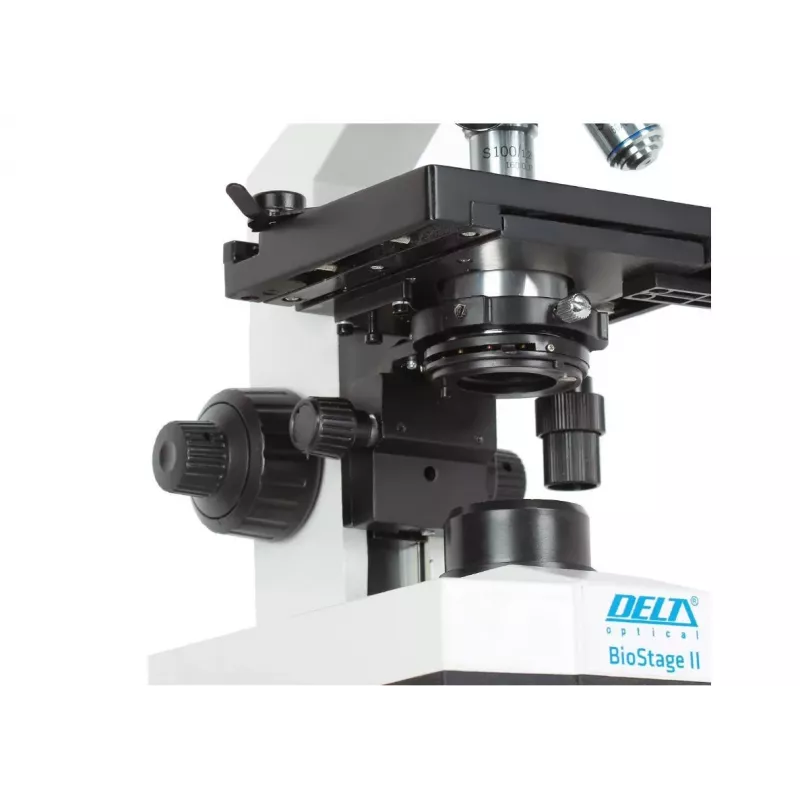

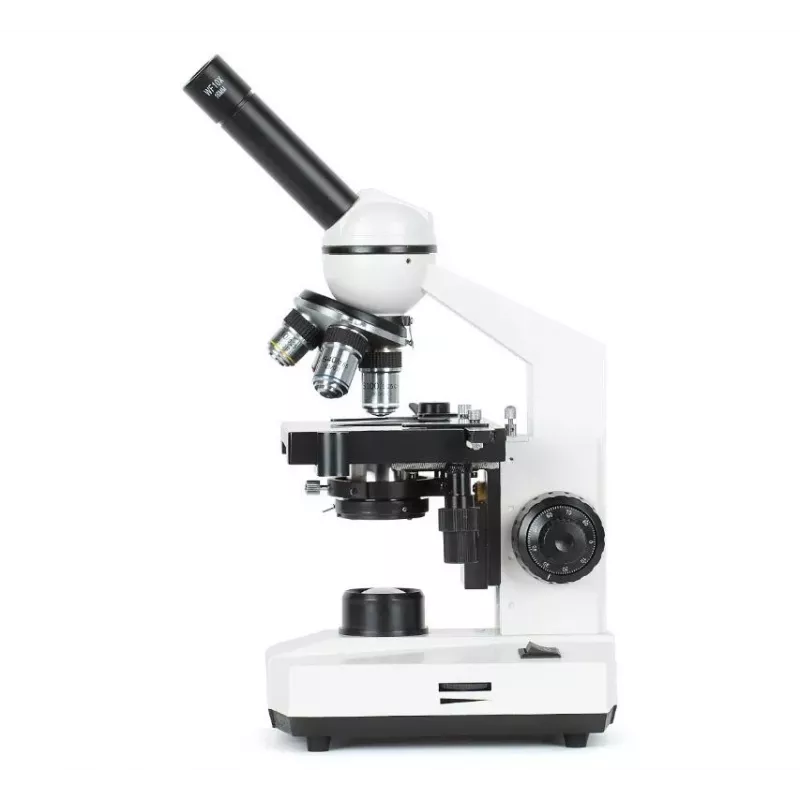

Microscópio binocular de luz transmitida Delta Optical BioStage II 40x-1000x LED

The Delta Optical BioStage II is a high-quality binocular compound microscope designed for educational and routine laboratory applications. Featuring a robust metal alloy construction and precision optics, it delivers clear and detailed images across a magnification range of 40x to 1000x. The built-in LED illumination with adjustable brightness ensures consistent and energy-efficient lighting for prolonged use.

Advantages

This microscope offers excellent value for money, combining professional-grade features such as a mechanical stage, Abbe condenser, and coaxial focusing system at an affordable price point. The 30° inclined binocular head with 360° rotation provides comfortable viewing for multiple users, while the diopter adjustment on the left eyepiece tube allows for personalized correction.

Suitable for

• Biology and life science education in schools and universities
• Routine laboratory work in clinical and research settings
• Hobbyists and amateur microscopists exploring microbiology

Key specifications

• Microscope Type: Biological / Compound
• Head Type: Binocular, 30° inclined, 360° rotatable
• Eyepieces: WF10x/18mm (pair)
• Objectives: Achromatic DIN 4x, 10x, 40x (spring), 100x (spring, oil)
• Magnification Range: 40x - 1000x
• Nosepiece: Quadruple revolving
• Stage: Mechanical double layer, 125x115mm, X-Y travel 70x30mm
• Focusing System: Coaxial coarse and fine adjustment, 0.002mm fine division
• Condenser: Abbe condenser, N.A. 1.25, with iris diaphragm and filter holder
• Illumination: LED, adjustable brightness, 3W
• Power Supply: AC 230V / 50Hz
• Interpupillary Distance: 48-75 mm
• Diopter Adjustment: Yes, on left eyepiece tube
• Filters Included: Blue filter
• Body Material: Metal alloy

Recommendations

For optimal performance, use immersion oil with the 100x objective. The microscope is ready to use out of the box and includes a blue filter for enhanced contrast. Suitable for brightfield observation of stained specimens.
