Microscópio digital Reflecta 66142

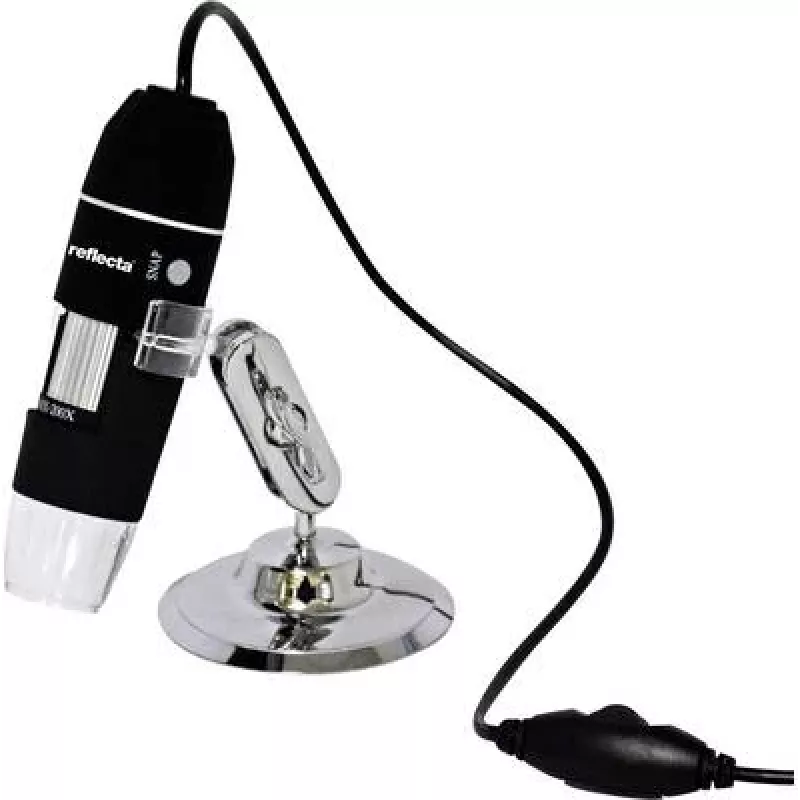

The Reflecta 66142 digital microscope is a compact, portable USB microscope with a 2-megapixel sensor and magnification from 25x up to 200x. It connects to a PC to display live images, capture photos and record AVI video. The device measures 32 mm in width, 115 mm in height and weighs 52 g; it is supplied with a mini-tripod and includes measurement software for analyzing small objects and surfaces.

Advantages

The Reflecta 66142 offers up to 200x magnification with 2 MP resolution, a lightweight design for handheld or tabletop use, and bundled measurement software. It records video in AVI format, connects via USB to a Windows 10 system, and includes a mini-tripod for stable positioning.

Suitable for

• Research and laboratory observation of small samples
• Study and school practical work
• Industrial inspection and quality control of surfaces
• Hobbyist use such as coin, stamp or electronics inspection
• Documenting and measuring small objects on a PC

Key specifications

• Brand: REFLECTA
• Model / MPN: 66142
• EAN: 4005039661426
• Image sensor: 2 megapixels
• Magnification: 25x–200x
• Video format: AVI
• Compatibility: Windows 10 (and variants)
• Dimensions: 32 mm (W) × 115 mm (H)
• Weight: 52 g
• Included accessories: mini-tripod, measurement software

How to use

Connect the digital microscope to a PC via the USB cable, start the bundled measurement/viewing software and position the microscope using the mini-tripod or hold it by hand. Adjust the distance between the lens and the object to achieve the desired magnification and focus, then capture images or record AVI video through the software interface.

Recommendations

For stable images and accurate measurements use the mini-tripod and ensure even lighting of the subject. Use the supplied measurement software for calibrated size readings and save recordings in AVI format when video documentation is required. Ensure the device drivers and software are up to date for Windows 10 compatibility.
