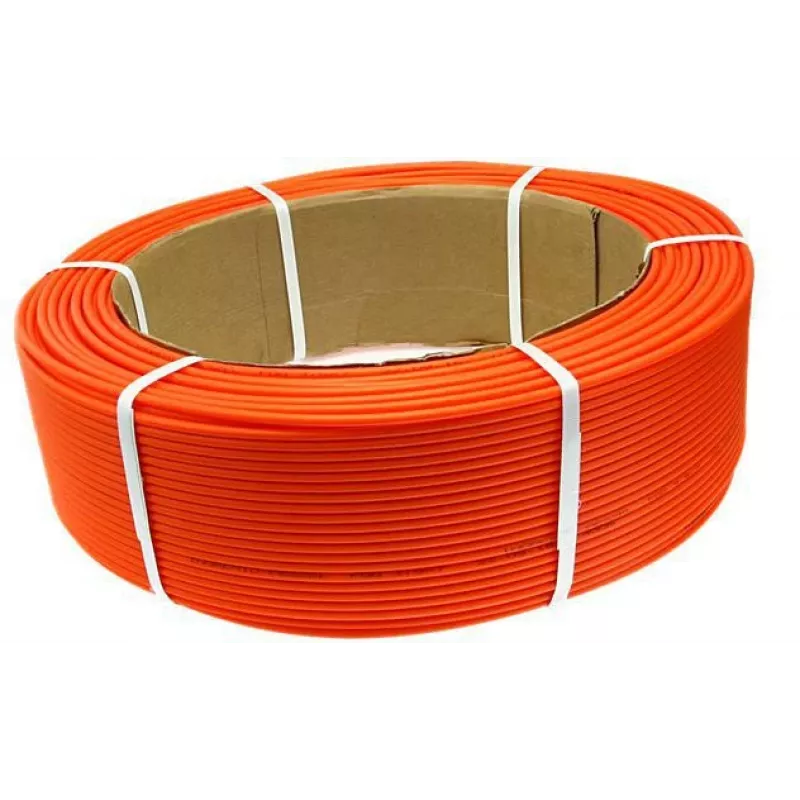

Microtubo para enterrar INGREMIO 20/16 mm Pilot Orange 100m

With a 2 mm wall thickness and high crush resistance, this 100-metre HDPE microduct is built to protect fibre optic cables in direct burial installations. The pre-installed pilot wire allows immediate cable pulling, while the smooth inner bore reduces friction during blowing or pulling.

Overview

Purpose-built for protecting fibre optic micro cables and other low-voltage lines, the W5367-FG-P microduct combines high crush resistance with a smooth internal bore that eases cable installation. The 20 mm outer and 16 mm inner diameter provide a robust yet space-efficient pathway, while the 2 mm wall maintains structural integrity across a wide temperature range. Its vivid orange colouring ensures high visibility on site, simplifying identification and excavation safety.

What stands out

• Pre-installed pilot wire for immediate cable pulling
• Direct burial ready: rugged HDPE construction withstands soil pressure and common chemicals
• Smooth inner surface reduces friction during blowing or pulling
• EN 61386-24 compliant for underground conduit systems
• 100 m continuous length minimises joints and speeds up installation

Technical details

• Material: High-density polyethylene (HDPE)
• Outer diameter: 20 mm
• Inner diameter: 16 mm
• Wall thickness: 2 mm
• Length: 100 m
• Colour: Orange
• Pre-installed element: Pilot wire (pull cord)
• Operating temperature: -30°C to +60°C
• Installation temperature: -5°C to +40°C
• Crush resistance: High
• UV resistance: Moderate (temporary exposure)
• Water tightness: Yes when properly sealed
• Flexibility: Semi-rigid
• Standards: EN 61386-24

Our verdict

This INGREMIO underground microduct is a dependable choice for fibre optic cable protection, offering a pre-installed pilot wire and robust HDPE construction in a convenient 100-metre length.
