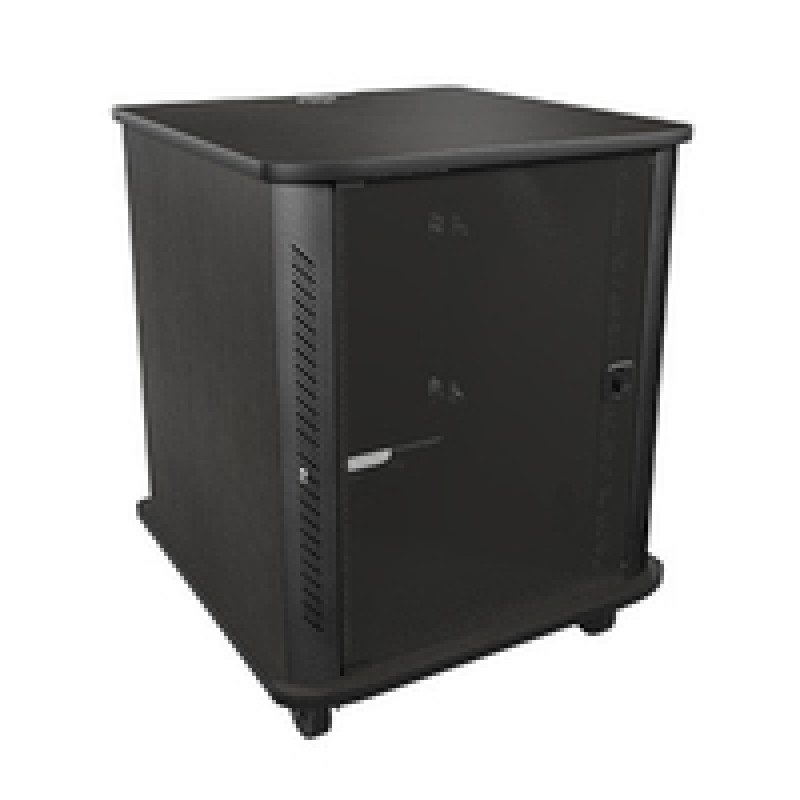

Middle Atlantic Products Middle Atlantic RFR Reference Series - Armário de rede - Ébano - 16U - 48,3 cm (19 polegadas)

For installations where aesthetics and acoustics matter as much as load-bearing integrity, the RFR-1628GE from Middle Atlantic’s RFR Reference Series delivers a fully welded steel enclosure finished in a deep ebony tone. Unlike utilitarian racks that look out of place in boardrooms or broadcast suites, this 16U floor-standing cabinet pairs a refined appearance with the structural strength to support up to 1134 kg static load. The 19-inch mounting width and adjustable square-hole rails ensure compatibility with a broad range of servers, AV gear, and networking hardware, while reversible, key-lockable vented doors and removable side panels keep equipment secure and serviceable.

Highlights

• 16U rack capacity with 19-inch (48.3 cm) mounting width, EIA-310-D compliant
• Ebony steel construction with fully welded frame for long-term rigidity
• Vented, reversible, key-lockable front and rear doors for airflow and security
• Removable, key-lockable side panels allow full access during installation
• Integrated cable pass-throughs and lacing points streamline cable management
• Passive ventilation with provisions for active cooling fans
• Adjustable-depth square-hole mounting rails accommodate deep equipment
• Leveling feet included for stable placement on uneven floors
• Static load capacity up to 1134 kg (2500 lbs), dynamic up to 907 kg (2000 lbs)

In daily use

The RFR-1628GE functions as a quiet, secure home for mission-critical equipment. Its vented doors promote natural convection, while optional fan mounting points let you add forced-air cooling when thermal loads rise. The reversible doors adapt to your room’s traffic flow, and the key-lockable panels deter unauthorized access without slowing down authorized technicians. Cable pass-throughs and lacing points keep bundles tidy, reducing the risk of accidental disconnects during routine maintenance. Because the mounting rails slide fore and aft, you can position patch panels, switches, and servers exactly where they need to be for clean front-to-back airflow.

Full specifications

• Brand: Middle Atlantic Products
• Model: RFR-1628GE
• Series: RFR Reference Series
• Product type: Network rack cabinet / equipment enclosure
• Rack capacity: 16U
• Rack width: 19 inch (48.3 cm)
• Colour: Ebony
• Material: Steel
• Mounting type: Floor-standing
• Front door: Vented, reversible, key-lockable
• Rear door: Vented, reversible, key-lockable
• Side panels: Removable, key-lockable
• Cable management: Integrated cable pass-throughs and lacing points
• Cooling: Passive ventilation, provisions for active cooling fans
• Static load capacity: Up to 1134 kg (2500 lbs)
• Dynamic load capacity: Up to 907 kg (2000 lbs)
• Mounting rails: Adjustable depth, square holes
• Leveling: Leveling feet included
• Compliance: EIA-310-D
• Frame construction: Fully welded steel frame

Final note

Choose the RFR-1628GE when you need a rack that matches the professionalism of your AV or IT installation—without compromising on load capacity, thermal management, or day-to-day accessibility.
