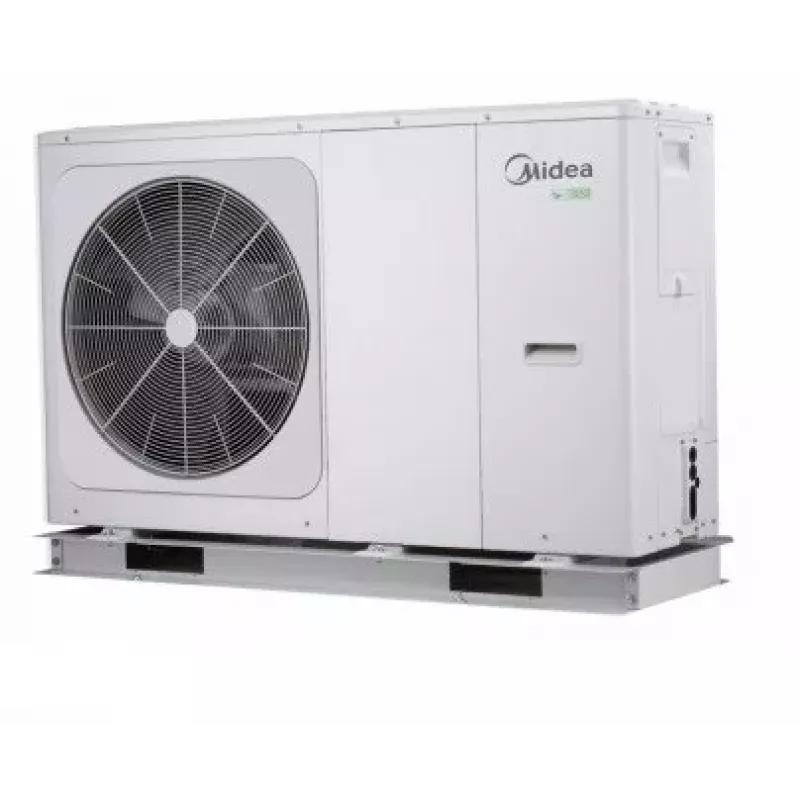

Midea M-Thermal Bomba de Calor Monobloco 12kW, Trifásica R32

The Midea M-Thermal 12kW Monobloc Heat Pump is a high-efficiency air-to-water heat pump designed for residential and light commercial heating and cooling. Utilizing R32 refrigerant and a twin rotary DC inverter compressor, it delivers reliable performance even in extreme temperatures. This 3-phase model (400V) is ideal for new installations or retrofits, offering both heating and cooling capabilities with a high SCOP of 4.70 and A+++ energy class.

Advantages

Exceptional energy efficiency with A+++ rating, low environmental impact with R32 refrigerant, quiet operation at 65 dB(A), and wide operating range from -25°C to 46°C. The integrated DC inverter water pump and backup electric heater (6 kW) ensure consistent performance and reliability.

Suitable for

• Residential heating and cooling
• Light commercial applications
• New builds and retrofits
• Underfloor heating systems
• Radiator systems

Key specifications

• Nominal Heating Capacity (A7/W35): 12.0 kW
• Nominal Cooling Capacity (A35/W18): 11.0 kW
• SCOP (Average Climate, W35): 4.70
• Energy Efficiency Class (Heating, W35): A+++
• Refrigerant: R32 (Charge: 2.3 kg)
• Power Supply: 400V / 3 Phase / 50Hz
• Sound Power Level: 65 dB(A)
• Operating Temperature Range (Heating): -25°C to 35°C
• Operating Temperature Range (Cooling): 10°C to 46°C
• Water Outlet Temperature Range (Heating): 25°C to 65°C
• Water Outlet Temperature Range (DHW): Up to 60°C
• Compressor: Twin Rotary DC Inverter
• Integrated Water Pump: Yes (High-efficiency DC Inverter)
• Backup Electric Heater: 6 kW (3+3 kW)
• Water Connections: G1"
• Control: Wired Controller (Standard), Wi-Fi Module (Optional)

Recommendations

For optimal performance, ensure proper sizing and installation by a qualified technician. The unit is suitable for outdoor installation and requires adequate clearance for airflow. Pair with a compatible thermostat or building management system for enhanced control.
