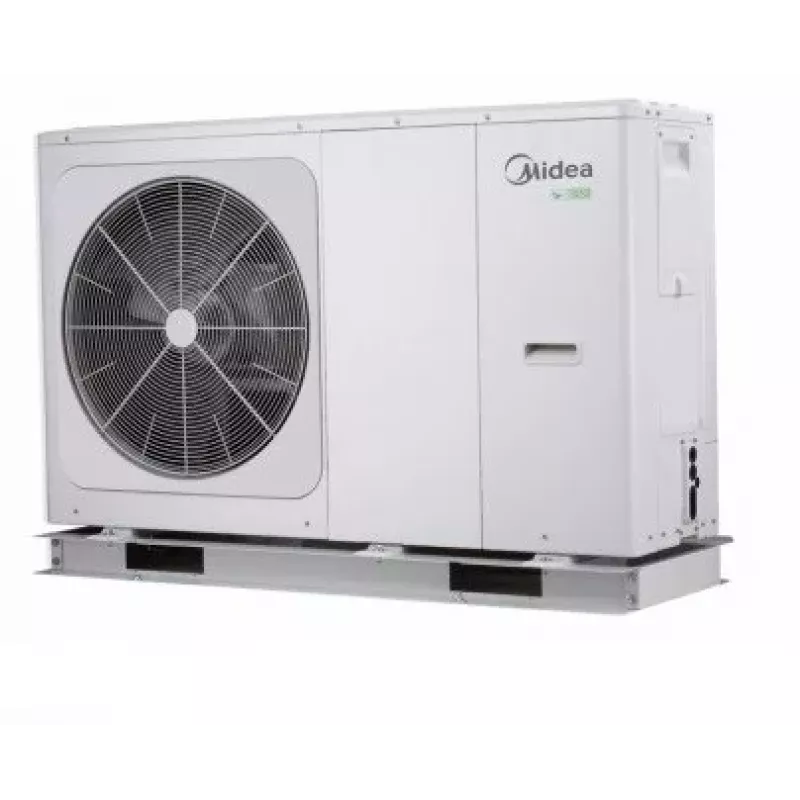

Midea M-Thermal Bomba de calor monobloco 8kW, 1 fase R32

The Midea M-Thermal 8kW Monobloc Heat Pump is a high-efficiency all-in-one outdoor unit designed for residential and light commercial heating and cooling applications. Utilizing R32 refrigerant and advanced inverter technology, it delivers reliable performance even in extreme temperatures.

Advantages

This heat pump offers exceptional energy efficiency with a SCOP of 4.70 and an A+++ energy class, reducing operating costs. Its monobloc design simplifies installation by eliminating the need for indoor refrigerant piping. The built-in inverter-controlled water pump and 8-liter expansion vessel ensure stable system operation.

Suitable for

• Residential heating and cooling
• Light commercial buildings
• Hydronic underfloor heating systems
• Radiator systems

Key specifications

• Heating Capacity (A7/W35): 8.0 kW
• Cooling Capacity (A35/W18): 7.5 kW
• Power Supply: 1 Phase, 230V, 50Hz
• Refrigerant: R32 (1.45 kg)
• SCOP (W35): 4.70
• COP (A7/W35): 4.90
• Sound Power Level: 60 dB(A)
• Operating Temperature Range (Heating): -25°C to 35°C
• Operating Temperature Range (Cooling): 10°C to 46°C
• Water Outlet Temperature Range (Heating): 25°C to 65°C
• Water Outlet Temperature Range (Cooling): 5°C to 25°C
• Compressor: Twin Rotary DC Inverter
• Built-in Water Pump: Yes (Inverter controlled)
• Built-in Expansion Vessel: 8 Liters
• Water Connections: DN25 (1 inch)
• Control: Wired Controller, Wi-Fi Module

Recommendations

For optimal performance, ensure proper sizing and installation by a qualified technician. The unit is compatible with most standard hydronic systems. Regular maintenance of filters and refrigerant levels is recommended.
