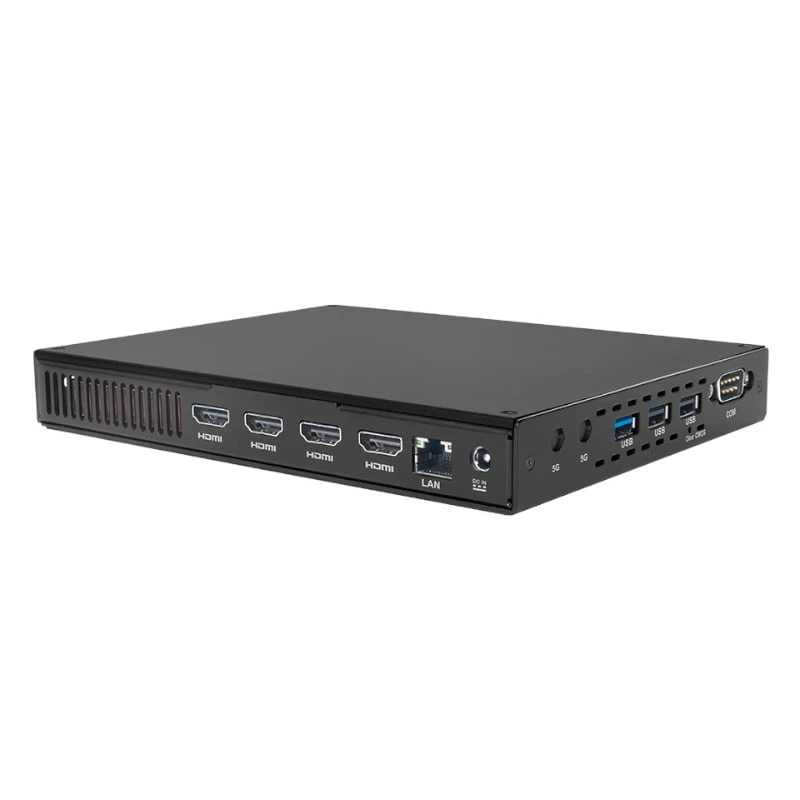

Giada D612 Mini PC, Intel Core i5-1235U, 2x DDR4 3200MHz

The Giada D612 is a compact embedded computer built around the Intel Core i5-1235U processor, designed for digital signage and commercial applications. It supports up to four HDMI displays at 4K resolution and offers flexible connectivity including Gigabit Ethernet, Wi-Fi 6, and optional 3G/4G/5G via M.2 modules.

Key features

• Intel Core i5-1235U processor (10 cores, 3.30 GHz up to 4.40 GHz)
• 4 x HDMI outputs supporting up to 4K (4096 x 2304 @60 Hz)
• 2 x SO-DIMM DDR4-3200MHz slots, up to 64GB
• Intel Iris Xe Graphics
• 1 x M.2 M-key (2242/2280) for NVMe SSD
• 1 x Intel i219LM Gigabit Ethernet, 1 x RJ45
• Wi-Fi 6 (CNVi) support via M.2 E-key
• 1 x M.2 B-key for 3G/4G/5G with SIM slot
• VESA mount capability and desk/wall mounting
• Metal construction, black colour

Specifications

• Brand: Giada
• MPN: D612-1235U40N0G-GIA
• Processor: Intel Core i5-1235U, 10 cores, 3.30 GHz (up to 4.40 GHz)
• BIOS: AMI EFI 64 Mbit
• Memory type: DDR4-3200MHz
• Memory slots: 2 x SO-DIMM
• Maximum memory: 64GB
• Graphics: Intel Iris Xe Graphics
• Graphic engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
• HDMI: 4 x HDMI (max. 4096 x 2304 @60 Hz)
• Network controller: 1 x Intel i219LM Gigabit Ethernet
• Interface: 1 x RJ45
• Mobile network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM slot
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, supports Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
• USB: 1 x USB3.2 Gen2, 2 x USB2.0
• USB Type-C: 1 x USB Type-C3.2 Gen2
• Serial port: 1 x RS232
• Audio: 1 x 2-in-1 headset (MIC-IN & AUDIO-OUT)
• Buttons: 1 x Power on, 1 x CLR-CMOS
• Storage: 1 x M-key M.2 (2242/2280) for NVMe
• Watchdog timer: 0~255 second time out support
• Auto power on: power activated automatically start
• Operating system installed: Windows 11 (64bit)
• Linux: Linux Ubuntu (64bit)
• Power type: DC-IN
• Input voltage: 12V/19V
• Operating temperature: 0°C ~ 40°C (32°F ~ 104°F) at 0.7m/s air flow
• Relative humidity: 95%@40°C (non-condensing)
• Certification: CE, FCC Class B, CCC
• Mounting: desk/wall mounting and VESA mounting kit (JZ183)
• Construction: metal
• Colour: black
• Dimensions: 18.9 x 14.8 x 2.6 cm
