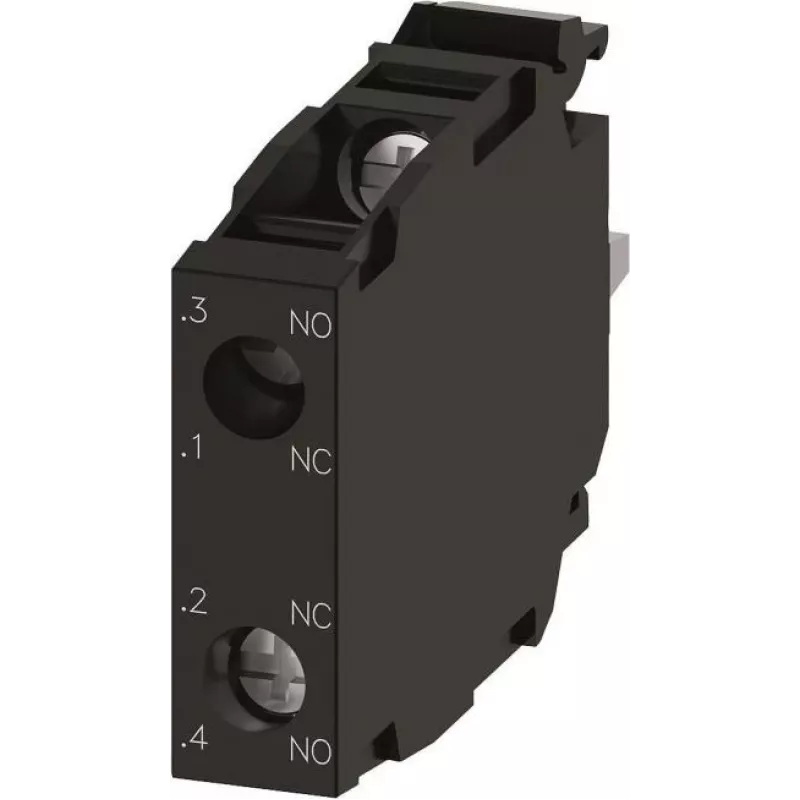

Módulo de contacto Siemens 3SU14001AA101FA0 SIRIUS ACT 1 NO + 1 NC ligação por parafuso

The Siemens 3SU14001AA101FA0 is a high-quality contact module from the SIRIUS ACT series, designed for industrial control applications. This module features 2 switching elements with a contact configuration of 1 normally open (NO) and 1 normally closed (NC), providing reliable switching for various automation tasks. The screw terminal connection ensures secure and easy wiring, making it suitable for floor mounting in control cabinets and panels.

Advantages

This contact module offers exceptional durability with an electrical and mechanical endurance of 10 million switching cycles. It complies with IEC 60947-5-1 and EN 60947-5-1 standards, ensuring high performance and safety in industrial environments. The IP20 degree of protection on the terminal side safeguards against solid objects, while the wide operating temperature range of -25 to +70 °C allows use in demanding conditions.

Suitable for

• Industrial control panels and switchgear
• Automation systems requiring reliable switching
• Floor-mounted control cabinets
• Applications needing NO/NC contact configurations

Key specifications

• Product Type: Contact Module
• Series: SIRIUS ACT
• Number of Switching Elements: 2
• Contact Configuration: 1 NO + 1 NC
• Connection Type: Screw Terminal
• Mounting Type: Floor Mounting
• Rated Insulation Voltage: 500 V
• Rated Operational Current (AC-15): 10 A at 230 V
• Rated Operational Current (DC-13): 10 A at 24 V
• Degree of Protection: IP20 (terminal side)
• Ambient Operating Temperature: -25 to +70 °C
• Electrical Endurance: 10 million switching cycles
• Mechanical Endurance: 10 million switching cycles
• Wire Cross-Section (Solid): 0.5 ... 2.5 mm²
• Wire Cross-Section (Finely Stranded): 0.5 ... 2.5 mm²
• Pollution Degree: 3
• Shock Resistance: 10g / 11ms
• Vibration Resistance: 10 ... 500 Hz: 5g
• Standards Compliance: IEC 60947-5-1, EN 60947-5-1

Recommendations

For optimal performance, ensure proper torque settings when connecting wires to the screw terminals. This module is ideal for use with Siemens SIRIUS ACT pushbuttons and indicator lights. Always follow local electrical codes and regulations during installation.
