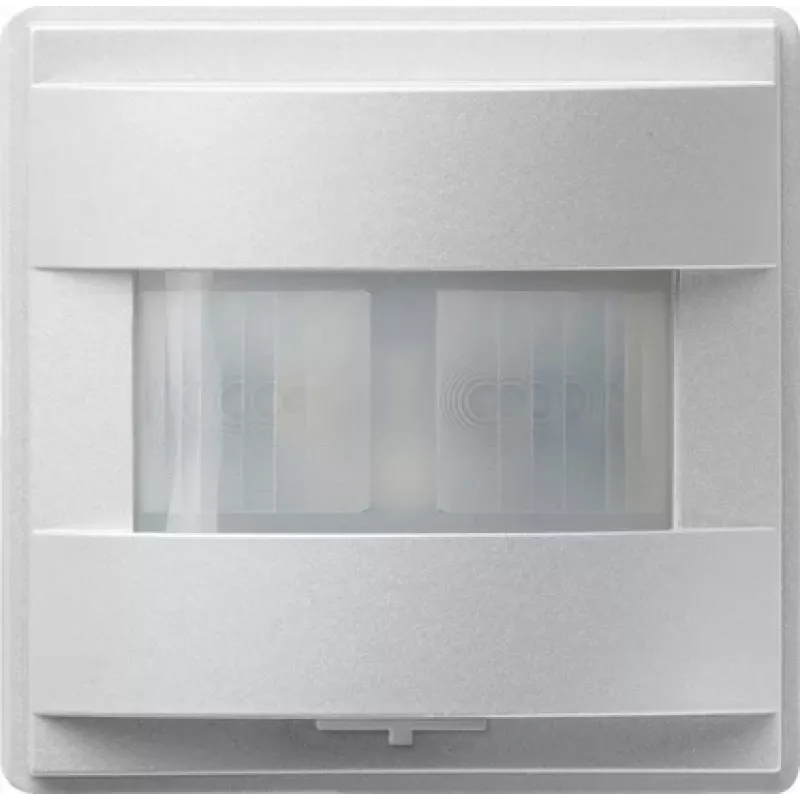

Módulo de detetor de movimento Gira System 3000 1,10 m Comfort Bluetooth TX_44 branco puro 537466

Motion and presence detector attachment for the Gira System 3000, enabling automatic lighting control with Bluetooth app configuration. The Gira TX_44 design line in pure white blends seamlessly into modern interiors. Optimal installation height is 1.10 m, providing a detection angle of 180° and a range of approximately 12 m forward and 8 m to each side.

Advantages

Comfort functions such as adjustable follow-up time (10 seconds to 30 minutes) and brightness threshold (1 to 1000 Lux) allow precise adaptation to individual needs. Presence detection ensures lights stay on while the room is occupied. Bluetooth connectivity enables convenient configuration via smartphone app.

Suitable for

• Indoor and outdoor use, including damp rooms, when installed with a Gira TX_44 cover frame
• Automatic lighting control in hallways, stairwells, bathrooms, and outdoor areas
• Integration into Gira System 3000 with flush-mounted insert

Key specifications

• Series: Gira System 3000
• Design line: Gira TX_44
• Colour: Pure White
• Mounting: Flush-mounted (requires System 3000 insert and TX_44 cover frame)
• Connectivity: Bluetooth
• Detection angle: 180°
• Detection range: approx. 12 m forward, 8 m to each side
• Operating voltage: 230 V AC, 50/60 Hz
• Max. switching capacity incandescent lamps: 2300 W
• Max. switching capacity LED lamps > 2 W: 300 W
• Adjustable follow-up time: approx. 10 s to 30 min
• Adjustable brightness threshold: approx. 1 to 1000 Lux
• Operating temperature: -25 °C to +55 °C
• Material: Thermoplastic

Recommendations

For reliable motion detection, install at the recommended height of 1.10 m. Use the Gira System 3000 app to fine-tune sensitivity and timings for each room.
