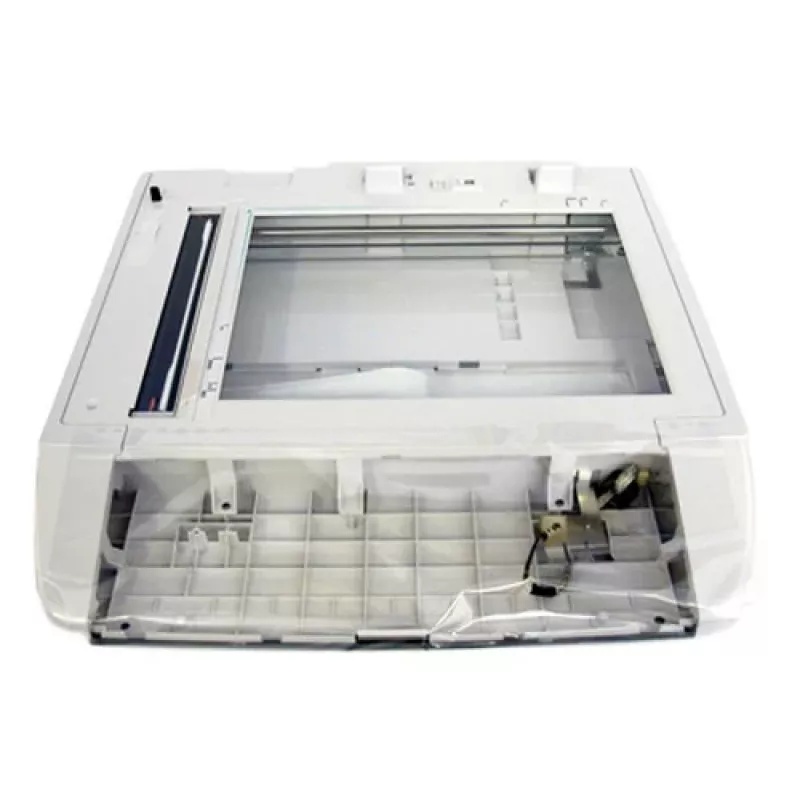

Módulo de digitalização de mesa adicional HP para scanner

The HP Additional Flatbed Module is a high-quality accessory designed to expand the scanning capabilities of the HP ScanJet N9120 Document Scanner. This flatbed module allows you to scan delicate, bound, or oversized documents up to A3 size with exceptional clarity and detail. Featuring CCD technology and 600 dpi optical resolution, it delivers professional-grade scans for color, grayscale, and black-and-white documents.

Advantages

Enhance your document scanning workflow with the HP Additional Flatbed Module. It provides a versatile flatbed scanning surface for materials that cannot be fed through an automatic document feeder, such as books, magazines, photographs, and fragile documents. The module is powered directly by the host scanner, eliminating the need for an extra power source. With a maximum scan area of 305 x 432 mm (12 x 17 inches), it supports a wide range of document sizes.

Suitable for

• Office environments requiring high-volume scanning of mixed document types
• Scanning bound materials like books, magazines, and reports
• Handling oversized documents up to A3
• Digitizing photographs and fragile papers

Key specifications

• Accessory Type: Flatbed Scanner Module
• Scan Technology: Charge Coupled Device (CCD)
• Optical Scan Resolution: 600 dpi
• Hardware Scan Resolution: 600 x 600 dpi
• Bit Depth (Color): 48-bit
• Grayscale Levels: 256
• Maximum Scan Area: 305 x 432 mm (12 x 17 inches)
• Document Size Support: Up to A3
• Compatibility: HP ScanJet N9120 Document Scanner
• Light Source: Cold Cathode Fluorescent Lamp (CCFL)
• Connectivity to Main Scanner: Proprietary interface cable
• Power Source: Powered by host scanner (HP ScanJet N9120)
• Operating Temperature Range: 10 - 35 °C (50 - 95 °F)
• Operating Humidity Range: 15 - 80% RH (non-condensing)
• Energy Star Certified: Yes (as part of the system)
• Scan Modes Supported: Color, Grayscale, Black & White
• Control Panel: None (controlled via host scanner)
• Included Accessories: Interface cable, power cord (if separate)

Recommendations

For optimal performance, use the HP Additional Flatbed Module exclusively with the HP ScanJet N9120 Document Scanner. This module is designed to integrate seamlessly, providing reliable and consistent scanning results. Ensure the scanner is placed on a stable surface and the interface cable is securely connected.
