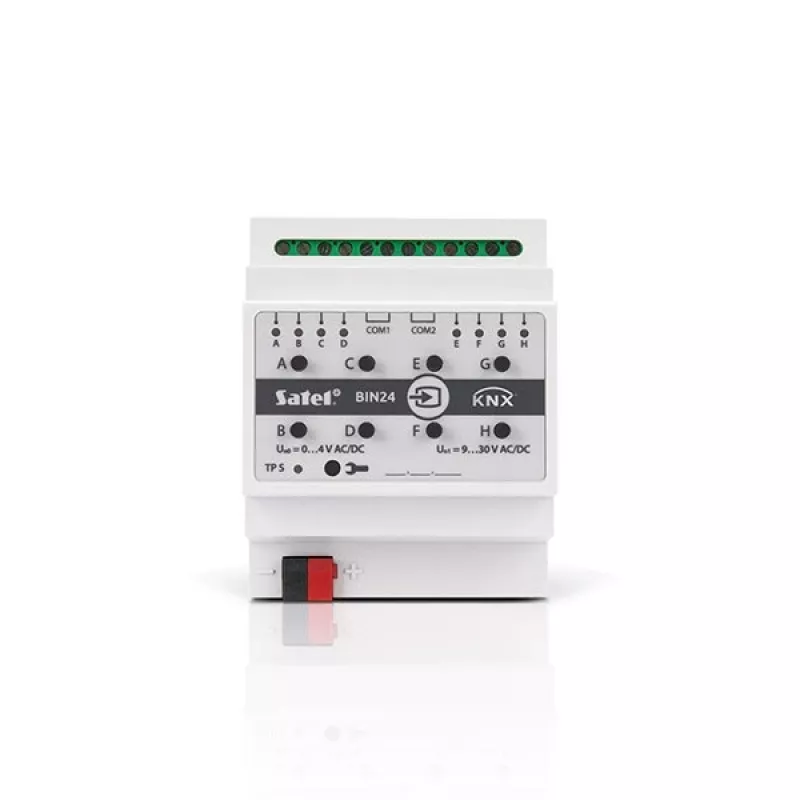

SATEL KNX-BIN24 Módulo de entradas binárias de 8 canais, calha DIN, KNX TP

The SATEL KNX-BIN24 is an 8-channel binary input module designed for DIN rail mounting and KNX TP communication. It features four independent relay outputs and supports a wide range of load types.

Key features

• 8-channel binary input module
• 4 independent relay outputs (1 relay per channel)
• DIN rail mounting (4 modules wide)
• KNX TP communication
• Maximum response time to telegram: < 20 ms
• Maximum number of communication objects: 69
• Maximum number of group addresses: 256
• Maximum number of associations: 256

Specifications

• Brand: Satel
• Model: KNX-BIN24
• Power supply: 230 V AC
• KNX bus voltage: 20…30 V DC
• Current consumption from KNX bus: < 10 mA
• Maximum power consumption: 5 W
• Number of relay outputs: 4
• Rated load current (AC1): 16 A / 250 V AC
• Rated load current (AC15): 3 A / 120 V, 1.5 A / 240 V (B300)
• Rated load current (AC3): 750 W (single-phase motor)
• Rated load current (DC1): 16 A / 24 V DC
• Rated load current (DC13): 0.22 A / 120 V, 0.1 A / 250 V (R300)
• Minimum contact current: 10 mA
• Continuous current carrying capacity of contact: 16 A
• Maximum switching power (AC1): 4000 VA
• Maximum switching frequency (at rated load AC1): 600 cycles/h
• Maximum switching frequency (no load): 3600 cycles/h
• Switching durability (DC1, 600 cycles/h): > 10⁵ 16 A / 24 V AC
• Switching durability (AC3, I = 3.5 A): > 2.5 x 10⁵
• Switching durability (at 1000 W incandescent lamp load): > 0.9 x 10⁵
• Switching durability (AC1, 600 cycles/h): > 10⁵ 16 A / 250 V AC
• Resistive load: 3680 W
• Capacitive load: 16 A, max. 200 µF
• Incandescent lamps: 3680 W
• HV halogen lamps 230V: 3680 W
• LV halogen lamps (conventional transformer): 2000 VA
• LV halogen lamps (electronic transformer): 2500 W
• Fluorescent lamps (uncompensated): 3680 W
• Fluorescent lamps (parallel compensation): 2500 W, 200 µF
• Fluorescent lamps (series compensation): 3680 W, 200 µF
• Compact fluorescent lamps (uncompensated): 3680 W
• Compact fluorescent lamps (parallel compensation): 2500 W, 200 µF
• High-pressure mercury lamps (uncompensated): 3680 W
• High-pressure mercury lamps (parallel compensation): 3680 W, 200 µF
• Maximum surge current: 168 A 20 ms; 800 A 200 µs
• Operating temperature range: 0°C…+45°C
• Storage/transport temperature range: -25°C…+70°C
• Protection degree: IP20
• Maximum tightening torque: 0.5 N·m
• Maximum wire cross-section: 2.5 mm²
• Housing dimensions: 70 x 92 x 60 mm
• Weight: 192 g
• Number of DIN rail modules: 4
• Compliance certificate no.: 324/15896/19
