Módulo de extensão de alarme RF Ei Electronics Ei600MRF

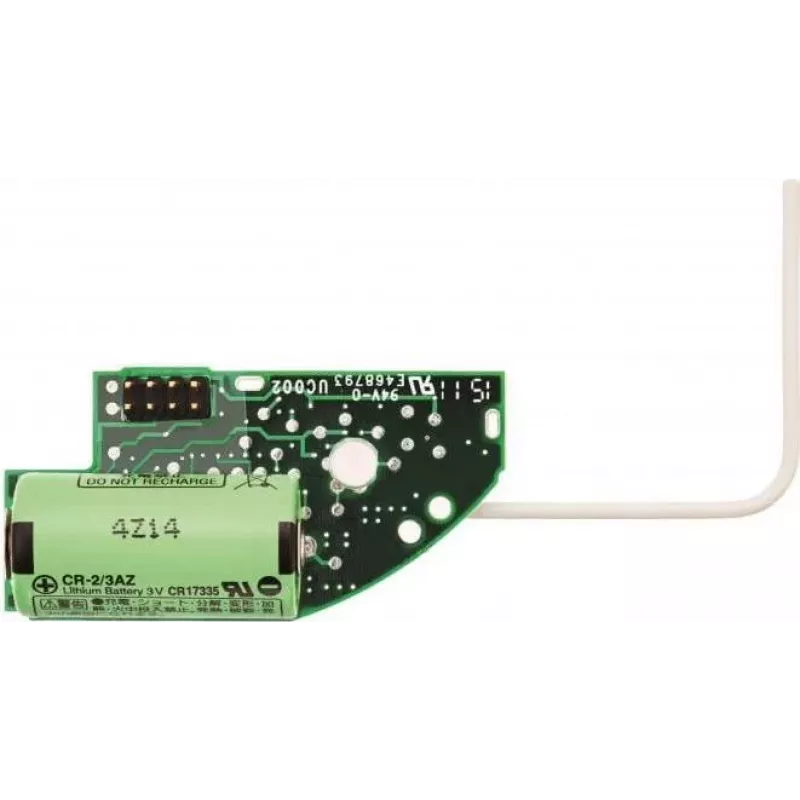

The Ei600MRF is an optional RadioLINK+ add-on RF module for the Ei650-compatible alarm series. Designed to plug into the dedicated slot in the base of the alarm head, the module confirms correct installation when its LEDs flash. It operates at 868 MHz with a transmission range up to 100 m, is powered by an internal lithium battery and has a compact housing (60 mm x 30 mm x 20 mm). The Ei600MRF enables reliable wireless communication and extends the functionality of compatible Ei alarm systems.

Advantages

The Ei600MRF creates a mesh-style RadioLINK network using a TI transceiver to transmit, receive and repeat RF signals, which improves signal robustness and communication paths. A house coding feature restricts communication to designated RadioLINK devices to prevent interference with neighbouring systems. The module supports up to 12 RadioLINK devices and includes remote learn functionality that allows the installer to set or re-activate house coding from a single device.

Suitable for

• Expanding wireless connectivity of Ei650-compatible alarms
• Creating a multi-device RadioLINK mesh network (up to 12 devices)
• Retrofit installations where a compact RF module is required

Key specifications

• Model: Ei600MRF (EI600MRF)
• Frequency: 868 MHz
• Range: up to 100 m (open air, typical)
• Power source: internal lithium battery
• Dimensions: 60 mm x 30 mm x 20 mm
• Compatibility: Ei650-compatible alarm series
• Max devices in mesh: 12 RadioLINK devices
• EAN: 5099383005042

How to use

Insert the Ei600MRF module into the designated slot at the base of a compatible Ei650 alarm head until the LEDs flash, indicating correct fitment. Use the remote alarm learn entry feature to program or re-activate house coding from one device, then add additional RadioLINK devices and assign house codes as needed. Follow the alarm system manual for detailed installation steps, battery handling and safety precautions.

Recommendations

Install the module in accordance with Ei Electronics installation guidelines. Position devices to maintain clear RF paths where possible; monitor RF links through the buddy system and use the RadioLINK tool to download events and diagnostics when commissioning or troubleshooting.
