Módulo de I/O digital/analógico Siemens 6ES7212-1AE40-0XB0 — analógico, fonte de alimentação do sistema, 340 g

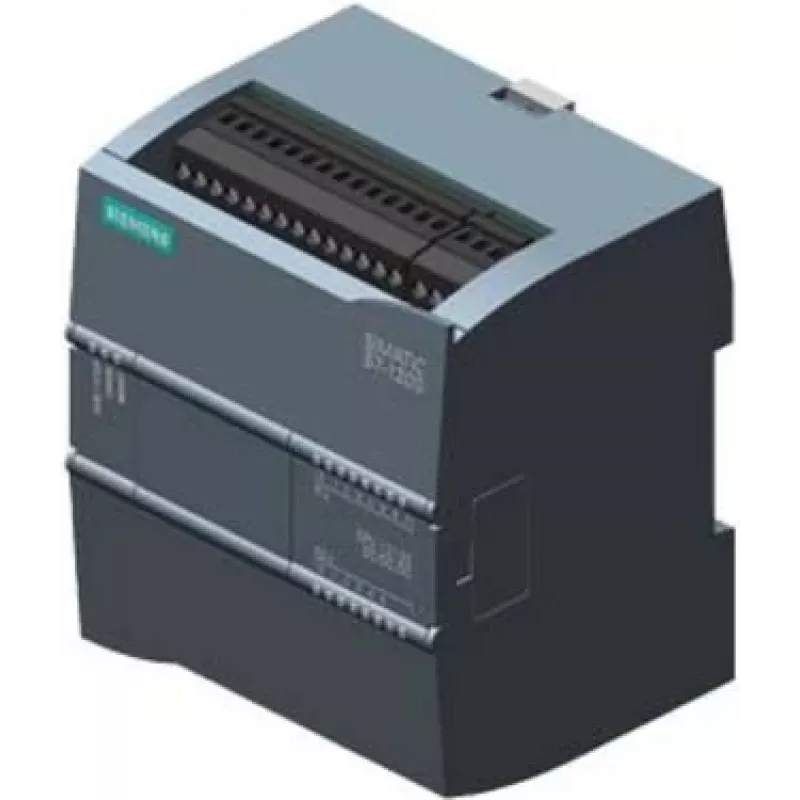

Siemens 6ES7212-1AE40-0XB0 is a digital/analogue I/O module designed for integration into industrial control racks where system power distribution and analog signal handling are required. The module supports both digital and analog interfacing within automation systems, offering a compact form factor with a multicolour casing and a weight of 340 g. With a footprint of 106 mm width and 86 mm depth, it is suitable for space-conscious installations and process control applications.

Advantages

The module combines digital and analogue I/O capabilities in a single unit, reducing the need for separate modules for different signal types. Its compact dimensions and modest weight simplify mounting in standard control racks and panels. Designed by a recognized automation manufacturer, the module provides consistent mechanical compatibility for rack-based systems and straightforward physical integration into existing control architectures.

Suitable for

• Integration in control racks for industrial automation
• Processing and routing of analog signals in process interfaces
• Mixed signal applications requiring both digital and analogue I/O
• Installations with limited panel space demanding compact modules

Key specifications

• Module type: combined digital and analogue I/O
• Physical dimensions: 106 mm (width) × 86 mm (depth)
• Weight: 340 g
• Enclosure style: multicolour casing suitable for rack mounting
• Primary function: system power and analog signal handling

How to use

Mount the module into the designated slot of a compatible control rack following the rack manufacturer’s mechanical and electrical guidelines. Connect analog and digital signal lines according to the system wiring diagram and ensure correct supply of system power before energising. Verify terminal assignments and grounding to avoid signal interference, then perform commissioning checks to confirm input and output behaviour within the automation environment.

Recommendations

Ensure compatibility with the host rack and adjacent modules, observe proper wiring practices for analog signals (shielding and grounding), and follow safety procedures during installation and commissioning to maintain reliable operation in industrial environments.
