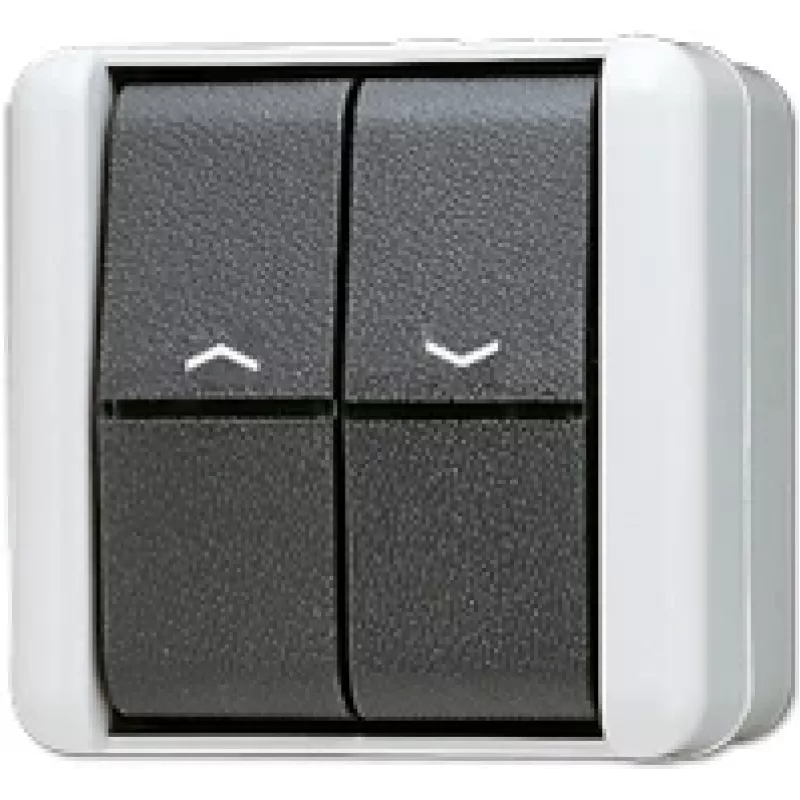

Módulo de interruptor de parede Jung 809 VW 1P, unipolar 10 A, 250 V, preto/branco

Jung 809 VW is a single-pole (1P) wall switch module designed for alternating current installations. Rated for 250 V and a switching current of up to 10 A, this compact module is intended for controlling lighting circuits and small electrical loads in residential and commercial environments. The module is supplied in black and white colour options and features screwless terminals for easy wire connection.

Advantages

The module offers mechanical interlocking to prevent simultaneous switching of both rockers, increasing operational safety and avoiding unintended circuit states. Screwless terminals accept conductors up to 2.5 mm², allowing quick, tool-free insertion and reliable electrical contact. Its compact single-pole design fits standard installation boxes and integrates with Jung wiring systems.

Suitable for

Key specifications

How to use

Install the module into a compatible Jung mounting frame and connect the live conductor to the input terminal and the switched conductor to the output terminal, observing applicable wiring regulations and ensuring power is switched off before starting work. The screwless terminals require the conductor to be inserted and secured by the built-in clamping mechanism; verify a firm connection by a gentle tug test. After wiring, fit the rocker and cover plate, restore power and test the switch operation to confirm correct switching of the connected load.

Recommendations

Use the module within its rated voltage and current limits (250 V, 10 A). For conductors larger than 2.5 mm² or for higher loads, choose an appropriately rated switching device. Ensure installation is performed by a qualified electrician and comply with local electrical codes.
