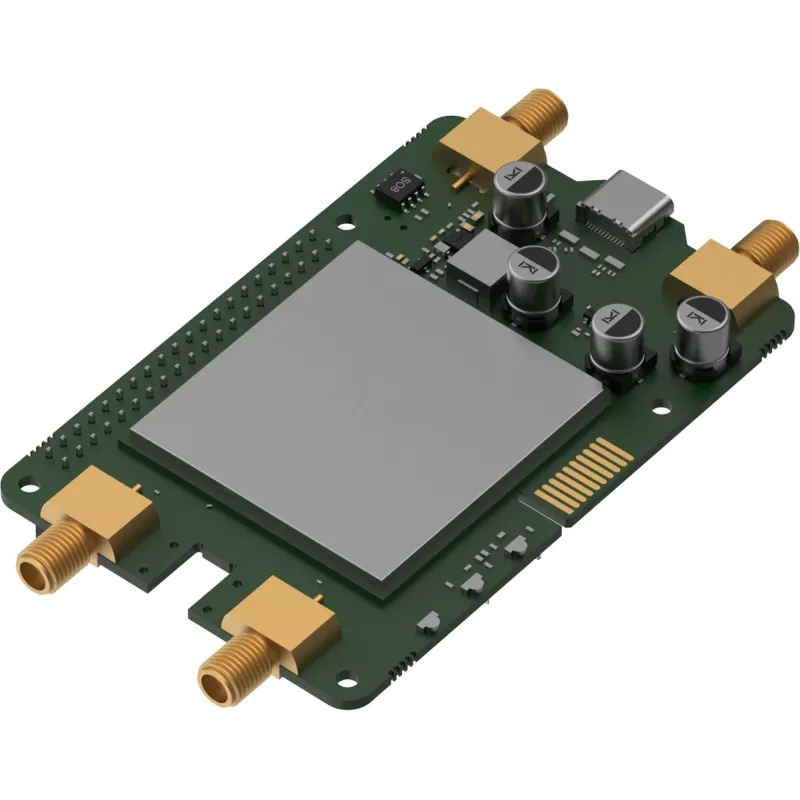

Módulo de rede TELTONIKA Calyx 5G EBD050 para Raspberry Pi 5, entrada 5 V, 56 × 100,8 × 23,1 mm

TELTONIKA Calyx 5G EBD050 is a compact network module designed to mount directly on Raspberry Pi 5 and provide mobile network connectivity. It accepts a 5 V input and supplies 5G cellular access suitable for projects, IoT devices, gateways and remote monitoring solutions. The module's small footprint and Raspberry Pi form factor allow easy integration into existing Pi-based hardware.

Advantages

The module offers low-latency PCM-enhanced audio support and GPIO modem control for wake, reset and management through Raspberry Pi pins. It is available in multiple connectivity variants including 4G Cat 4, 5G RedCap and full 5G to match different bandwidth and deployment requirements. The design prioritizes seamless mechanical and electrical integration with Raspberry Pi 5.

Suitable for

• IoT gateways and edge devices
• Remote monitoring and telemetry systems
• Raspberry Pi 5 based prototypes and projects
• Mobile connectivity add-on for compact embedded systems

Key specifications

• Form factor: compatible with Raspberry Pi 5 mounting
• Input voltage: 5 V
• Cellular connectivity: variants include 4G Cat 4, 5G RedCap or full 5G
• Audio: PCM enhanced, low-latency audio transfer support
• Control: GPIO-based modem control (wake, reset, manage) via Raspberry Pi pins
• Dimensions: 56 × 100.8 × 23.1 mm
• Color: green

How to use

Mount the Calyx 5G EBD050 onto the Raspberry Pi 5 following mechanical alignment and connector guidance of the Pi platform. Supply a stable 5 V power source to the Pi and module, install any required drivers or firmware updates provided by the manufacturer, and configure network settings in the operating system to enable cellular data. Use GPIO pins for modem wake, reset and management as needed by your application.

Recommendations

Use the variant (4G Cat 4, 5G RedCap or full 5G) that matches your network coverage and bandwidth requirements. Ensure adequate signal strength and antenna placement for reliable connectivity, and follow TELTONIKA firmware and driver instructions for stable operation.
