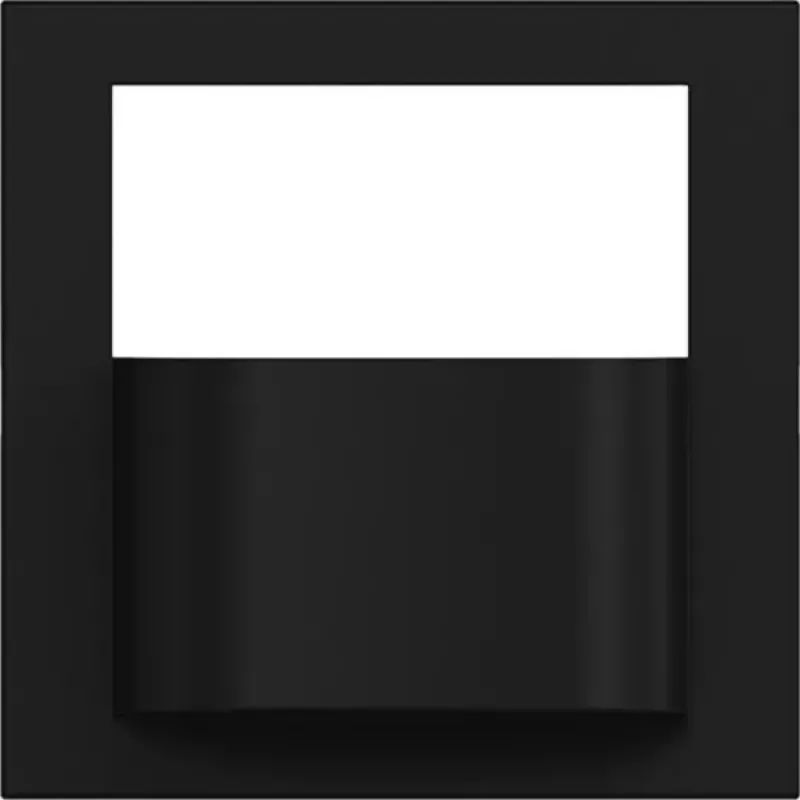

Módulo detetor de movimento HAGER WAN7030BG 1,1/2,2m A.x/C.x

Automate lighting control with the HAGER WAN7030BG motion detector attachment. Designed for indoor use, it enables automatic switching of lights based on movement and ambient light levels, enhancing convenience and energy efficiency in residential and commercial spaces.

Who is it for

This attachment is ideal for electricians and installers integrating motion detection into Hager switch ranges such as S.1, B.3, K.1, Q.1, R.1, R.3, Arsys, and W.1. It suits users seeking reliable presence and motion detection for hallways, offices, or utility rooms.

Main features

• Passive infrared (PIR) sensor with 180° detection angle
• Adjustable light sensitivity from 5 to 1000 lux
• Adjustable time delay from 10 seconds to 10 minutes
• Recommended mounting heights: 1.1 m for presence detection, 2.2 m for motion detection
• Gloss white thermoplastic housing for a clean finish
• IP20 protection rating for indoor environments

Specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 180°
• Light sensor range: 5 - 1000 Lux
• Time delay: 10 s - 10 min
• Mounting height: 1.1 m (presence), 2.2 m (motion)
• Protection class: IP20
• Colour: Gloss White
• Material: Thermoplastic
• Operating temperature: -5°C to +45°C
• Compatible with Hager switch ranges: S.1, B.3, K.1, Q.1, R.1, R.3, Arsys, W.1

Tips

For optimal presence detection, mount at 1.1 m height; for motion detection, mount at 2.2 m. Adjust the light sensor to prevent activation during daylight and set the time delay according to the area's usage patterns.
