Módulo GPS 70mai GPS03 — Recetor GPS externo para dashcams, rastreamento GPS

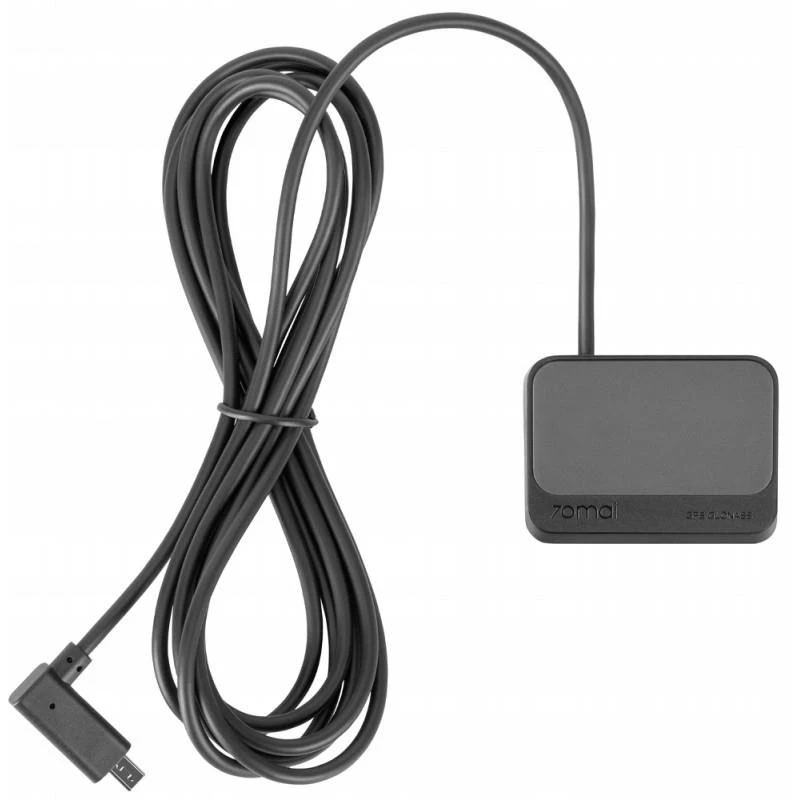

External GPS Module compatible with 70mai Dash Cam Lite 2. The 70mai GPS03 is an external GPS/GLONASS/Beidou receiver that attaches to a dashcam to record vehicle position, speed and route data. The unit features a compact 25 mm × 25 mm antenna and a 2 m cable for in-vehicle installation, providing GPS tracking and logging alongside recorded video.

Advantages

The GPS03 adds precise location and speed metadata to dashcam recordings, supporting GPS, GLONASS and Beidou satellite systems for improved positioning. Its small antenna (25 mm × 25 mm) and a 2-meter cable allow flexible placement in the vehicle while keeping the dashcam’s footprint unchanged. The module is designed for straightforward connection to compatible 70mai dash cameras to enable route logging and playback with synchronized video.

Suitable for

• Recording vehicle position and speed together with dashcam video
• Trip logging and route analysis
• Providing location data as supporting evidence in incidents
• Use with compatible 70mai dashcams that accept external GPS modules

Key specifications

• Model: 70mai GPS03
• Function: External GPS receiver for dashcams (GPS/GLONASS/Beidou)
• Antenna size: 25 mm × 25 mm
• Cable length: 2 meters
• Compatible device: 70mai Dash Cam Lite 2 (and other compatible 70mai dashcams)
• EAN: 6971669781897
• MPN: GPS03

How to use

Connect the GPS03 module to the compatible 70mai dashcam using the supplied cable and secure the antenna inside the vehicle where it has a clear view of the sky for best satellite reception. Route the cable neatly along trim panels to the dashcam mounting point. Once connected, enable external GPS in the dashcam settings if required; the camera will then embed location and speed data into recorded video files for later review.

Recommendations

For optimal performance, place the antenna where it has minimal obstruction from metal objects and avoid covering it with metallic films. Test satellite lock after installation and check the dashcam’s settings to ensure GPS logging is enabled.
