Módulo Keystone compacto Digitus CAT 6A, blindado, montagem sem ferramentas, conector, 24 unid.

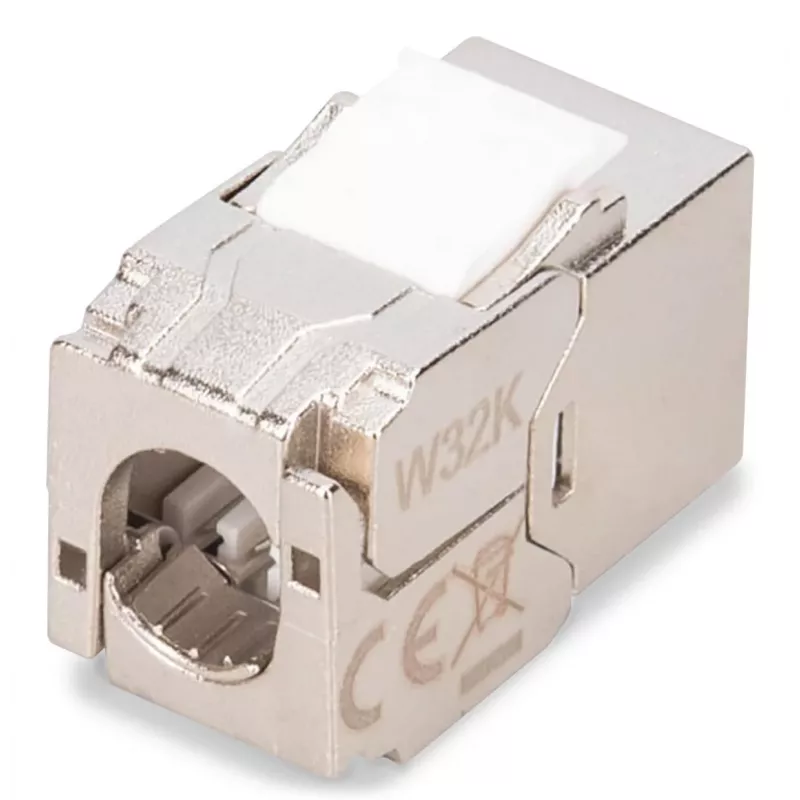

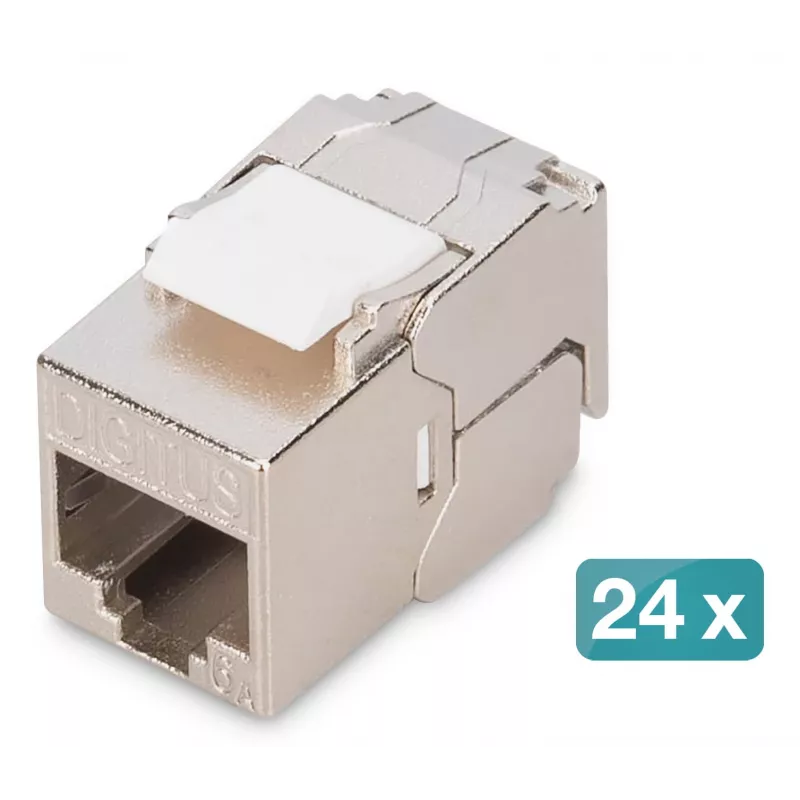

The DIGITUS CAT 6A compact keystone module (DN-93615-S-24) is a shielded, tool-free RJ45 module designed for reliable 10GBase-T network connections. Supplied in a pack of 24, the module supports Cat6A performance up to 500 MHz and is suitable for installation in 19" 1U distribution panels and design-compatible junction boxes. The housing is zinc die-cast with 360° shield contacting and the contact surfaces are nickel with 0.5 μ gold plating for long-term signal integrity.

Advantages

Tool-free field assembly via LSA insulation displacement connectors simplifies installation and reduces the need for special tools. The compact design allows dense series installation in 483 mm (19") 1U panels while remaining compatible with modular junction boxes. The module supports PoE standards (IEEE 802.3 af/at/bt) including PoE+ and 4PPoE in permanent link, and offers tested mechanical durability with at least 750 mating cycles.

Suitable for

• Structured cabling in server rooms and wiring closets
• 19" 1U patch panels for high-density installations
• Modular junction boxes and wall outlets requiring shielded Cat6A connections
• PoE and PoE+ powered devices including 4PPoE applications

Key specifications

• Standard: Category 6A (10GBase-T), 500 MHz
• Compliance: ISO/IEC 11801 3rd Edition, EN 50173-1
• PoE support: IEEE 802.3 af/at/bt (PoE, PoE+, 4PPoE in permanent link)
• Connector: RJ45 (8P8C), female

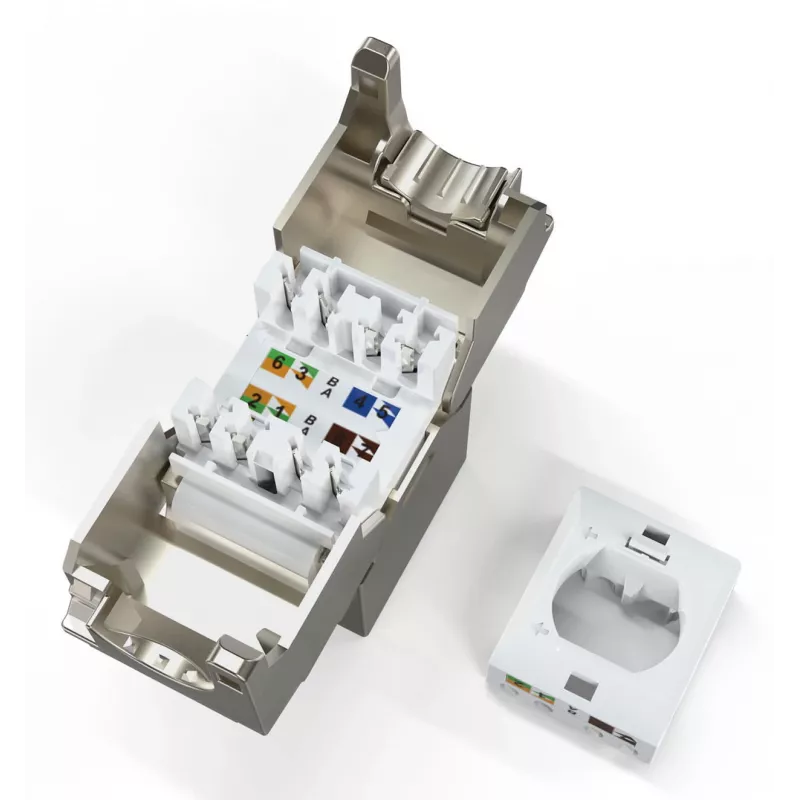

• Termination: LSA insulation displacement connectors, color-coded EIA/TIA 568 A & B
• Shielding: 360° shield contacting; housing zinc die-cast, nickel-plated
• Contact material/coating: Phosphor bronze; nickel with 0.5 μ gold plating
• Insertion force: Max. 30 N (IEC 60603-7-51)
• Holding force: 7.7 kg (socket to plug)
• Operating temperature: -20 °C to +70 °C
• Mating cycles: ≥ 750
• Supported conductor sizes: AWG 26/7 – 22/1, stranded and solid; tested with AWG 22/1
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Pack quantity: 24 pieces

How to use

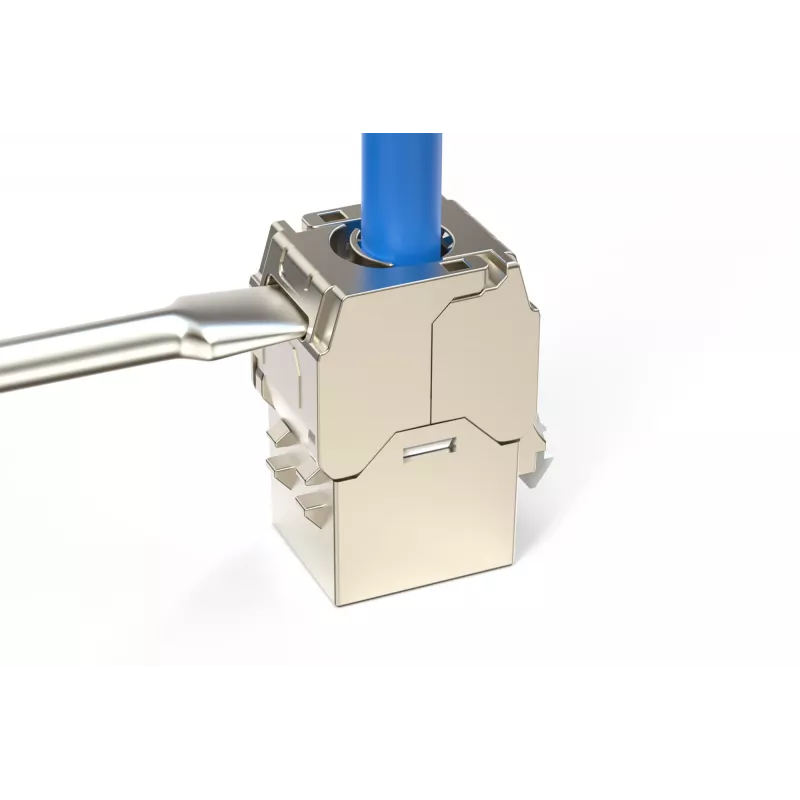

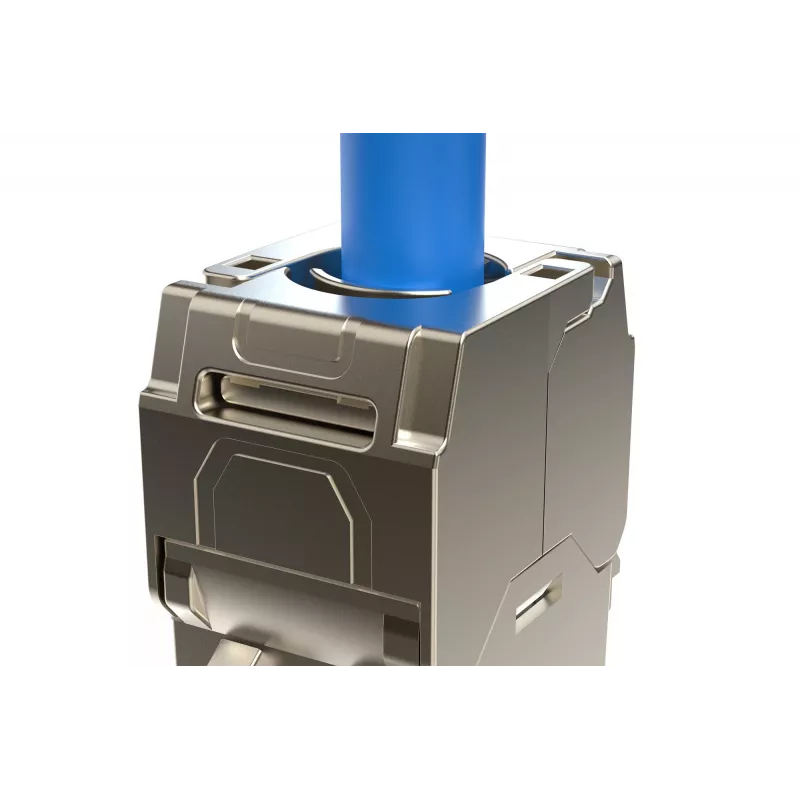

Prepare the network cable by stripping the outer jacket and arranging the conductor pairs according to the chosen EIA/TIA 568 A or B color code. Insert the conductors into the LSA insulation displacement connectors and press into place using the appropriate LSA tool or compatible punch-down device if required; the module also supports tool-free assembly for field installation. Secure the cable with the integrated strain relief and cable ties, then mount the keystone module into a compatible 19" 1U panel or modular junction box. Connect network devices using a standard RJ45 patch cable.

Recommendations

For optimal performance, use solid AWG 22/1 installation cable (tested configuration) and ensure full 360° shield continuity by correctly grounding the panel or chassis. Avoid excessive bending of cables at the termination point and follow EIA/TIA wiring standards for best signal performance.
