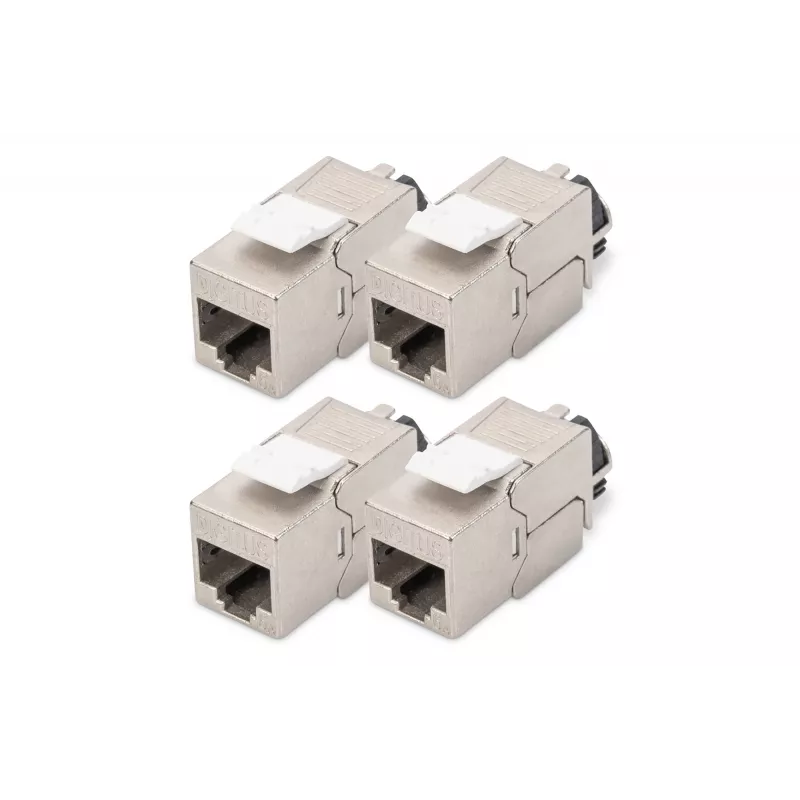

Módulo Keystone Digitus Cat. 6A blindado 4 unid. Prateado RJ-45

The Digitus Cat. 6A Keystone Module (4 pcs, silver) is a shielded RJ45 keystone insert designed for high-speed Ethernet installations. It combines a compact flat construction with a 360° shield contact and an intelligent, resealable cable manager for tool-free field assembly. The module is compatible with standard 19" (483 mm) 1U panel series and fits design-compatible modular junction boxes.

Advantages

This Cat. 6A keystone module provides full shielding with 360° shield contact, an intelligent cable manager that secures cable grip and fixation, and a dust protection cap for the RJ45 jack. It supports PoE standards IEEE 802.3af/at/bt (PoE, PoE+ and 4PPoE) and uses an LSA insulation-displacement connector with color coding for EIA/TIA 568 A & B. The flat, compact design enables high-density installation and compatibility with distribution panels and junction boxes.

Suitable for

• High-speed Ethernet networks requiring Cat. 6A performance
• Shielded installations where EMI protection is needed
• 19" (483 mm) 1U patch panels and distribution cabinets

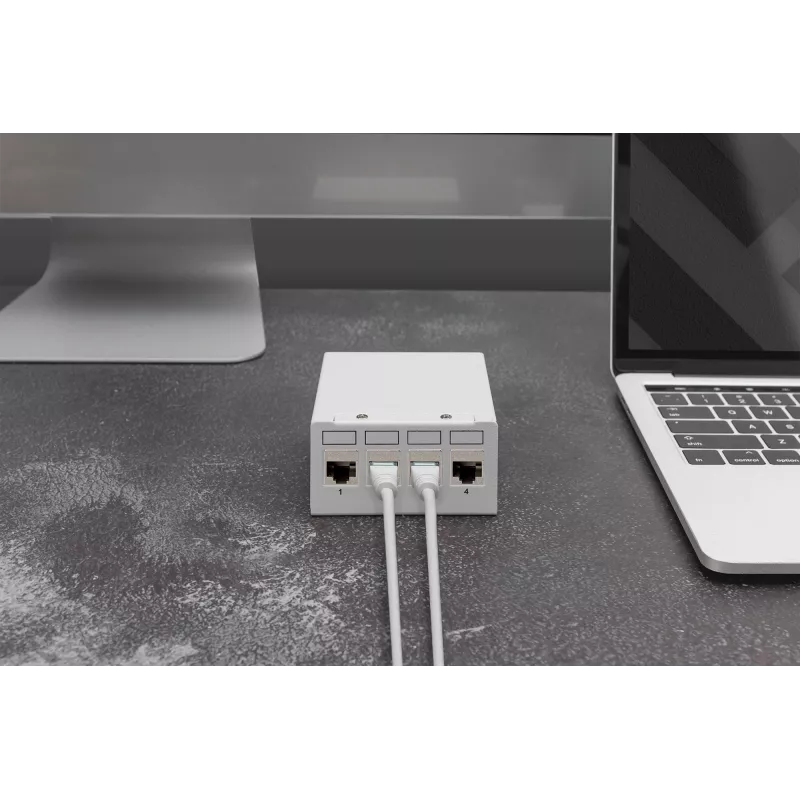

• Modular junction boxes and wall-mounted outlet frames

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-93617-4
• EAN: 4016032490609
• Category: Cat. 6A, shielded keystone module (RJ45)
• Quantity: 4 pieces
• Connector: RJ45 shielded
• Contact: 360° shield contact
• Cable termination: LSA insulation-displacement connector (EIA/TIA 568 A & B color coding)
• PoE support: IEEE 802.3af, 802.3at, 802.3bt (PoE, PoE+, 4PPoE)
• Mounting: distribution panel (19", 1U) or junction box
• Dimensions (W×D×H): 14.5 mm × 34.5 mm × 21 mm
• Color: Silver
• Certification: GHMT certified

How to use

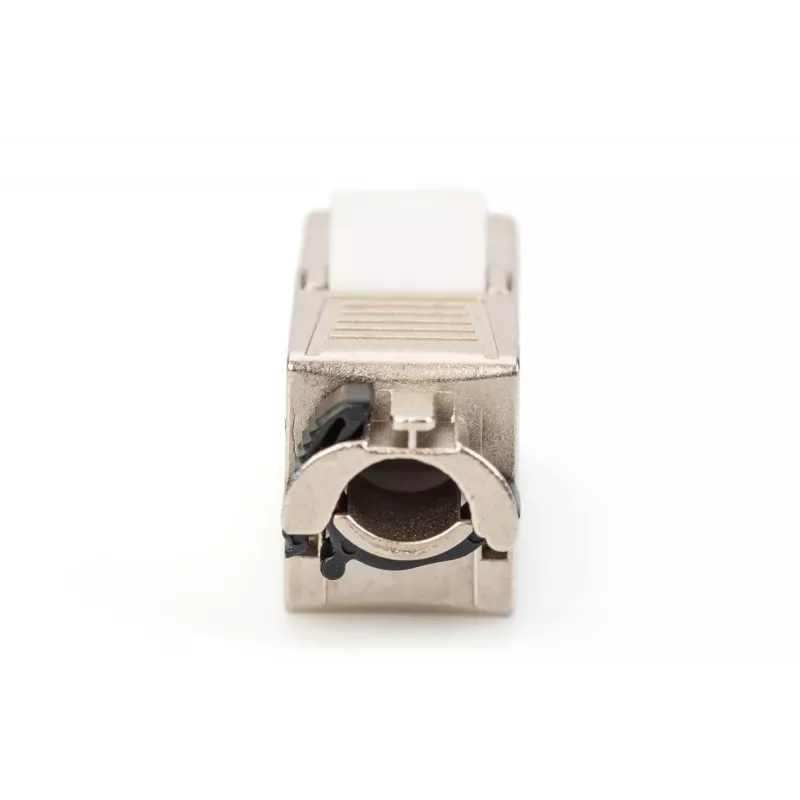

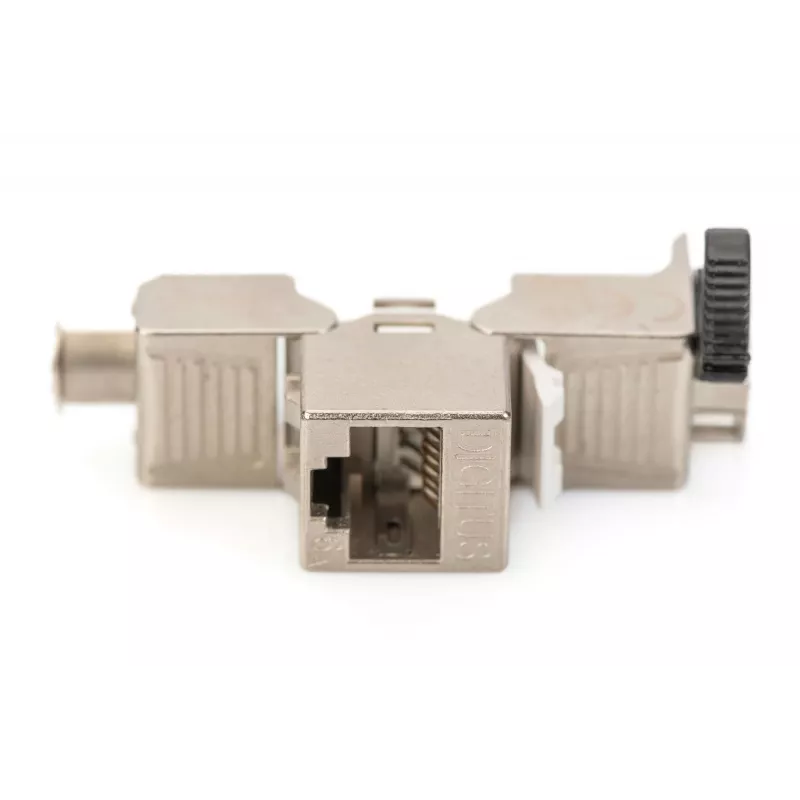

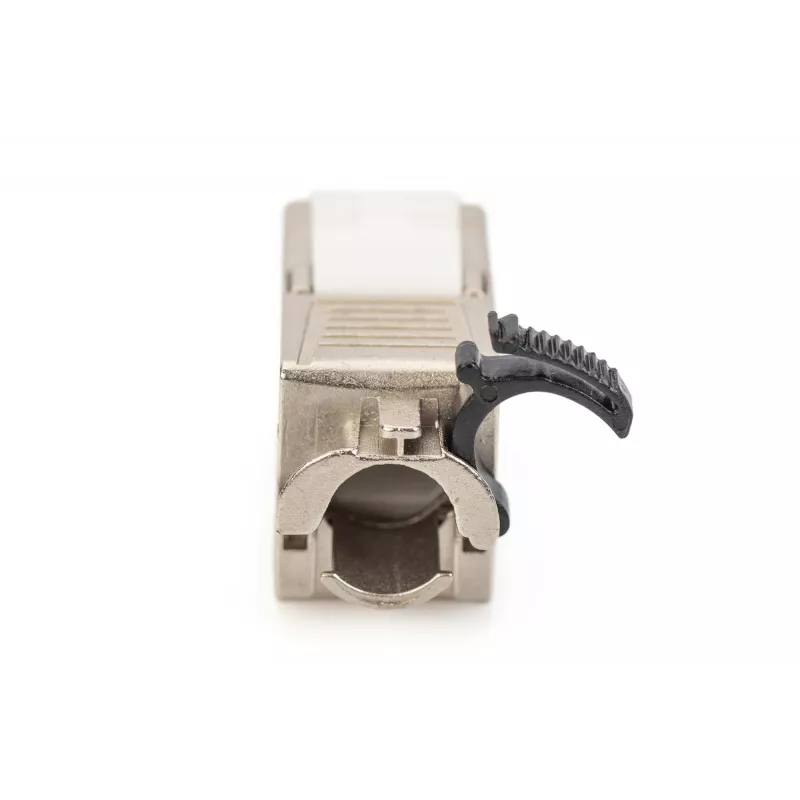

Terminate the shielded Ethernet cable using the intelligent cable manager and the LSA insulation-displacement connector following the EIA/TIA 568 A or B color code. Ensure the cable shield makes contact with the module for 360° shielding, snap the keystone module into the panel or junction box opening, and close the resealable cable manager to fix the cable. Use the dust protection cap on the RJ45 jack when the port is not in use.

Recommendations

For reliable shielding and optimal PoE delivery, use fully shielded cables (S/FTP or F/UTP) and ensure proper grounding of the distribution panel or junction box. Install modules in accordance with local cabling standards and the EIA/TIA 568 wiring scheme chosen for your installation.
