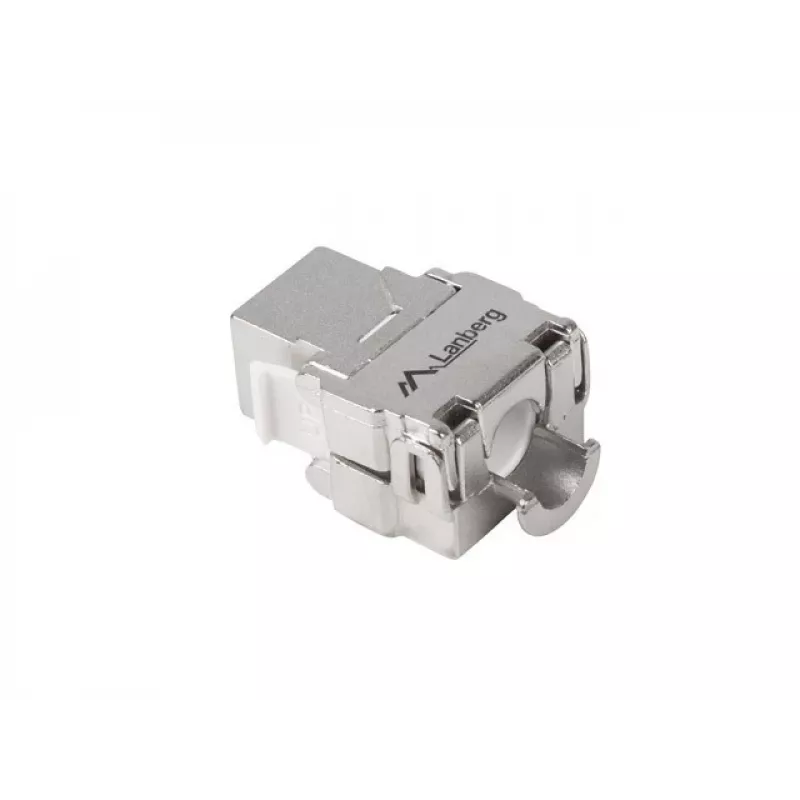

Módulo keystone Lanberg KSFA-2000

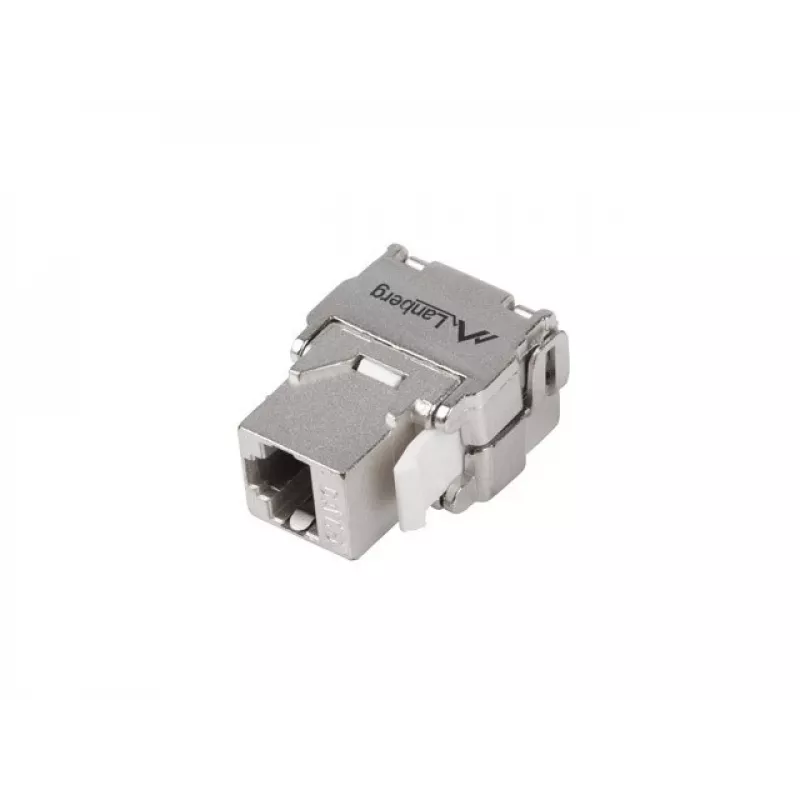

Keystone module Lanberg KSFA-2000 is a flat, tool-free FTP RJ45 Cat.6a keystone socket in silver color. The module measures 14.5 mm (width) x 16.10 mm (height) and fits into any keystone adapter or plate opening with matching dimensions, such as 45x45 faceplates, electrical frames and modular panels. It includes an RJ-45 port with an IDC connector cover and marking for both 568A and 568B wiring schemes and is built on a PCBA printed circuit board.

Advantages

The module supports Cat.6a FTP performance and allows tool-free termination using the IDC cover; it is compatible with both 568A and 568B colour sequences. Its slim, flat design and standard keystone dimensions make it easy to install in a wide range of adapters and mounting frames. Universal slotted joints provide compatibility with LSA tools when needed.

Suitable for

• Structured cabling in offices and data closets
• Installation into 45x45 faceplates and modular patch panels
• Upgrading existing keystone-based outlets to Cat.6a FTP

Key specifications

• Model: Lanberg KSFA-2000
• Connector: RJ-45, Cat.6a FTP
• Termination: IDC with 568A/568B colour codes
• Dimensions (W×H): 14.5 × 16.10 mm
• Colour: Silver
• PCB: PCBA printed circuit board
• Pack quantity: 1 piece

How to use

Insert the module into a compatible keystone adapter or faceplate opening sized for 16.10 × 14.50 mm. Strip the cable sheath, arrange conductors following either the 568A or 568B colour sequence marked on the IDC cover, and press the wires into the IDC termination. If desired, use an LSA-compatible tool with the universal slotted joints for secure connections. Snap the module into the frame until it locks in place and connect the RJ-45 plug as required.

Recommendations

For reliable Cat.6a FTP performance, use shielded twisted-pair cable and ensure correct grounding of the shield. Verify wiring with a network tester after termination and avoid excessive cable twisting or bending near the module.
