Módulo Keystone RJ45 DELOCK 90721 Cat.6A UTP 180° conector fêmea LSA

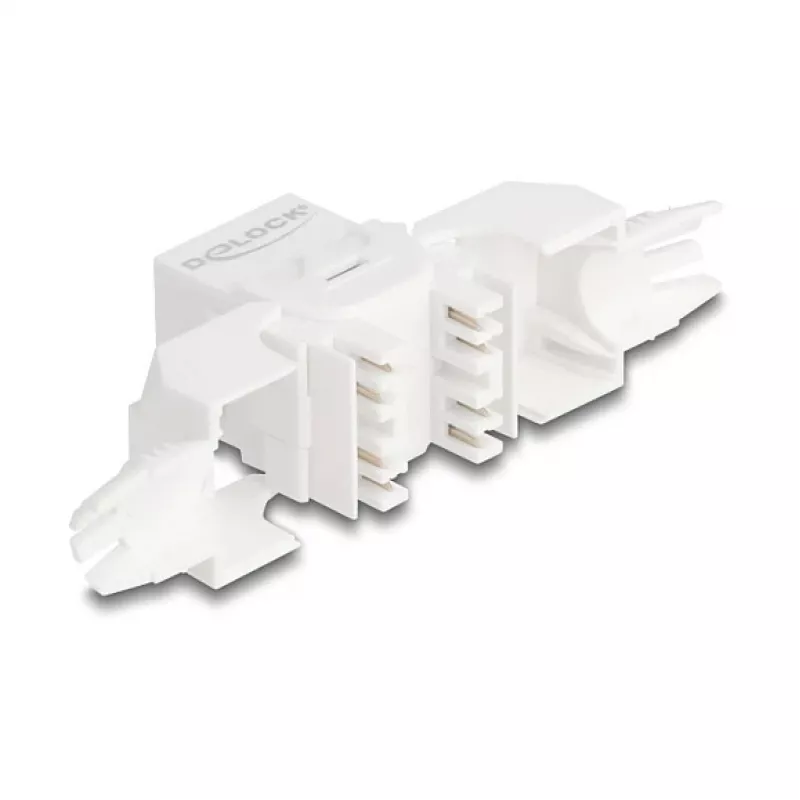

Keystone RJ45 module DELOCK 90721 Cat.6A UTP 180° socket LSA is a compact keystone insert designed for structured cabling and patching solutions. It supports unshielded twisted pair cabling up to Category 6A and provides reliable performance for Gigabit and 10 Gigabit Ethernet links where a 180° termination orientation is required. The module uses LSA contacts to secure conductor connections and fits standard keystone panels and wall plates for flexible installation in racks, cabinets, and outlet boxes.

Advantages

The module enables high-speed data transmission over Cat.6A UTP cabling while maintaining low insertion loss and accurate contact alignment through LSA termination. Its 180° orientation allows convenient cable routing behind panels and makes the module suitable for compact setups where rear access is preferred. The keystone form factor ensures compatibility with common faceplates and patch panels, simplifying upgrades and maintenance in structured networks.

Suitable for

Key specifications

How to use

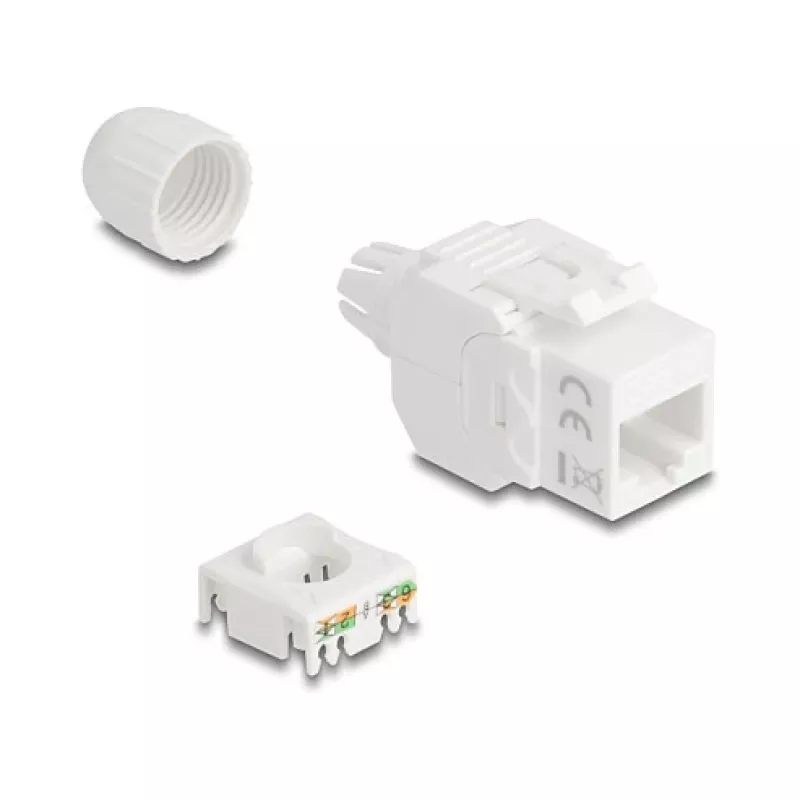

Prepare the UTP cable by stripping the outer sheath and arranging the four twisted pairs according to the wiring scheme required by your network (T568A or T568B). Insert individual conductors into the LSA termination slots and use a compatible punch-down tool to seat and trim the wires cleanly. Snap the keystone module into a compatible faceplate or panel cutout until it locks into place. After assembly, verify continuity and performance with appropriate network testing equipment to confirm correct terminations and link performance.

Recommendations

For reliable Cat.6A performance, use high-quality UTP cable rated for Cat.6A and maintain proper pair untwist limits during termination. Avoid sharp bends and mechanical strain near the module; secure cables with cable management hardware. Test each link after installation for insertion loss, return loss and crosstalk to ensure compliance with your network requirements.
