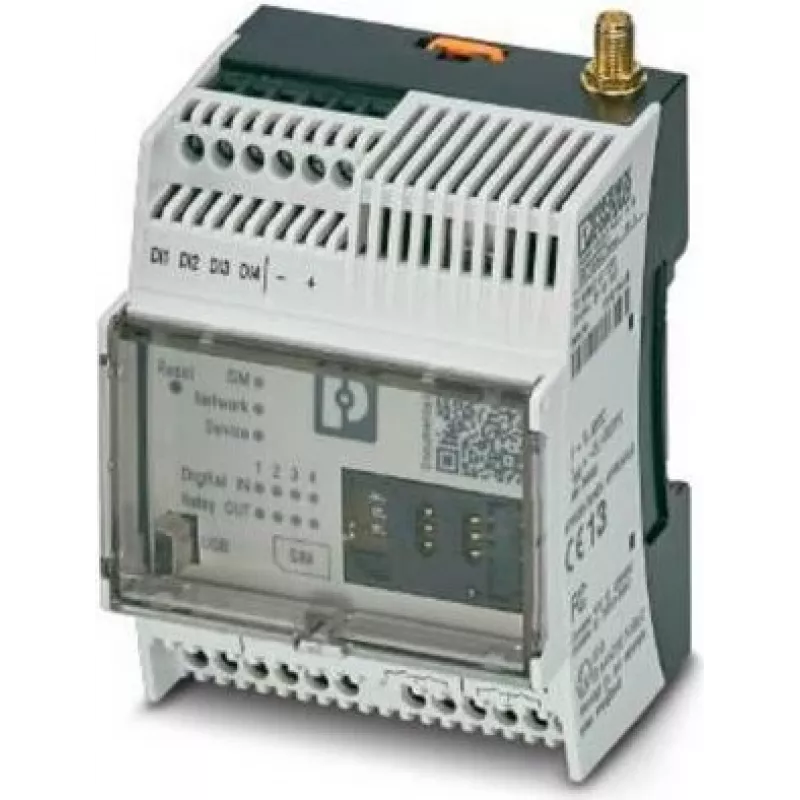

Módulo modem móvel industrial Phoenix Contact 1038567, 4G LTE, GSM, GPRS, EDGE, calha DIN, cinzento

In industrial automation and remote monitoring, reliable cellular connectivity is non-negotiable. The Phoenix Contact 1038567 is a modular mobile radio module engineered for machine-to-machine (M2M) communication in demanding environments. It supports 2G (GSM, GPRS, EDGE), 3G (UMTS, HSPA+), and 4G LTE networks, ensuring your data reaches its destination even as network infrastructures evolve. With a wide input frequency range of 0.15–80 MHz and support for GSM 850/900/1800 MHz and LTE 2600 MHz bands, this module is ready for global deployment.

Key specifications

• Device type: Modular headend station modulator (mobile radio module)
• Supported cellular networks: 2G (GSM, GPRS, EDGE), 3G (UMTS, HSPA+), 4G LTE
• Supported frequencies: GSM 850/900/1800 MHz, LTE 2600 MHz
• Input frequency range: 0.15 - 80 MHz
• SIM card type: Mini-SIM (2FF)
• Antenna connector: SMA (female)
• Data interfaces: RS-232, USB, Ethernet (RJ45)
• Supply voltage: 10 V DC - 30 V DC (AC 93-250 V via external adapter)
• Power consumption (max): 3.5 W
• Operating temperature: -25 °C to 70 °C
• Mounting: DIN rail
• Housing material: Polyamide (PA)
• Protection class: IP20
• Product colour: Grey
• Max. downlink speed (LTE): 150 Mbps (Cat 4)
• Max. uplink speed (LTE): 50 Mbps (Cat 4)
• Dimensions (W x D x H): 72 x 62 x 90 mm

Why choose it

This module stands out for its rugged design and versatile connectivity. The DIN rail mounting and IP20-rated polyamide housing make it ideal for control cabinets. With support for multiple cellular generations and a wide operating temperature range, it ensures dependable communication in industrial settings, from factory floors to remote utility sites. The inclusion of Ethernet, USB, and RS-232 interfaces allows seamless integration with existing PLCs, HMIs, and SCADA systems.

Ideal use cases

• Remote monitoring of distributed assets such as pumps, valves, and sensors
• Industrial IoT gateways for data collection and cloud connectivity
• Backup communication link for critical infrastructure
• Telemetry and SCADA applications in utilities, transportation, and energy
• Machine-to-machine (M2M) communication in manufacturing

Good to know

The module requires an external antenna (SMA connector) and a Mini-SIM card for cellular operation. It is powered by 10-30 V DC, and an AC adapter (93-250 V AC input) can be used for flexible installation. The device is designed for indoor use (IP20) and should be mounted on a DIN rail within an enclosure if exposed to harsh conditions. No Wi-Fi capability is included; connectivity is via cellular and wired Ethernet.
