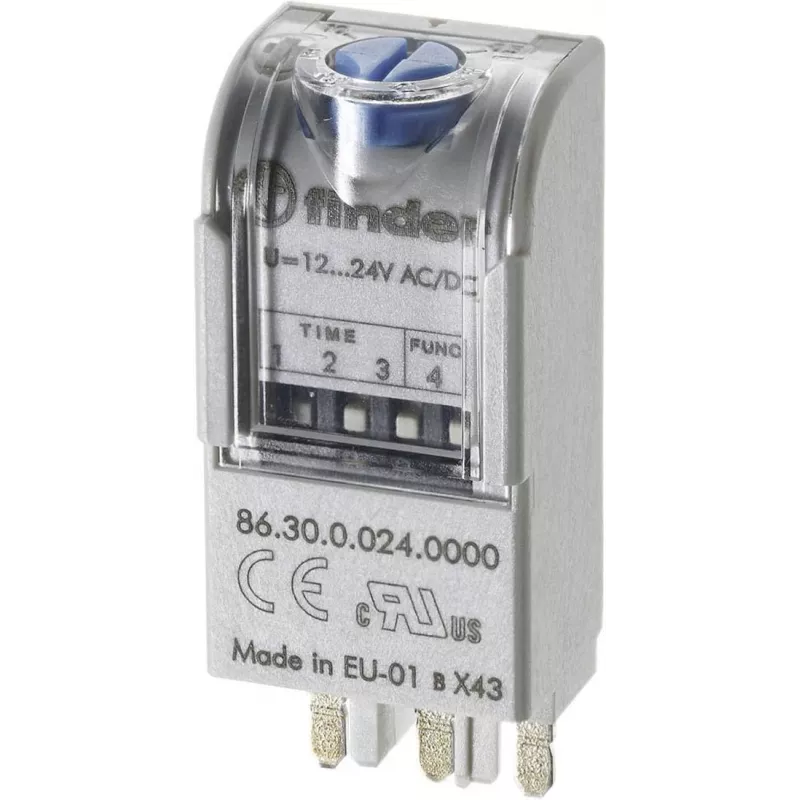

Módulo relé temporizador multifunções FINDER 86.30, 24V AC/DC, 1 CO 16A, 8 funções, 0,05s-100h 863000240000T

Industrial and building automation often requires precise timing control for processes like lighting, ventilation, or machine cycles. The FINDER 86.30 multi-function timer module provides eight selectable timing functions in one compact plug-in unit, eliminating the need for multiple specialized timers.

Who is it for

Panel builders, system integrators, and maintenance technicians who need a reliable, versatile timer relay for DIN-rail or socket-mounted applications. It suits control cabinets in HVAC, pumping, access control, and industrial machinery.

Main features

• 8 timing functions: AI, DI, SW, BE, CE, DE, EE, FE
• Wide time range: 0.05 seconds to 100 hours across 8 selectable scales
• 1 changeover (CO) output contact rated 16 A at 250 V AC
• Supply voltage: 24 V AC/DC
• Plug-in design for 90 series sockets
• LED indicators for supply and output status
• Operating temperature: -20 °C to +70 °C

Specifications

• Product type: Multi-function timer module
• Series: 86
• Supply voltage: 24 V AC/DC
• Output: 1 CO (SPDT)
• Contact rating: 16 A @ 250 V AC (AC1)
• Time range: 0.05 s – 100 h
• Time scales: 8
• Mounting: Plug-in (90 series socket)
• Power consumption: 2.5 VA (AC), 1.5 W (DC)
• Dielectric strength: 2 kV AC (supply-output)
• Mechanical life: 10 x 10^6 operations
• Electrical life: 100 x 10^3 operations (rated load)
• Operating temperature: -20 °C to +70 °C
• Protection degree: IP20 terminals, IP40 front panel
• Indicators: LED for supply and output

Tips

Select the appropriate 90 series socket and retaining clip for secure mounting. Ensure the supply voltage matches 24 V AC/DC before installation. For frequent switching, consider derating the contact current to extend electrical life.
