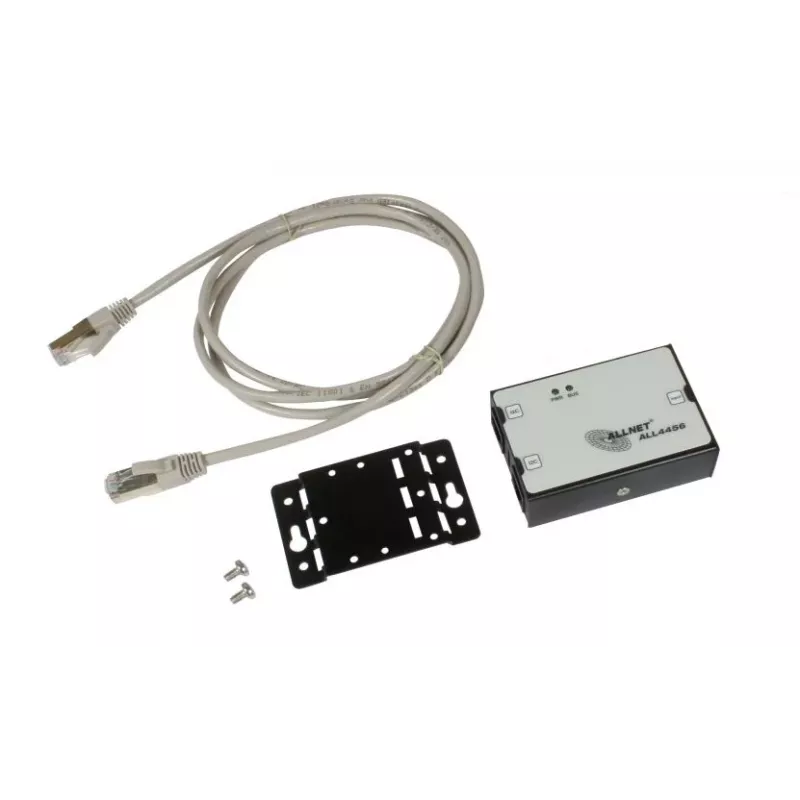

Módulo sensor de fuga de água ALLNET ALL4456 (apenas eletrónica, sondas não incluídas) ALL4456_o._Schwimmer

Detects water presence with a response time under 1 second via a potential-free change-over relay contact rated up to 24V DC / 1A or 230V AC / 0.5A. This ALLNET ALL4456 module is the electronic core for water leakage monitoring in ALLNET MSR systems, requiring external conductive probes (not included) to complete the sensor.

Overview

The ALLNET ALL4456 is a water leakage sensor electronics module designed for integration into ALLNET MSR monitoring systems. It operates on a 10–15V DC supply and consumes a maximum of 50 mA. The module features one input for a pair of external conductive probes, which are not included. When water bridges the probes, the module triggers an alarm, indicated by a red LED and an internal buzzer (switchable). A green LED indicates power status. The relay output provides a change-over contact, selectable between normally open (NO) and normally closed (NC), allowing flexible integration with alarm panels, PLCs, or other control equipment.

What stands out

• Fast detection: response time under 1 second.
• Flexible relay output: change-over contact, NO/NC selectable.
• Audible and visual alarm: internal buzzer and red LED.
• Wide operating temperature range: 0°C to +50°C.
• Supports long sensor cable runs up to 100 meters (depending on cable quality).

Technical details

• Product Type: Water Leakage Sensor Module
• Detection Method: Conductive (requires external probes)
• Sensor Inputs: 1 (for a pair of external conductive probes)
• Output Type: Potential-free Relay Contact
• Relay Contact Configuration: Change-over contact (NO/NC selectable)
• Max. Switching Power (Relay): 24V DC / 1A or 230V AC / 0.5A
• Power Supply: 10 - 15V DC
• Current Consumption: Max. 50 mA
• Alarm Indication: Red LED (Alarm), Green LED (Power), Internal Buzzer (switchable)
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -20°C to +70°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Housing Material: ABS Plastic
• Mounting: Wall mounting (screws)
• Protection Class: IP20
• Compatibility: Designed for ALLNET MSR systems, requires external conductive probes
• Included Components: Electronics module only (external probes/float sensor NOT included)
• Response Time: < 1 second
• Max. Sensor Cable Length: Up to 100 meters (depending on cable quality)

Our verdict

A reliable and fast water leakage detection module for ALLNET MSR installations, offering flexible relay output and clear alarms. Note that external probes are required and must be purchased separately.
