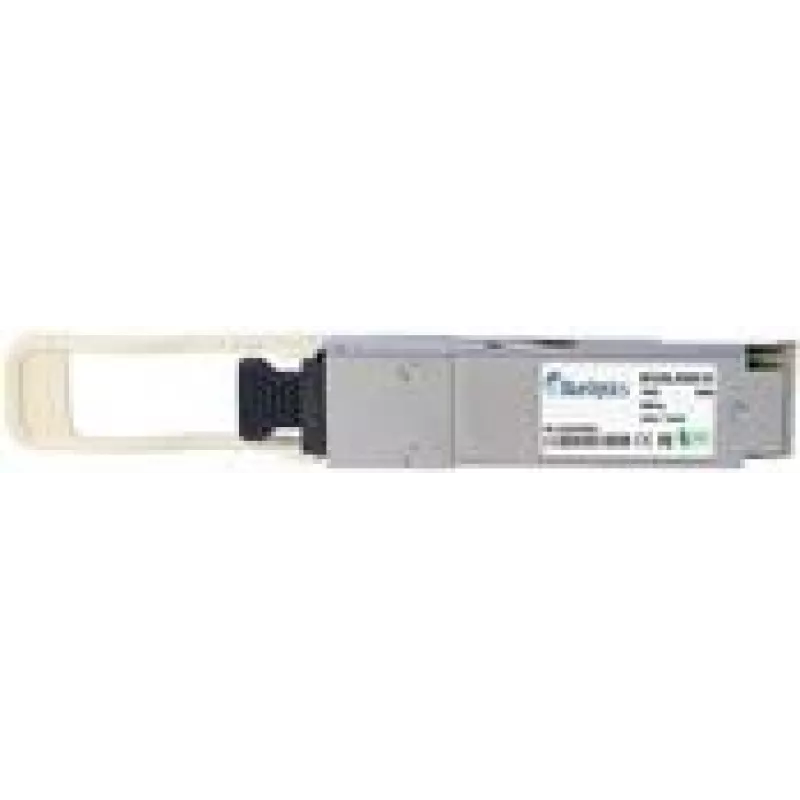

Módulo transceptor de fibra ótica BlueOptics 02313FYX-BO 100000 Mbit/s QSFP28

The BlueOptics 02313FYX-BO is a QSFP28 fiber optic transceiver module designed for 100 Gigabit Ethernet links. It supports a maximum data transfer rate of 100000 Mbit/s and is intended for short-reach multimode fiber connections with an MTP/MPO connector. The module has a compact silver housing, a weight of approximately 40 g, and an MTBF of 1,000,000 hours, making it suited for integration into high-density network equipment where reliable, high-speed data transmission is required.

Advantages

The transceiver provides 100 Gigabit Ethernet performance in a QSFP28 form factor compatible with modern switches and servers. Its MTP/MPO fiber connector enables multi-fiber parallel transmission for high aggregate throughput. With a rated maximum transfer distance of 100 m over multimode fiber and a high MTBF value, the module is built to support continuous operation in data center and enterprise environments while occupying minimal rack or chassis space.

Suitable for

• Data center uplinks and leaf-spine network fabrics
• High-performance server-to-switch connections
• Aggregation switches and core network interconnects
• Environments requiring short-reach multimode fiber links

Key specifications

• Form factor: QSFP28
• Data rate: up to 100000 Mbit/s (100 Gbit/s)
• Interface type: 100 Gigabit Ethernet
• Fiber connector: MTP/MPO
• Maximum transfer distance: 100 m (multimode fiber)
• Product colour: Silver
• Weight: 0.04 kg
• Mean Time Between Failures (MTBF): 1,000,000 hours

How to use

Install the QSFP28 module into a compatible QSFP28 port on a switch, router, or network card following the equipment manufacturer's insertion and removal procedures. Connect an MTP/MPO multimode fiber cable to the module ensuring correct alignment and secure latching. Verify link status and negotiated speed via the host device management interface. For proper operation, use appropriate multimode fiber (OM3/OM4 as recommended by your network design) and ensure patching preserves polarity and connector cleanliness.

Recommendations

Handle the transceiver by the housing and avoid touching the optical ferrule. Keep dust caps in place until ready to connect and inspect or clean connectors before insertion. Use the module within the operating conditions specified by your network equipment vendor and deploy within the recommended multimode fiber types and distances to achieve reliable 100 Gbit/s links.
