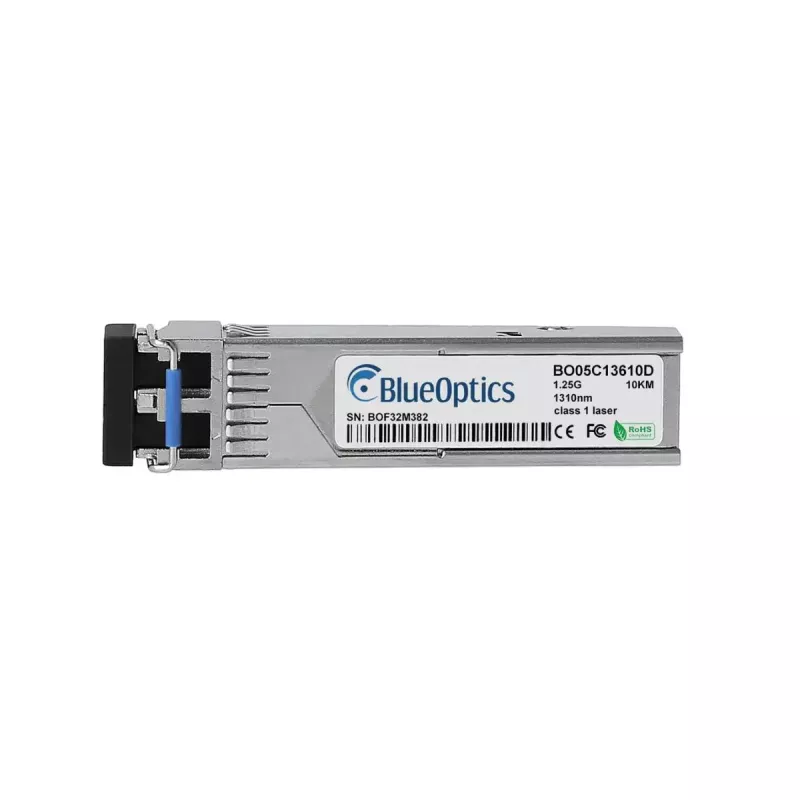

Módulo transceptor de fibra ótica BlueOptics 1AB376720002-BO SFP 10000 m

The BlueOptics 1AB376720002-BO SFP 10000 m is a fiber optic transceiver module designed for single-mode networks and long-distance links up to 10,000 m. Housed in a lightweight aluminium casing and weighing approximately 20 g, this SFP module follows MSA form-factor standards and uses an LC duplex connector for simultaneous transmit and receive over separate fibers. It supports 1000BASE-LX optical transmission with 1310 nm wavelength components and is suited for deployment in compatible switches, routers and storage platforms that accept SFP modules.

Advantages

The module provides reliable optical data transfer over long distances while remaining compact and durable due to its aluminium housing and low weight. Built to MSA standards, it is compatible with a wide range of network equipment and supports common protocols such as Ethernet and Fibre Channel over Ethernet at line rates up to 1.25 Gbit/s. The design reduces susceptibility to electromagnetic interference and, when supported by host hardware, offers digital diagnostic monitoring for real-time operating parameters.

Suitable for

• Long-reach single-mode fibre links (up to 10 km)
• Switch-to-switch and switch-to-router uplinks
• Data centre interconnects and storage network connections
• Replacements or upgrades in systems supporting 1000BASE-LX SFP modules

Key specifications

• Form factor: SFP (MSA compliant)
• Optical mode: Single-mode fibre
• Wavelength: 1310 nm transmit and receive
• Maximum reach: up to 10,000 m (10 km)
• Supported line rate: up to 1.25 Gbit/s
• Connector type: LC duplex
• Housing material and colour: aluminium (silver/metallic)
• Weight: approximately 0.02 kg
• Digital Diagnostics Monitoring (DDM/DOM): supported when enabled by host hardware

How to use

Install the BlueOptics SFP module into an available SFP slot on a compatible switch, router or storage device, ensuring the host equipment supports 1000BASE-LX SFP transceivers and any required DDM functions. Connect LC duplex single-mode fibre patch cords to the module’s LC ports, observing correct transmit/receive orientation. After insertion and connection, verify link status on the host device and confirm negotiated link speed and diagnostics through the host management interface as needed.

Recommendations

For optimal performance, use high-quality single-mode fibre and LC duplex patch cords, minimize tight bends and maintain proper connector cleanliness. Confirm host compatibility with 1000BASE-LX SFP modules and enable DDM/DOM in devices that support diagnostics to monitor supply voltage, laser bias current, transmit power, receive power and temperature. Replace or test modules in controlled maintenance windows to avoid unexpected link interruptions.
