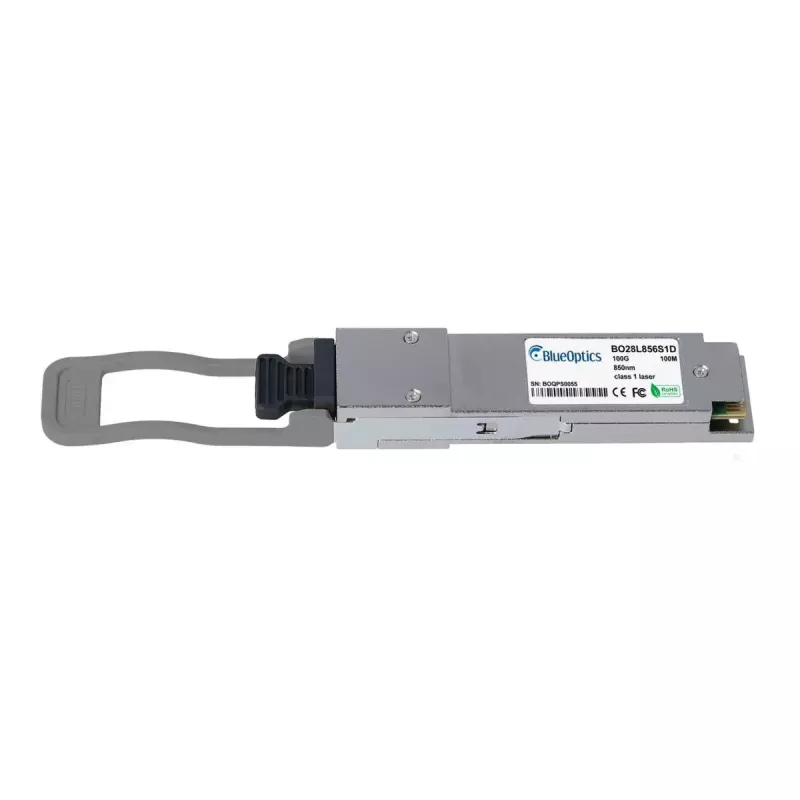

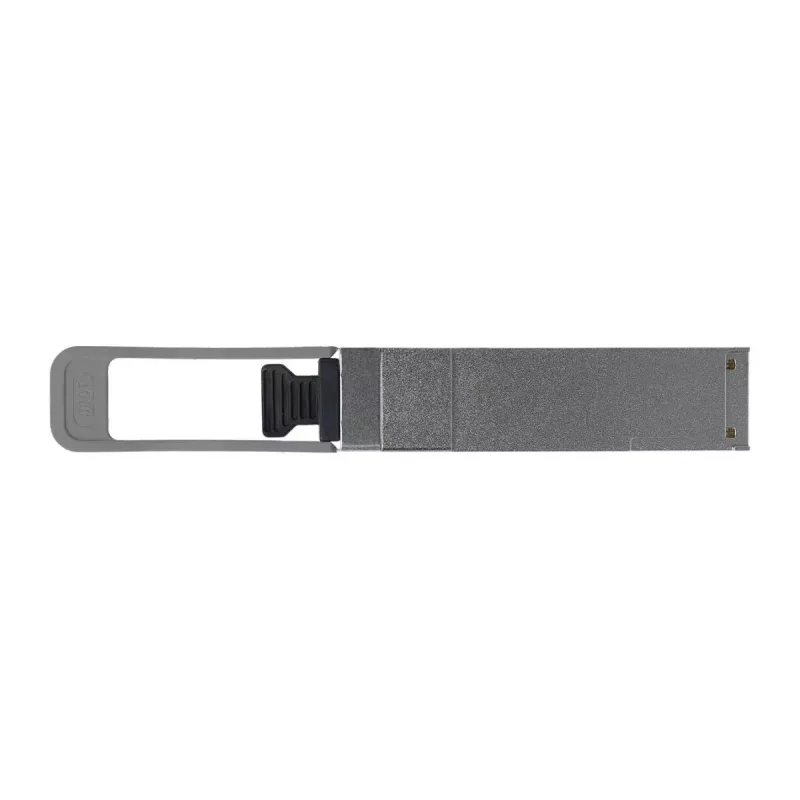

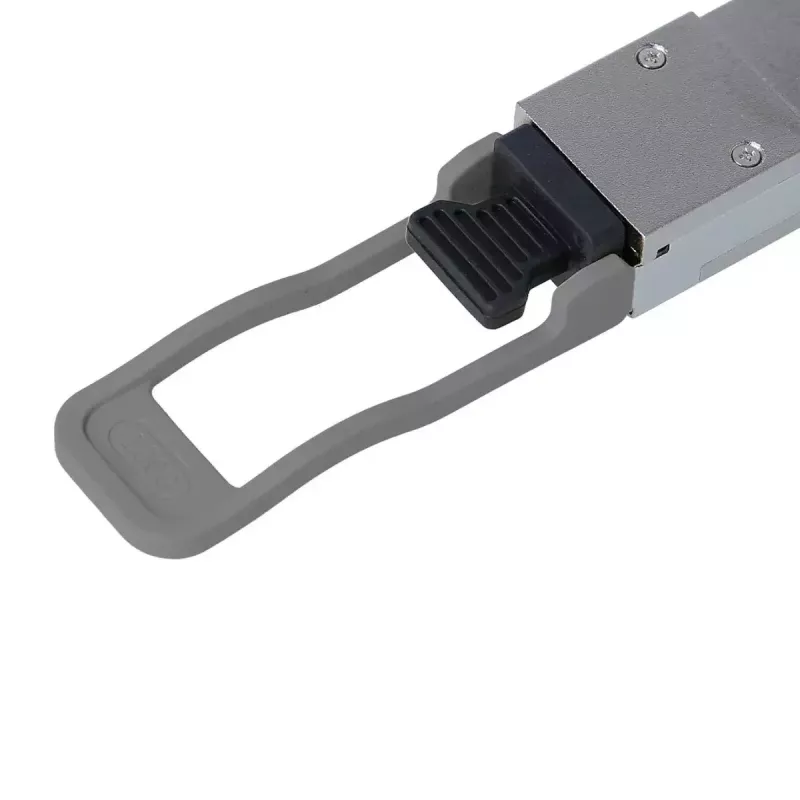

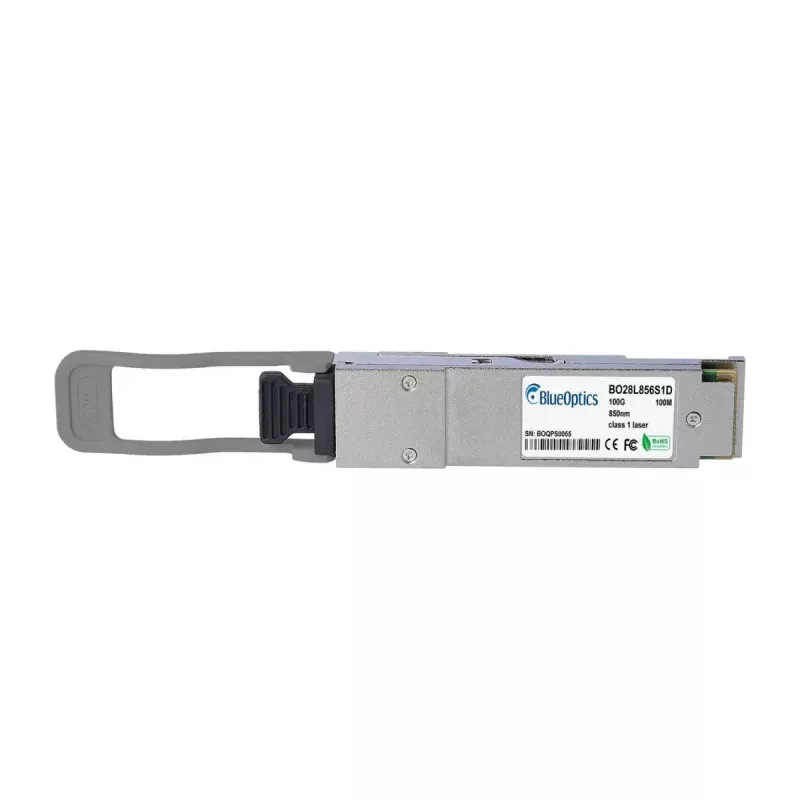

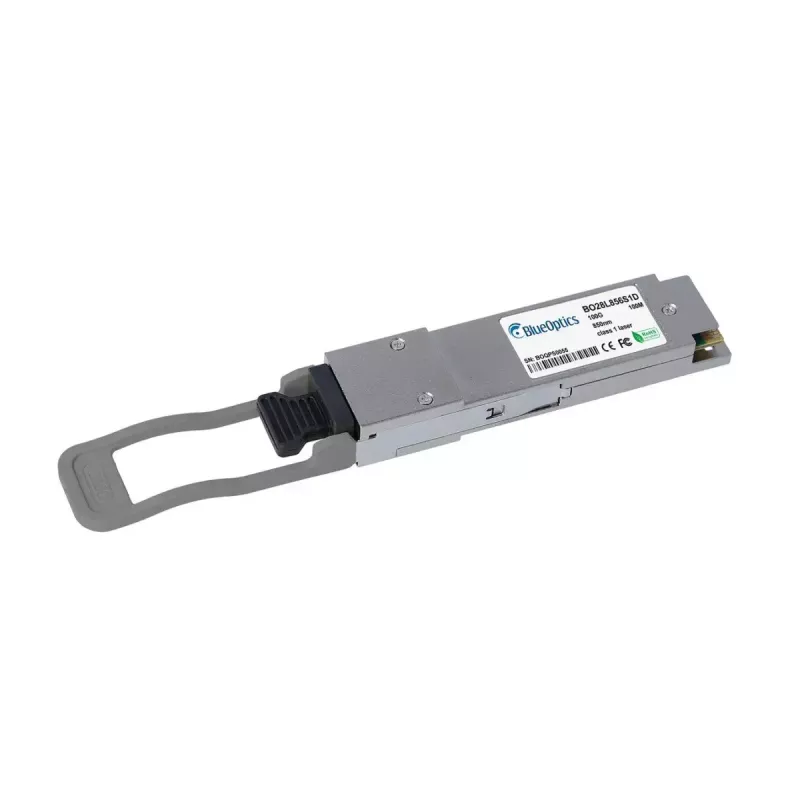

Módulo transceptor de fibra ótica BlueOptics 407-BBYN-BO 100000 Mbit/s QSFP28

The BlueOptics 407-BBYN-BO is a QSFP28 fiber optic transceiver module designed for 100000 Mbit/s (100 Gbit/s) links. It implements a QSFP28 interface in an SFP28-compatible form factor and is intended for short-reach multimode fiber connections using LC Duplex connectors. The module supports bidirectional 100GBASE-SR2-Bidi operation with transmit and receive wavelengths in the 832–918 nm range and has an MTBF of 3,000,000 hours. Weighing approximately 40 g and finished in silver, it is compatible with MSA-compliant hardware platforms that accept QSFP28 modules.

Advantages

The module provides high data throughput up to 100000 Mbit/s in a compact transceiver package, enabling consolidation of high-bandwidth links. Compliance with QSFP28 form-factor specifications and MSA standards ensures interoperability with a wide range of network equipment. Bidirectional SR2-Bidi operation over multimode fiber reduces fiber count by allowing two-way transmission on paired wavelengths. Its long MTBF supports stable operation in data center and enterprise network environments.

Suitable for

• Short-reach 100 Gbit/s connections in data centers and server rooms
• Interconnects between switches, routers and storage systems
• High-bandwidth uplinks and aggregation links
• Multimode fiber installations using LC Duplex connectors

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbit/s)
• Form factor: QSFP28 (SFP28-compatible package geometry noted)
• Optical type: Multimode fiber, 100GBASE-SR2-Bidi operation
• Wavelengths: Transmit and receive in the 832–918 nm range
• Connector: LC Duplex
• MTBF: 3,000,000 hours
• Weight: approximately 0.04 kg
• Colour: Silver

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 port on your network device following the device vendor’s hot-plug procedures. Connect multimode LC Duplex fiber patch cables that match the module’s bidirectional SR2-Bidi fiber type and observe proper polarity and bend-radius guidelines. Verify link negotiation and speed settings in the host device management interface and confirm that firmware or compatibility settings allow use of third-party transceivers where required. When removing the module, power down or follow the platform’s recommended removal procedure to avoid signal disruption.

Recommendations

Use high-quality OM3/OM4 multimode fiber and correct LC Duplex patch cords for optimal performance. Ensure the host platform supports 100GBASE-SR2-Bidi over QSFP28 and, if needed, enable third-party transceiver support in the device firmware. Maintain clean connector end-faces and follow ESD precautions when handling the transceiver to preserve signal integrity and module lifetime.
