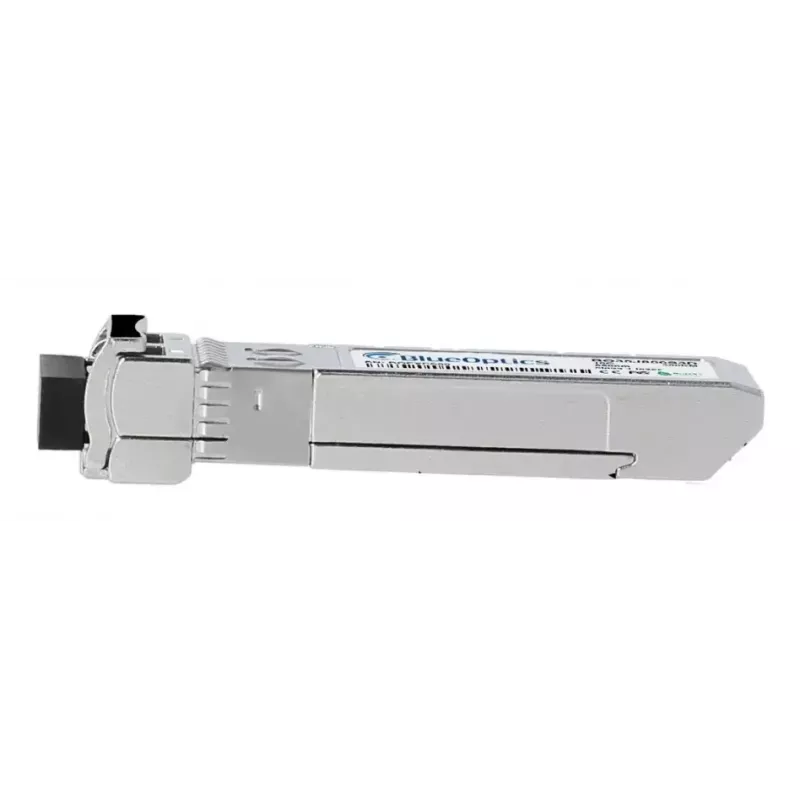

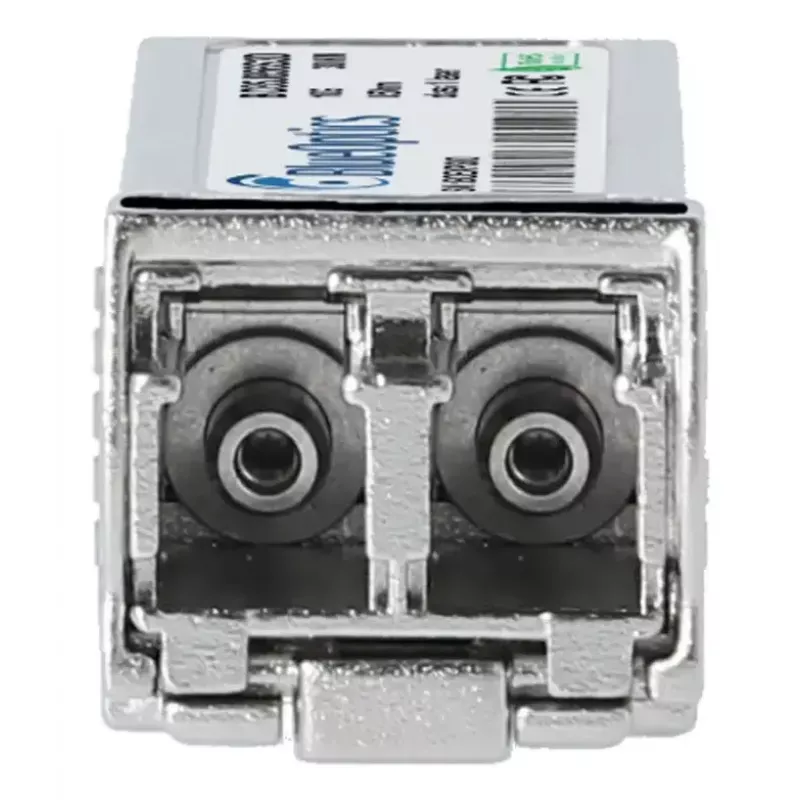

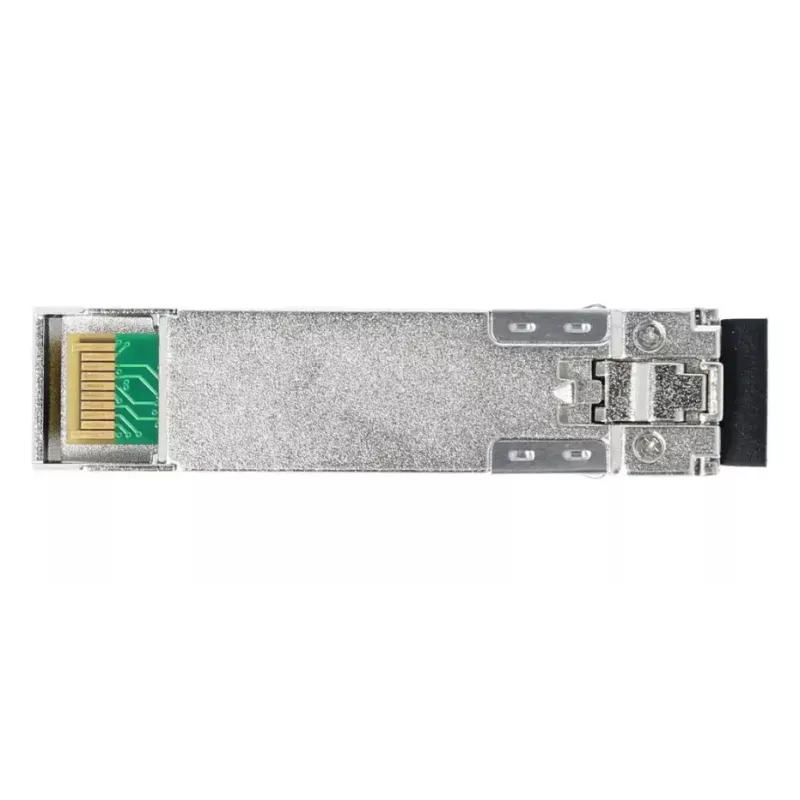

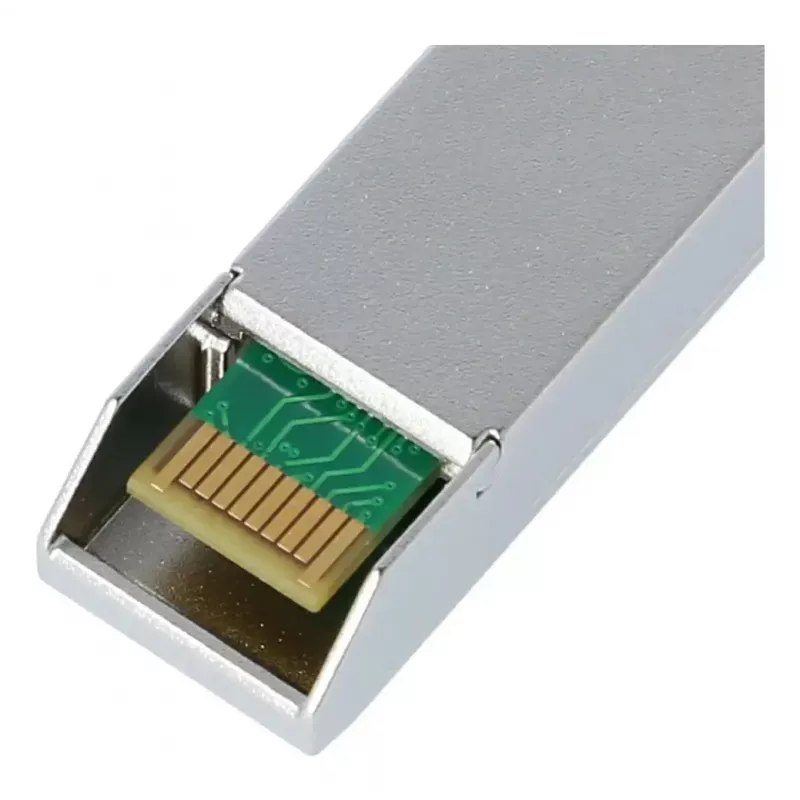

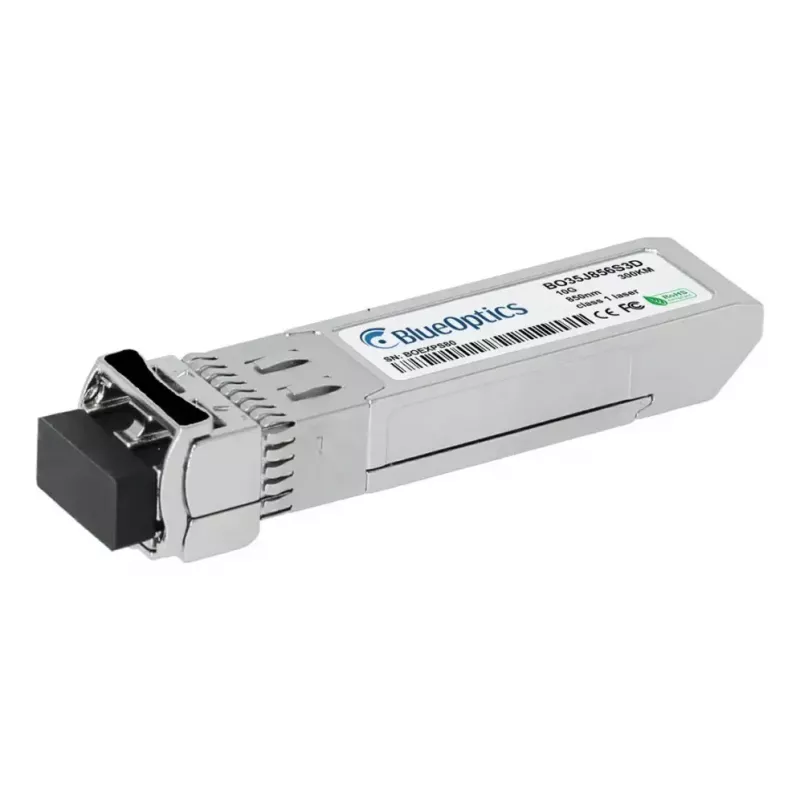

Módulo transceptor de fibra ótica BlueOptics BO35J856S3DIN 10000 Mbit/s SFP+

The BlueOptics BO35J856S3DIN is a fiber optic transceiver module in a compact SFP+ form factor designed for 10 Gigabit Ethernet links. It supports a maximum data transfer rate of 10000 Mbit/s and a maximum optical reach of up to 300 m using LC connectors. The module is lightweight at 20 g, finished in a silver housing, and is built to industry safety and environmental standards including CE, FCC and RoHS. With an MTBF of 3,000,000 hours, it is intended for use in high-speed network equipment where space-efficient SFP+ ports are required.

Advantages

The BlueOptics BO35J856S3DIN offers a compact SFP+ footprint that enables easy installation in switches, routers and media converters with 10 Gigabit Ethernet ports. Its support for 10 Gbit/s throughput and LC fiber connector compatibility make it suitable for short to medium reach fiber links up to 300 m. The module's certified compliance with CE, FCC and RoHS ensures adherence to common regulatory and safety requirements while the specified MTBF of 3,000,000 hours indicates a design focus on long-term reliability. Its low weight and standard mechanical form factor simplify inventory and field replacement.

Suitable for

Key specifications

How to use

Install the BlueOptics BO35J856S3DIN into a compatible SFP+ port on a switch, router or media converter until it seats and latches according to the host device instructions. Connect LC-terminated fiber patch cords to the module ensuring proper polarity and fiber type for the chosen distance. Configure the host device network interface for 10 Gigabit Ethernet operation and verify link status through the device management interface. Handle the transceiver by its housing, avoiding contact with the fiber ferrule and optical surfaces to prevent contamination.

Recommendations

For reliable operation, use clean LC connectors and perform end-face inspection before insertion. Match the transceiver to the appropriate multimode fiber type and ensure patch-cord lengths do not exceed the specified 300 m maximum. Follow the host equipment vendor guidelines for hot-swap procedures and static control during installation.
