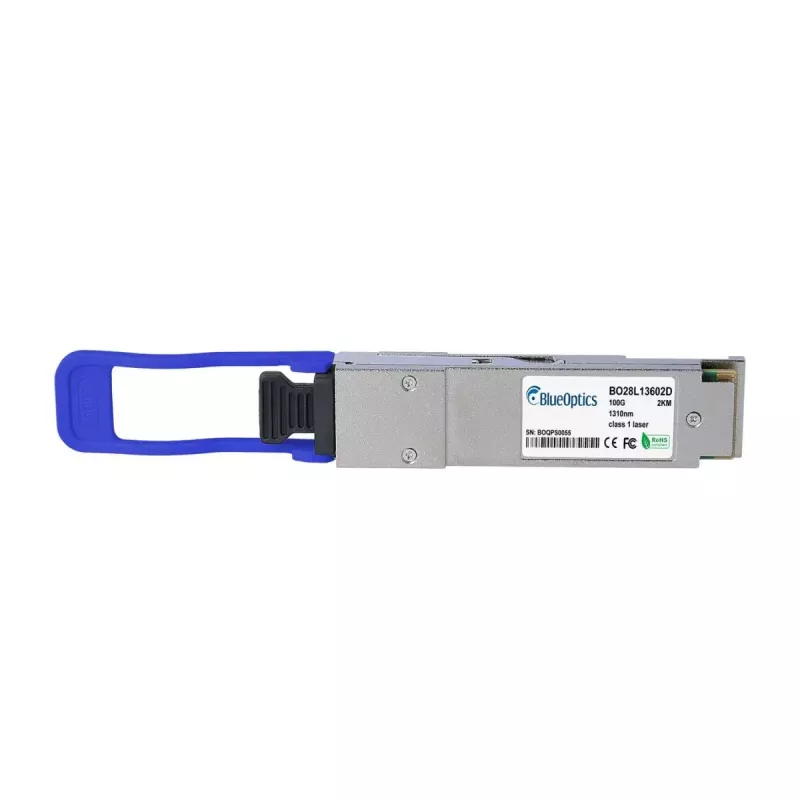

Módulo transceptor de fibra ótica BlueOptics CPAC-TR-100CWDM4-BO 100000 Mbit/s QSFP28

The BlueOptics CPAC-TR-100CWDM4-BO is a fiber optic transceiver module designed for high-speed data transfer up to 100000 Mbit/s. It uses a QSFP28 interface in a metal housing and is intended for installation in compatible network equipment. The module supports CWDM (coarse wavelength division multiplexing) operation over single-mode fiber and is compact and lightweight at approximately 0.04 kg. With an MTBF of 1,000,000 hours it is specified for long-term operation in data centers and high-performance networking environments.

Advantages

The module provides a QSFP28 form factor for 100 Gbit/s links and is built in a durable metal casing to support rack and chassis installations. Its CWDM-capable transmitter and receiver enable simultaneous send and receive on paired fibers using LC duplex connections where supported. The lightweight construction simplifies handling and installation while the high MTBF rating indicates extended operational lifetime and reduced maintenance intervals.

Suitable for

• 100G Ethernet and comparable high-speed links in switches and routers
• Fiber channel over Ethernet and high-speed storage interconnects
• Data center uplinks, aggregation and spine-leaf architectures
• Long-distance single-mode fiber runs within the supported link budget

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s
• Optical technology: CWDM over single-mode fiber
• Connector type: LC duplex (used in CWDM deployments)
• Housing material: metal
• Weight: 0.04 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Install the transceiver into a compatible QSFP28 port of a switch, router or other network device that supports 100G CWDM QSFP28 modules. Use single-mode fiber patch cords with LC duplex terminations or suitable patch panels to connect the transceiver to the remote endpoint. Ensure the host hardware supports the module type and optical diagnostics if required. Handle the module by its edges to avoid contamination of the optical interfaces and follow standard ESD and fiber-cleaning procedures prior to insertion.

Recommendations

Verify host compatibility and software support before deployment, test the link end-to-end after installation, and use certified single-mode LC duplex patch cords and clean connectors to achieve optimal performance and the rated transmission range.
