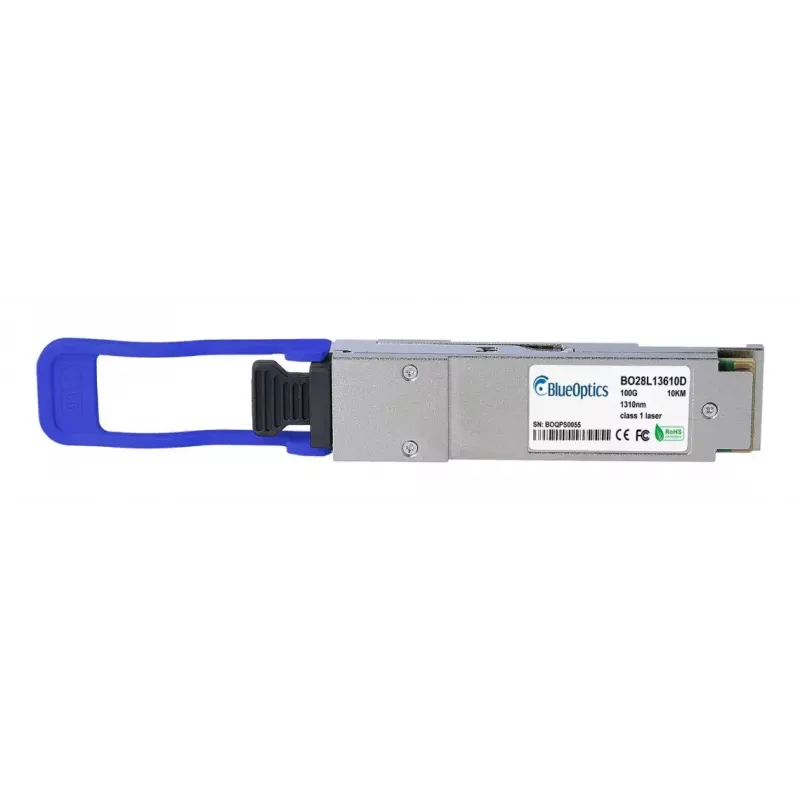

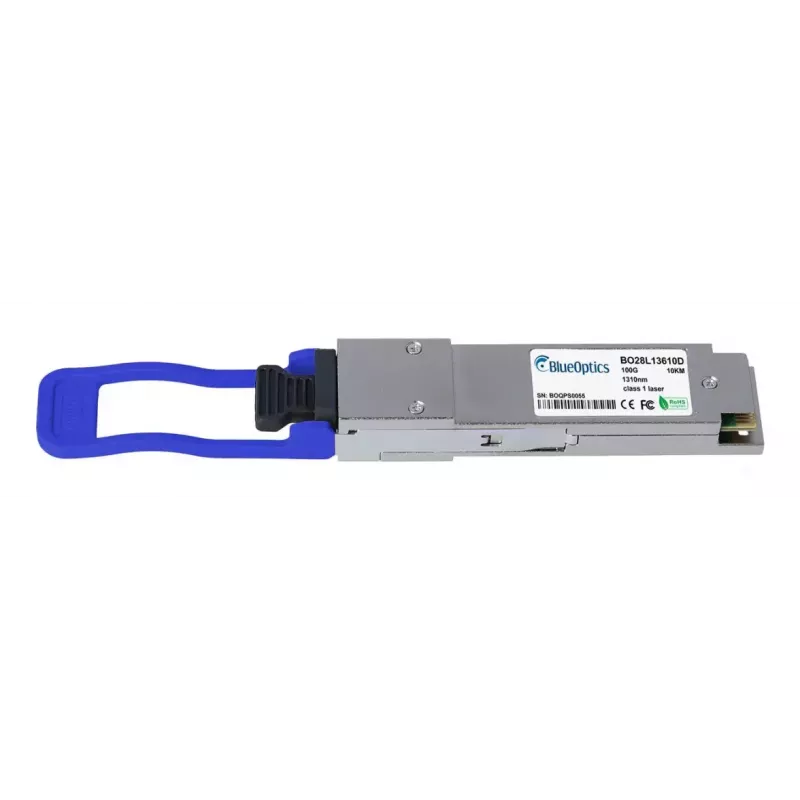

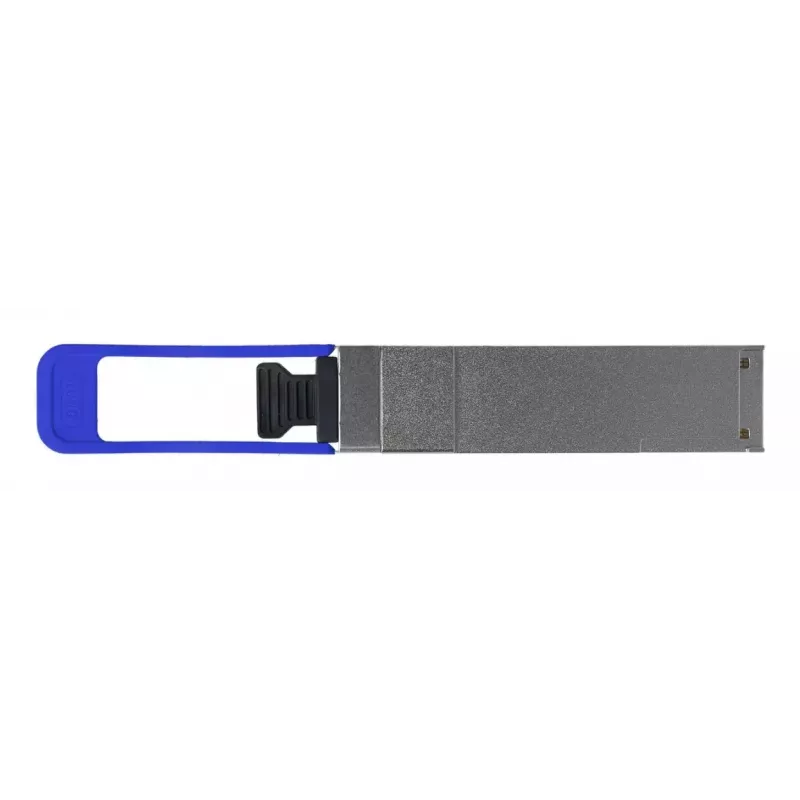

Módulo transceptor de fibra ótica BlueOptics CPAC-TR-100LR-BO QSFP28 LC

The BlueOptics CPAC-TR-100LR-BO QSFP28 LC is a fiber optic transceiver module designed for high-speed 100G data communication over single-mode fiber. Housed in an aluminium casing and weighing approximately 40 g, this QSFP28 module uses an LC duplex connector and follows MSA-compatible mechanical and electrical standards. It supports long-reach optical links and is intended for integration into network equipment platforms that accept QSFP28 LR4 form-factor transceivers.

Advantages

The transceiver provides a compact QSFP28 interface that enables up to 100 Gbps line rate while maintaining physical compatibility with devices that accept QSFP28 LR4 modules. Its aluminium housing offers mechanical durability and thermal stability. The LC connector and single‑mode fiber optics support long-distance transmission with low susceptibility to electromagnetic interference. The module’s standard form factor and interface type simplify installation and replacement in compatible networking hardware.

Suitable for

• High-speed uplinks between switches and routers
• Interconnecting data center racks over single-mode fiber
• Long-reach optical links in campus and metro networks
• High-bandwidth storage and backup connectivity

Key specifications

• Interface type: QSFP28
• Supported line rate: up to 100 Gbps (LR4 optics)
• Connector: LC duplex
• Fiber type: single-mode fiber
• Housing material: aluminium (product colour: aluminium)
• Weight: approx. 0.04 kg
• Typical reach: long-reach (LR4-class optical transmission)
• MSA-compliant mechanical and electrical form factor

How to use

Install the QSFP28 transceiver into a compatible QSFP28 slot on the network device following the vendor’s hot‑plug and handling guidelines. Connect LC duplex single‑mode fiber patch cords to the module’s LC connector, observing correct transmit/receive orientation. Ensure the host device firmware and hardware support LR4 QSFP28 optics and enable any required optical port configuration. Monitor link status via the host device management interface and verify optical power levels where necessary.

Recommendations

For reliable long-distance operation, use single-mode LC patch cords and compliant patch panels, verify that the network hardware supports LR4 QSFP28 modules, and confirm digital diagnostic/DOM support if remote optical monitoring is required. Follow electrostatic discharge (ESD) precautions during handling and keep dust caps on unused connectors to maintain optical performance.
