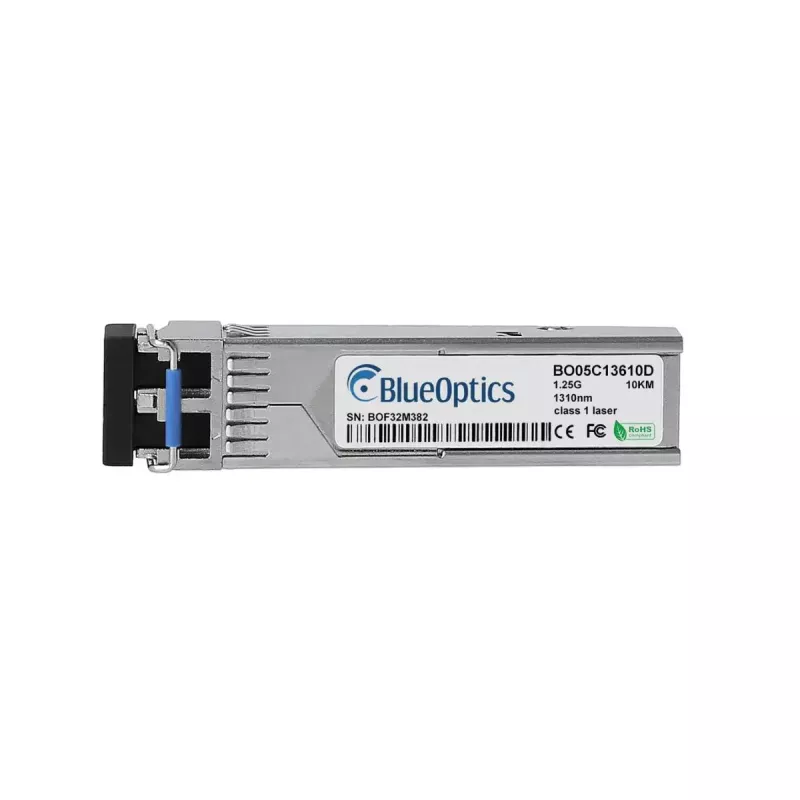

Módulo transceptor de fibra ótica BlueOptics GSLC10-DDM-BO SFP 10000 m

The BlueOptics GSLC10-DDM-BO SFP 10000 m is a single-port fiber optic transceiver module designed for single-mode long-distance links up to 10,000 meters. Housed in an aluminium casing and weighing approximately 20 g, the module implements the SFP interface and provides 1000BASE-LX class optical connectivity with LC duplex termination. The transceiver supports digital diagnostics monitoring (DDM/DOM) and is packaged as an individual unit for easy handling and installation.

Advantages

The module combines a compact SFP form factor with a metal enclosure for mechanical stability and thermal dissipation, making it suitable for rack-mounted and compact network equipment. Built to MSA-compatible specifications, it offers interoperability with hardware that supports standard 1000BASE-LX SFP modules. Integrated digital diagnostics enable real-time monitoring of key optical parameters to support remote troubleshooting and preventive maintenance.

Suitable for

• Long-distance single-mode Ethernet links up to 10 km
• Interconnection of switches, routers and storage systems using LC duplex fiber
• Network segments requiring DDM/DOM monitoring for link diagnostics

Key specifications

• Interface type: SFP (Small Form-factor Pluggable)
• Link type: Single-mode fiber, LC duplex connector
• Standard: 1000BASE-LX optical Ethernet
• Maximum reach: up to 10,000 m (10 km)
• Wavelength: 1310 nm transmit and receive
• Form factor material: aluminium casing
• Weight: approx. 0.02 kg
• Digital diagnostics monitoring (DDM/DOM): supported

How to use

Insert the BlueOptics SFP transceiver into a compatible SFP slot on network equipment while the device is powered down or following the equipment manufacturer's hot-swap instructions. Connect LC duplex single-mode fiber patch cords to the module making sure transmit and receive fibers are correctly aligned. Verify link status on the host device and, if available, access DDM/DOM registers to read real-time diagnostic values such as supply voltage, laser bias current, optical transmit/receive power and temperature.

Recommendations

Ensure the host device officially supports standard 1000BASE-LX SFP modules and the DDM/DOM function if diagnostics are required. Use high-quality single-mode patch cords and maintain clean connector endfaces to achieve the specified reach and reliable optical performance. Observe electrostatic discharge precautions during handling and follow the manufacturer's instructions for insertion and removal.
